ASMT-Rx45-xxxxx

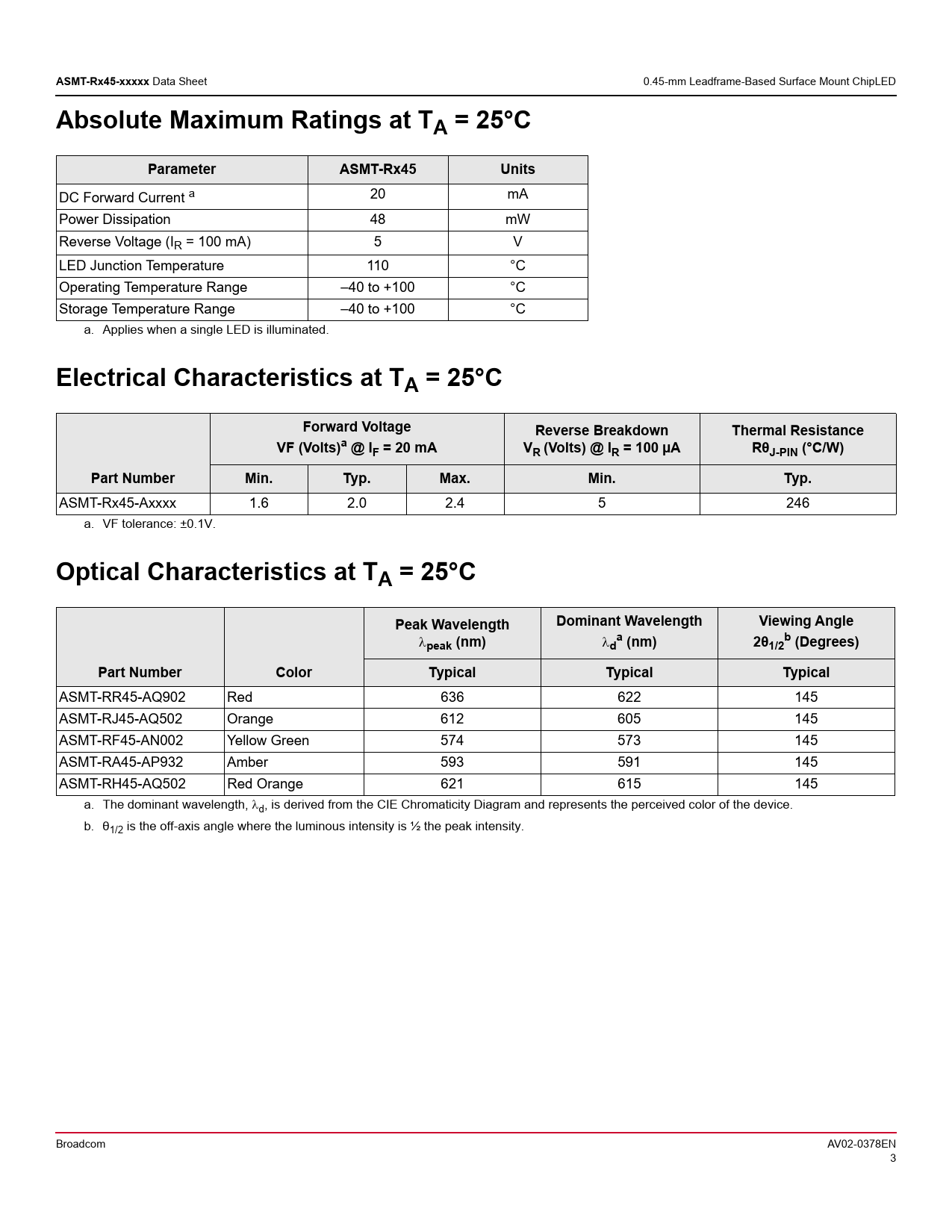

Data Sheet 0.45-mm Leadframe-Based Surface Mount ChipLED
Absolute Maximum Ratings at TA = 25°C Parameter ASMT-Rx45 Units
DC Forward Current a 20 mA Power Dissipation 48 mW Reverse Voltage (IR = 100 mA) 5 V LED Junction Temperature 110 °C Operating Temperature Range –40 to +100 °C Storage Temperature Range –40 to +100 °C a. Applies when a single LED is illuminated.
Electrical Characteristics at TA = 25°C Forward Voltage Reverse Breakdown Thermal Resistance VF (Volts)a @ IF = 20 mA VR (Volts) @ IR = 100 µA RθJ-PIN (°C/W) Part Number Min. Typ. Max. Min. Typ.
ASMT-Rx45-Axxxx 1.6 2.0 2.4 5 246 a. VF tolerance: ±0.1V.
Optical Characteristics at TA = 25°C Peak Wavelength Dominant Wavelength Viewing Angle a b peak (nm) d (nm) 2θ1/2 (Degrees) Part Number Color Typical Typical Typical
ASMT-RR45-AQ902 Red 636 622 145 ASMT-RJ45-AQ502 Orange 612 605 145 ASMT-RF45-AN002 Yellow Green 574 573 145 ASMT-RA45-AP932 Amber 593 591 145 ASMT-RH45-AQ502 Red Orange 621 615 145 a. The dominant wavelength, d, is derived from the CIE Chromaticity Diagram and represents the perceived color of the device. b. θ1/2 is the off-axis angle where the luminous intensity is ½ the peak intensity. Broadcom AV02-0378EN 3 Document Outline Description Features Applications Package Dimensions Device Selection Guide Part Numbering System Absolute Maximum Ratings at TA = 25°C Electrical Characteristics at TA = 25°C Optical Characteristics at TA = 25°C Intensity Bin Select (X3X4) Light Intensity (IV) Bin Limits Color Bin Select (X5) Packaging Option (X6) Forward Voltage (VF) Bin Limits Color Bin Limits Yellow Green Color Bin Yellow/Amber Color Bin Orange Color Bin Red Color Bin Red Orange Color Bin Moisture Sensitivity
