VV105. Outline Dimensions. Dimensions are in inches (mm). Tolerances: 2 Pl. + .03; 3 Pl. + .015. Notes:
Línea de modelo para esta hoja de datos
Versión de texto del documento

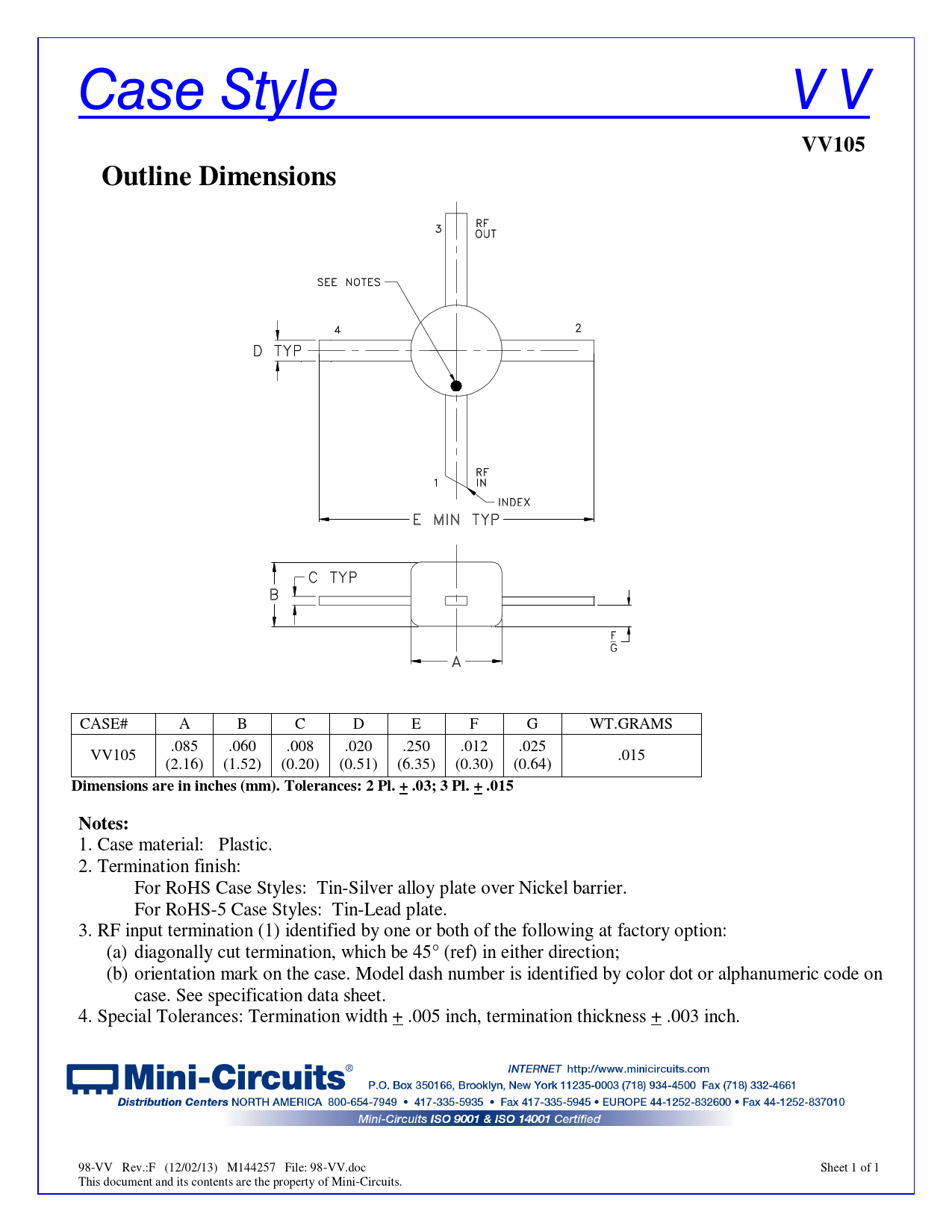

Case Style V V
VV105 Outline Dimensions
CASE# A B C D E F G WT.GRAMS .085 .060 .008 .020 .250 .012 .025 VV105 .015 (2.16) (1.52) (0.20) (0.51) (6.35) (0.30) (0.64)
Dimensions are in inches (mm). Tolerances: 2 Pl. + .03; 3 Pl. + .015 Notes:
1. Case material: Plastic. 2. Termination finish: For RoHS Case Styles: Tin-Silver alloy plate over Nickel barrier. For RoHS-5 Case Styles: Tin-Lead plate. 3. RF input termination (1) identified by one or both of the following at factory option: (a) diagonally cut termination, which be 45° (ref) in either direction; (b) orientation mark on the case. Model dash number is identified by color dot or alphanumeric code on case. See specification data sheet. 4. Special Tolerances: Termination width + .005 inch, termination thickness + .003 inch. 98-VV Rev.:F (12/02/13) M144257 File: 98-VV.doc Sheet 1 of 1 This document and its contents are the property of Mini-Circuits. Document Outline MAR-6+ Data Sheet View Data View Graphs Case Style Tape and Reel PCB Layout Eval Board Enviromental Ratings
