MMBZ5225 to MMBZ5267
www.vishay.com Vishay Semiconductors

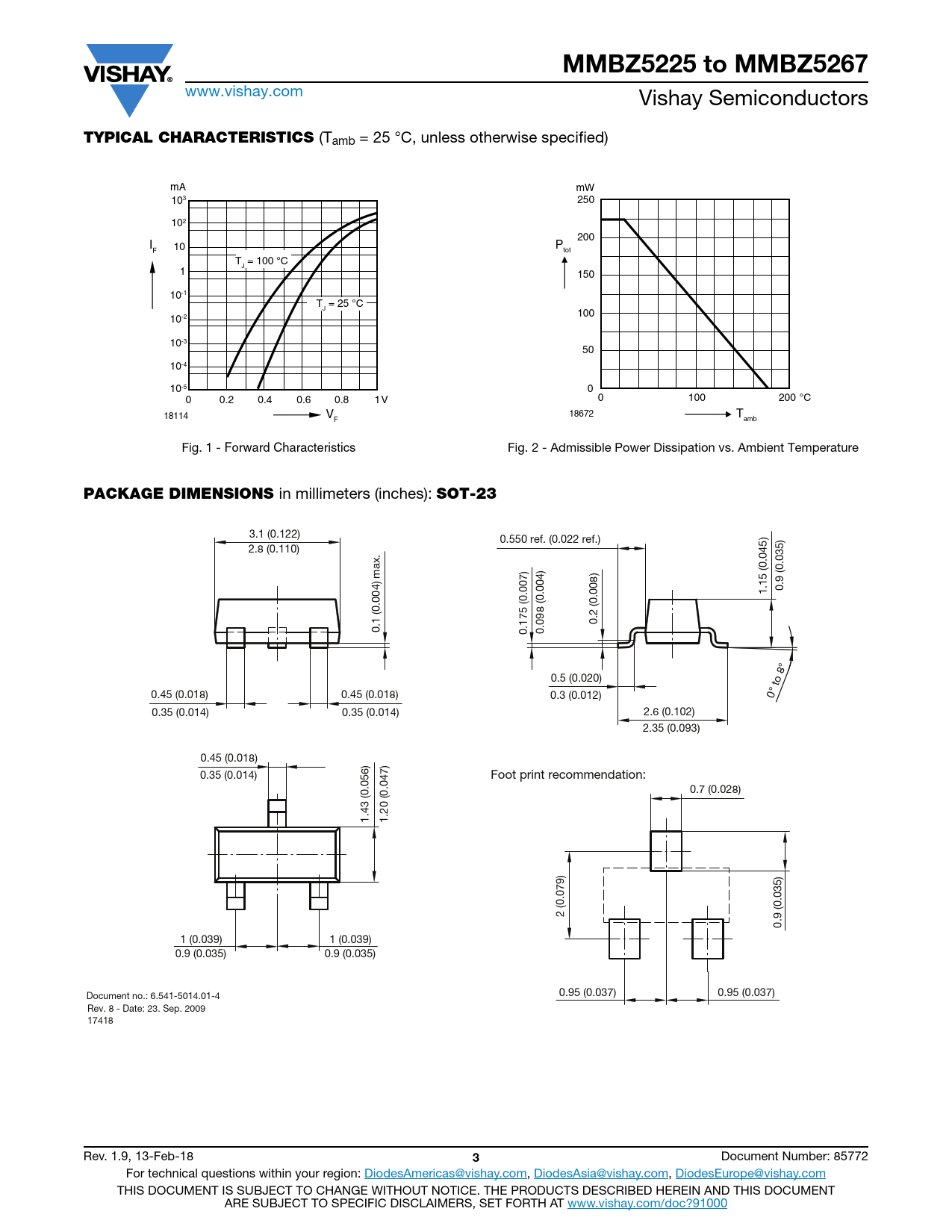

TYPICAL CHARACTERISTICS
(Tamb = 25 °C, unless otherwise specified) mA mW 103 250 102 200 I 10 P F tot T = 100 °C J 1 150 10-1 T = 25 °C J 100 10-2 10-3 50 10-4 10-5 0 0 0.2 0.4 0.6 0.8 1V 0 100 200 °C 18114 V 18672 T F amb Fig. 1 - Forward Characteristics Fig. 2 - Admissible Power Dissipation vs. Ambient Temperature
PACKAGE DIMENSIONS
in millimeters (inches):
SOT-23
3.1 (0.122) 0.550 ref. (0.022 ref.) 2.8 (0.110) 1.15 (0.045) 0.9 (0.035) 0.2 (0.008) 0.1 (0.004) max. 0.175 (0.007) 0.098 (0.004) 8° 0.5 (0.020) to 0.45 (0.018) 0.45 (0.018) 0.3 (0.012) 0° 0.35 (0.014) 0.35 (0.014) 2.6 (0.102) 2.35 (0.093) 0.45 (0.018) 0.35 (0.014) Foot print recommendation: 0.7 (0.028) 1.43 (0.056) 1.20 (0.047) 2 (0.079) 0.9 (0.035) 1 (0.039) 1 (0.039) 0.9 (0.035) 0.9 (0.035) Document no.: 6.541-5014.01-4 0.95 (0.037) 0.95 (0.037) Rev. 8 - Date: 23. Sep. 2009 17418 Rev. 1.9, 13-Feb-18
3
