Datasheet RTD120D (Renesas) - 2
| Fabricante | Renesas |
| Descripción | Silicon-Based Thermopile Detector 120 Dual |
| Páginas / Página | 5 / 2 — RTD120D Datasheet. 1. Specifications. Symbol. Parameter. Min. Typ. Max. … |
| Formato / tamaño de archivo | PDF / 4.5 Mb |
| Idioma del documento | Inglés |
RTD120D Datasheet. 1. Specifications. Symbol. Parameter. Min. Typ. Max. Unit. Comments[1]
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 2 link to page 2 link to page 2 link to page 2 link to page 3 link to page 3 link to page 2

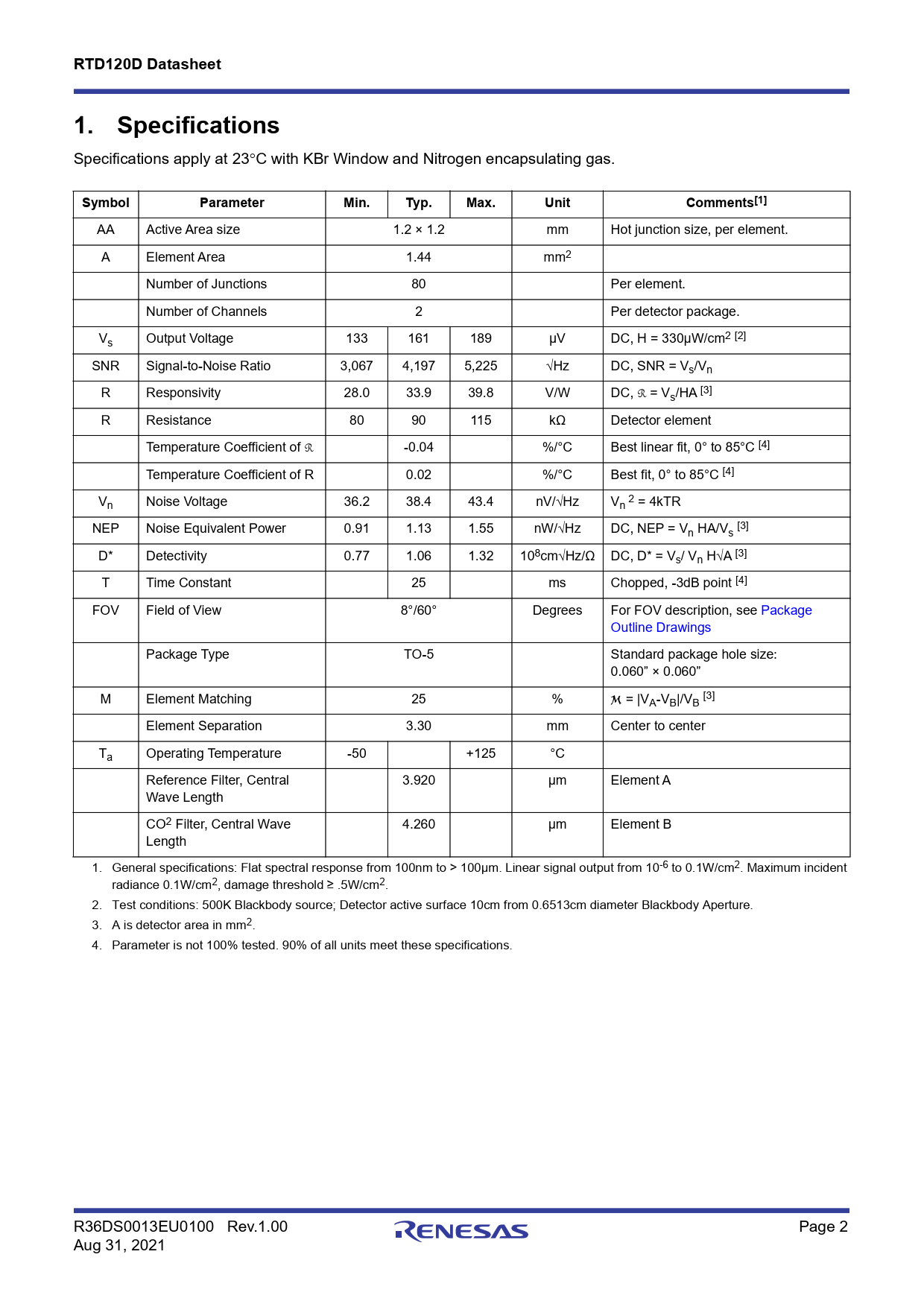

RTD120D Datasheet 1. Specifications
Specifications apply at 23C with KBr Window and Nitrogen encapsulating gas.
Symbol Parameter Min. Typ. Max. Unit Comments[1]
AA Active Area size 1.2 × 1.2 mm Hot junction size, per element. A Element Area 1.44 mm2 Number of Junctions 80 Per element. Number of Channels 2 Per detector package. Vs Output Voltage 133 161 189 µV DC, H = 330µW/cm2 [2] SNR Signal-to-Noise Ratio 3,067 4,197 5,225 √Hz DC, SNR = Vs/Vn R Responsivity 28.0 33.9 39.8 V/W DC, R = Vs/HA [3] R Resistance 80 90 115 kΩ Detector element Temperature Coef icient of R -0.04 %/°C Best linear fit, 0° to 85°C [4] Temperature Coef icient of R 0.02 %/°C Best fit, 0° to 85°C [4] V 2 n Noise Voltage 36.2 38.4 43.4 nV/√Hz Vn = 4kTR NEP Noise Equivalent Power 0.91 1.13 1.55 nW/√Hz DC, NEP = Vn HA/Vs [3] D* Detectivity 0.77 1.06 1.32 108cm√Hz/Ω DC, D* = Vs/ Vn H√A [3] T Time Constant 25 ms Chopped, -3dB point [4] FOV Field of View 8°/60° Degrees For FOV description, see Package Outline Drawings Package Type TO-5 Standard package hole size: 0.060” × 0.060” M Element Matching 25 % M = |VA-VB|/VB [3] Element Separation 3.30 mm Center to center Ta Operating Temperature -50 +125 °C Reference Filter, Central 3.920 µm Element A Wave Length CO2 Filter, Central Wave 4.260 µm Element B Length 1. General specifications: Flat spectral response from 100nm to > 100µm. Linear signal output from 10-6 to 0.1W/cm2. Maximum incident radiance 0.1W/cm2, damage threshold ≥ .5W/cm2. 2. Test conditions: 500K Blackbody source; Detector active surface 10cm from 0.6513cm diameter Blackbody Aperture. 3. A is detector area in mm2. 4. Parameter is not 100% tested. 90% of al units meet these specifications. R36DS0013EU0100 Rev.1.00 Page 2 Aug 31, 2021 Document Outline Image Diagram Detector Circuit Overlay Applications Features Benefits 1. Specifications 2. Package Outline Drawings 3. Ordering Information 4. Revision History
RTD120D Datasheet 1. Specifications
Specifications apply at 23C with KBr Window and Nitrogen encapsulating gas.
Symbol Parameter Min. Typ. Max. Unit Comments[1]
AA Active Area size 1.2 × 1.2 mm Hot junction size, per element. A Element Area 1.44 mm2 Number of Junctions 80 Per element. Number of Channels 2 Per detector package. Vs Output Voltage 133 161 189 µV DC, H = 330µW/cm2 [2] SNR Signal-to-Noise Ratio 3,067 4,197 5,225 √Hz DC, SNR = Vs/Vn R Responsivity 28.0 33.9 39.8 V/W DC, R = Vs/HA [3] R Resistance 80 90 115 kΩ Detector element Temperature Coef icient of R -0.04 %/°C Best linear fit, 0° to 85°C [4] Temperature Coef icient of R 0.02 %/°C Best fit, 0° to 85°C [4] V 2 n Noise Voltage 36.2 38.4 43.4 nV/√Hz Vn = 4kTR NEP Noise Equivalent Power 0.91 1.13 1.55 nW/√Hz DC, NEP = Vn HA/Vs [3] D* Detectivity 0.77 1.06 1.32 108cm√Hz/Ω DC, D* = Vs/ Vn H√A [3] T Time Constant 25 ms Chopped, -3dB point [4] FOV Field of View 8°/60° Degrees For FOV description, see Package Outline Drawings Package Type TO-5 Standard package hole size: 0.060” × 0.060” M Element Matching 25 % M = |VA-VB|/VB [3] Element Separation 3.30 mm Center to center Ta Operating Temperature -50 +125 °C Reference Filter, Central 3.920 µm Element A Wave Length CO2 Filter, Central Wave 4.260 µm Element B Length 1. General specifications: Flat spectral response from 100nm to > 100µm. Linear signal output from 10-6 to 0.1W/cm2. Maximum incident radiance 0.1W/cm2, damage threshold ≥ .5W/cm2. 2. Test conditions: 500K Blackbody source; Detector active surface 10cm from 0.6513cm diameter Blackbody Aperture. 3. A is detector area in mm2. 4. Parameter is not 100% tested. 90% of al units meet these specifications. R36DS0013EU0100 Rev.1.00 Page 2 Aug 31, 2021 Document Outline Image Diagram Detector Circuit Overlay Applications Features Benefits 1. Specifications 2. Package Outline Drawings 3. Ordering Information 4. Revision History
