Datasheet PVT412PbF (Infineon) - 4
| Fabricante | Infineon |
| Descripción | HEXFET Power MOSFET Photovoltaic Relay Single-Pole, Normally-Open, 0-400V, 140mA AC/DC |
| Páginas / Página | 6 / 4 — Figure 5. Typical Normalized Off-State Leakage. Figure 6. Input … |
| Formato / tamaño de archivo | PDF / 270 Kb |
| Idioma del documento | Inglés |

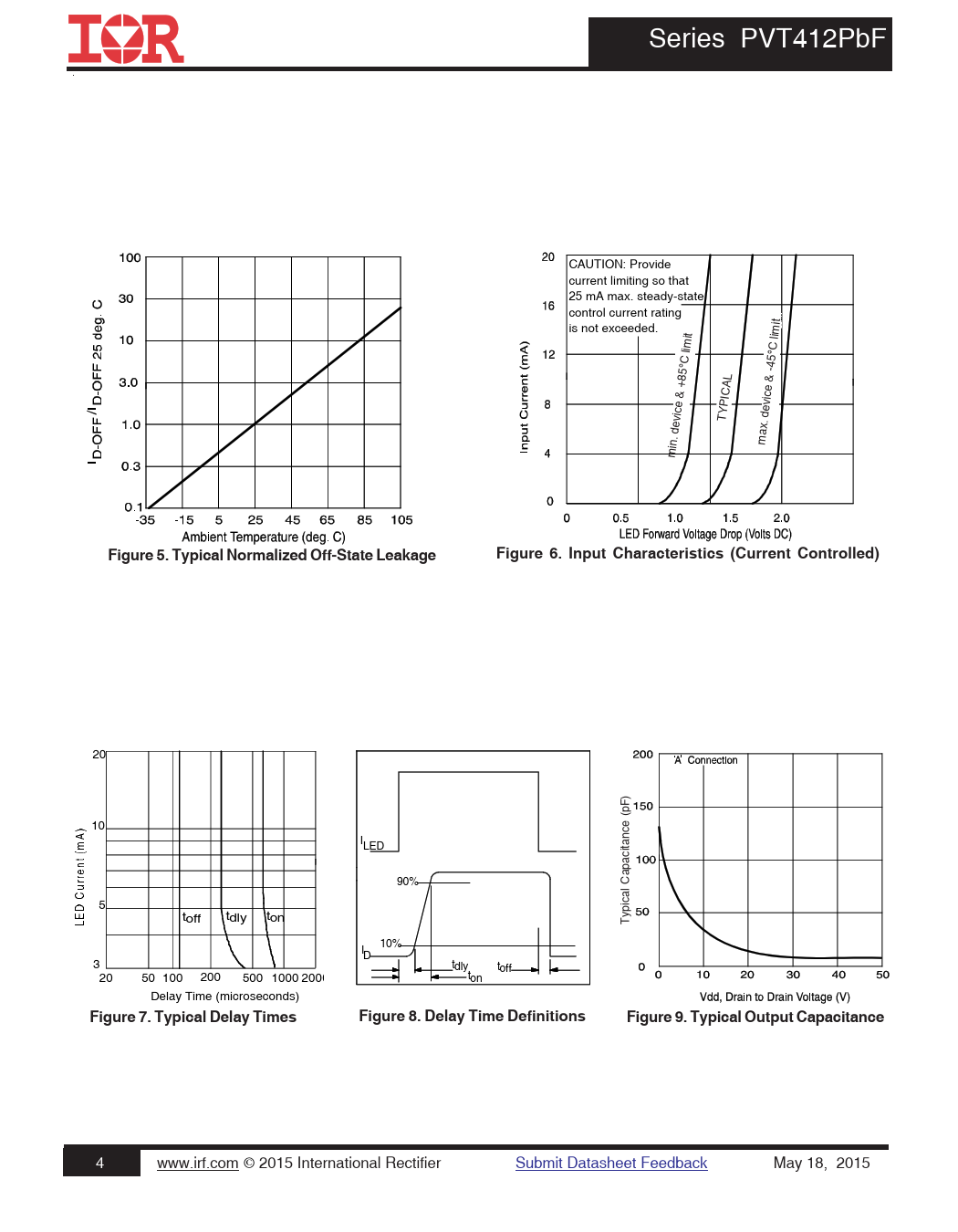

Figure 5. Typical Normalized Off-State Leakage. Figure 6. Input Characteristics (Current Controlled)
Línea de modelo para esta hoja de datos
Versión de texto del documento
Series PVT412PbF CAUTION: Provide current limiting so that 25 mA max. steady-state control current rating is not exceeded. TYPICAL max. device & -45°C limit min. device & +85°C limit
Figure 5. Typical Normalized Off-State Leakage Figure 6. Input Characteristics (Current Controlled)
20 10 ILED 90% 5 toff tdly ton Typical Capacitance (pF) 10% ID 3 tdly toff 20 50 100 200 500 1000 2000 ton Delay Time (microseconds)
Figure 7. Typical Delay Times Figure 8. Delay Time Definitions Figure 9. Typical Output Capacitance
