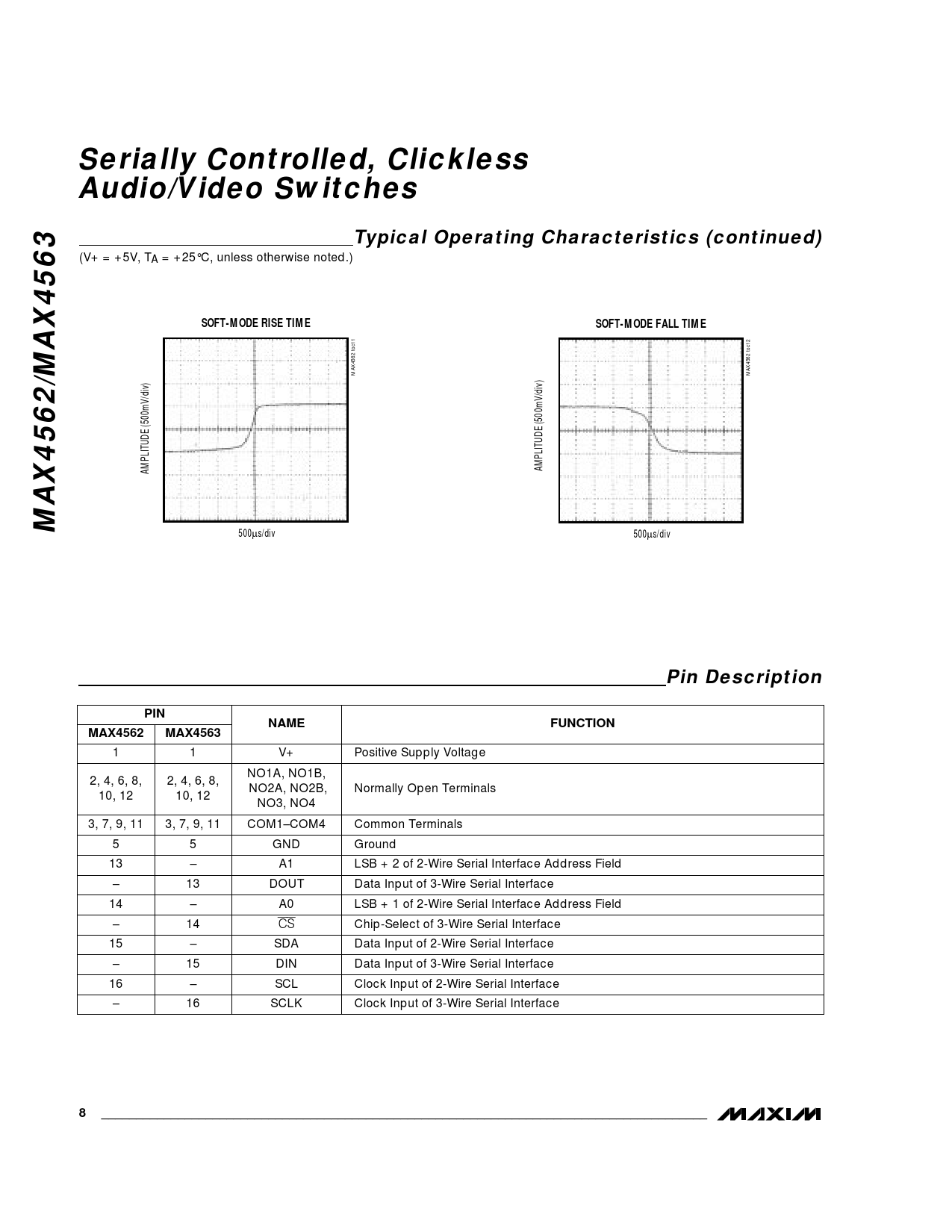

Datasheet MAX4562, MAX4563 (Maxim) - 8

Serially Controlled, Clickless Audio/Video Switches Typical Operating Characteristics (continued)
(V+ = +5V, TA = +25°C, unless otherwise noted.)
SOFT-MODE RISE TIME SOFT-MODE FALL TIME
MAX4562 toc11 MAX4562 toc12 AMPLITUDE (500mV/div) AMPLITUDE (500mV/div)
MAX4562/MAX4563
500µs/div 500µs/div
Pin Description PIN NAME FUNCTION MAX4562 MAX4563
1 1 V+ Positive Supply Voltage NO1A, NO1B, 2, 4, 6, 8, 2, 4, 6, 8, NO2A, NO2B, Normally Open Terminals 10, 12 10, 12 NO3, NO4 3, 7, 9, 11 3, 7, 9, 11 COM1–COM4 Common Terminals 5 5 GND Ground 13 – A1 LSB + 2 of 2-Wire Serial Interface Address Field – 13 DOUT Data Input of 3-Wire Serial Interface 14 – A0 LSB + 1 of 2-Wire Serial Interface Address Field – 14 CS Chip-Select of 3-Wire Serial Interface 15 – SDA Data Input of 2-Wire Serial Interface – 15 DIN Data Input of 3-Wire Serial Interface 16 – SCL Clock Input of 2-Wire Serial Interface – 16 SCLK Clock Input of 3-Wire Serial Interface
8 _______________________________________________________________________________________
