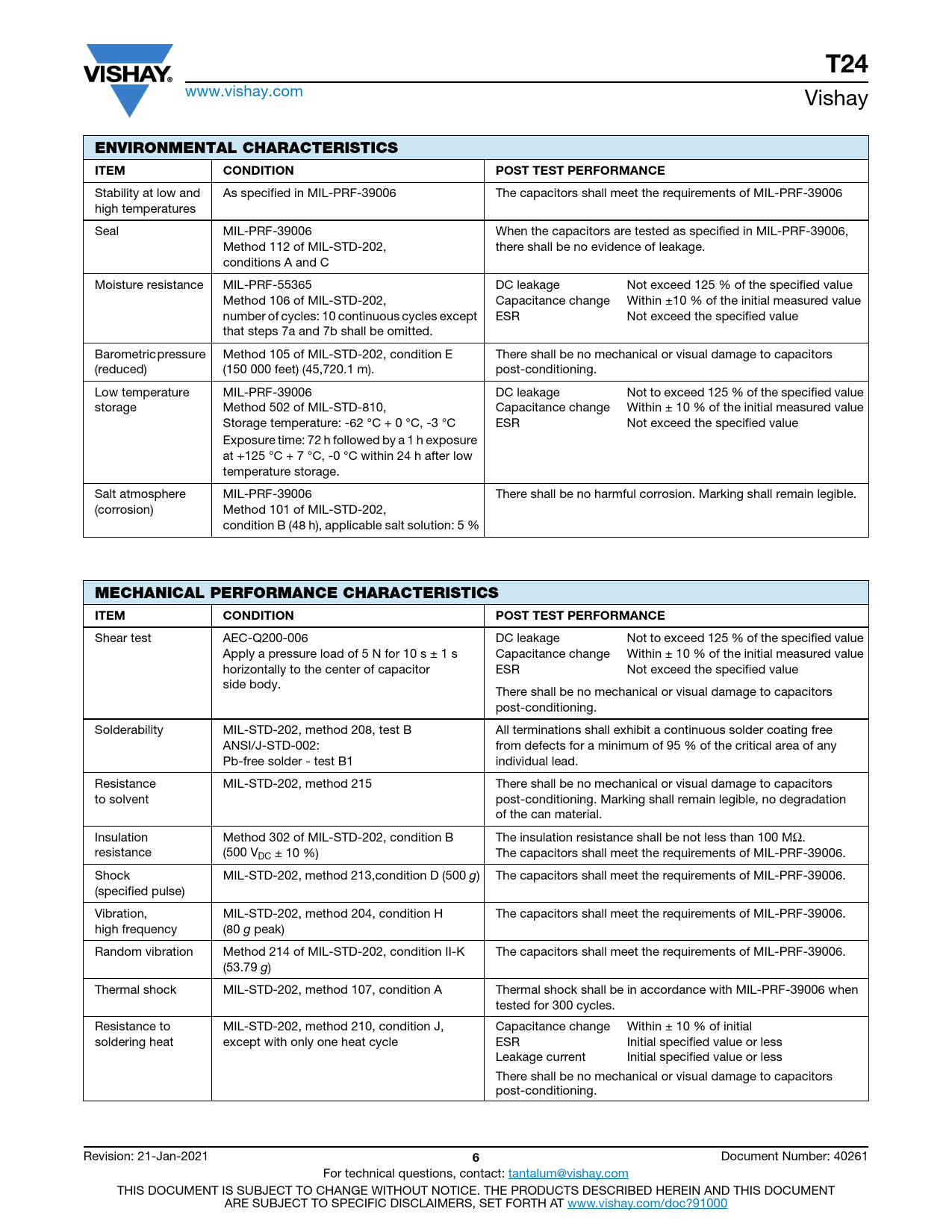

Datasheet T24 (Vishay) - 6

T24
www.vishay.com Vishay
ENVIRONMENTAL CHARACTERISTICS ITEM CONDITION POST TEST PERFORMANCE
Stability at low and As specified in MIL-PRF-39006 The capacitors shall meet the requirements of MIL-PRF-39006 high temperatures Seal MIL-PRF-39006 When the capacitors are tested as specified in MIL-PRF-39006, Method 112 of MIL-STD-202, there shall be no evidence of leakage. conditions A and C Moisture resistance MIL-PRF-55365 DC leakage Not exceed 125 % of the specified value Method 106 of MIL-STD-202, Capacitance change Within ±10 % of the initial measured value number of cycles: 10 continuous cycles except ESR Not exceed the specified value that steps 7a and 7b shall be omitted. Barometric pressure Method 105 of MIL-STD-202, condition E There shall be no mechanical or visual damage to capacitors (reduced) (150 000 feet) (45,720.1 m). post-conditioning. Low temperature MIL-PRF-39006 DC leakage Not to exceed 125 % of the specified value storage Method 502 of MIL-STD-810, Capacitance change Within ± 10 % of the initial measured value Storage temperature: -62 °C + 0 °C, -3 °C ESR Not exceed the specified value Exposure time: 72 h followed by a 1 h exposure at +125 °C + 7 °C, -0 °C within 24 h after low temperature storage. Salt atmosphere MIL-PRF-39006 There shall be no harmful corrosion. Marking shall remain legible. (corrosion) Method 101 of MIL-STD-202, condition B (48 h), applicable salt solution: 5 %
MECHANICAL PERFORMANCE CHARACTERISTICS ITEM CONDITION POST TEST PERFORMANCE
Shear test AEC-Q200-006 DC leakage Not to exceed 125 % of the specified value Apply a pressure load of 5 N for 10 s ± 1 s Capacitance change Within ± 10 % of the initial measured value horizontally to the center of capacitor ESR Not exceed the specified value side body. There shall be no mechanical or visual damage to capacitors post-conditioning. Solderability MIL-STD-202, method 208, test B All terminations shall exhibit a continuous solder coating free ANSI/J-STD-002: from defects for a minimum of 95 % of the critical area of any Pb-free solder - test B1 individual lead. Resistance MIL-STD-202, method 215 There shall be no mechanical or visual damage to capacitors to solvent post-conditioning. Marking shall remain legible, no degradation of the can material. Insulation Method 302 of MIL-STD-202, condition B The insulation resistance shall be not less than 100 MΩ. resistance (500 VDC ± 10 %) The capacitors shall meet the requirements of MIL-PRF-39006. Shock MIL-STD-202, method 213,condition D (500 g) The capacitors shall meet the requirements of MIL-PRF-39006. (specified pulse) Vibration, MIL-STD-202, method 204, condition H The capacitors shall meet the requirements of MIL-PRF-39006. high frequency (80 g peak) Random vibration Method 214 of MIL-STD-202, condition II-K The capacitors shall meet the requirements of MIL-PRF-39006. (53.79 g) Thermal shock MIL-STD-202, method 107, condition A Thermal shock shall be in accordance with MIL-PRF-39006 when tested for 300 cycles. Resistance to MIL-STD-202, method 210, condition J, Capacitance change Within ± 10 % of initial soldering heat except with only one heat cycle ESR Initial specified value or less Leakage current Initial specified value or less There shall be no mechanical or visual damage to capacitors post-conditioning. Revision: 21-Jan-2021
6
