Datasheet AOZ5273QI (Alpha & Omega)
| Fabricante | Alpha & Omega |
| Descripción | High-Current, High-Performance Smart Power Stage |
| Páginas / Página | 6 / 1 — AOZ5273QI. High-Current, High-Performance. Smart Power Stage. General … |
| Formato / tamaño de archivo | PDF / 1.4 Mb |
| Idioma del documento | Inglés |

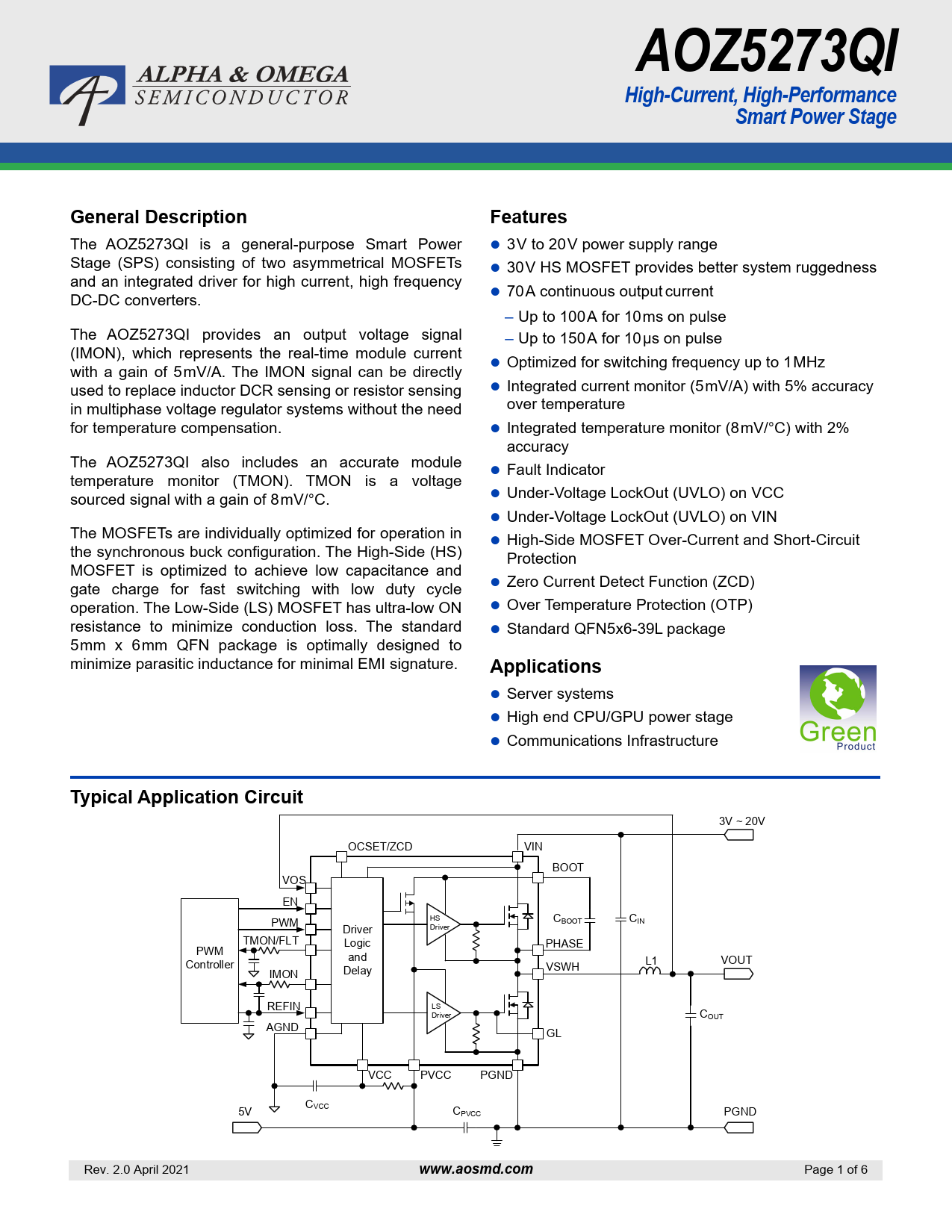

AOZ5273QI. High-Current, High-Performance. Smart Power Stage. General Description. Features. Applications
Línea de modelo para esta hoja de datos
Versión de texto del documento
AOZ5273QI High-Current, High-Performance Smart Power Stage General Description Features
The AOZ5273QI is a general-purpose Smart Power 3V to 20V power supply range Stage (SPS) consisting of two asymmetrical MOSFETs 30V HS MOSFET provides better system ruggedness and an integrated driver for high current, high frequency 70A continuous output current DC-DC converters. – Up to 100A for 10ms on pulse The AOZ5273QI provides an output voltage signal – Up to 150A for 10µs on pulse (IMON), which represents the real-time module current Optimized for switching frequency up to 1MHz with a gain of 5mV/A. The IMON signal can be directly used to replace inductor DCR sensing or resistor sensing Integrated current monitor (5mV/A) with 5% accuracy in multiphase voltage regulator systems without the need over temperature for temperature compensation. Integrated temperature monitor (8mV/°C) with 2% accuracy The AOZ5273QI also includes an accurate module Fault Indicator temperature monitor (TMON). TMON is a voltage sourced signal with a gain of 8mV/°C. Under-Voltage LockOut (UVLO) on VCC Under-Voltage LockOut (UVLO) on VIN The MOSFETs are individually optimized for operation in High-Side MOSFET Over-Current and Short-Circuit the synchronous buck configuration. The High-Side (HS) Protection MOSFET is optimized to achieve low capacitance and gate charge for fast switching with low duty cycle Zero Current Detect Function (ZCD) operation. The Low-Side (LS) MOSFET has ultra-low ON Over Temperature Protection (OTP) resistance to minimize conduction loss. The standard Standard QFN5x6-39L package 5mm x 6mm QFN package is optimally designed to minimize parasitic inductance for minimal EMI signature.
Applications
Server systems High end CPU/GPU power stage Communications Infrastructure
Typical Application Circuit
3V ~ 20V OCSET/ZCD VIN BOOT VOS EN PWM HS CBOOT CIN Driver Driver TMON/FLT Logic PHASE PWM and Control er VSWH L1 VOUT Delay IMON REFIN LS Driver COUT AGND GL VCC PVCC PGND C 5V VCC CPVCC PGND Rev. 2.0 April 2021
www.aosmd.com
Page 1 of 6
