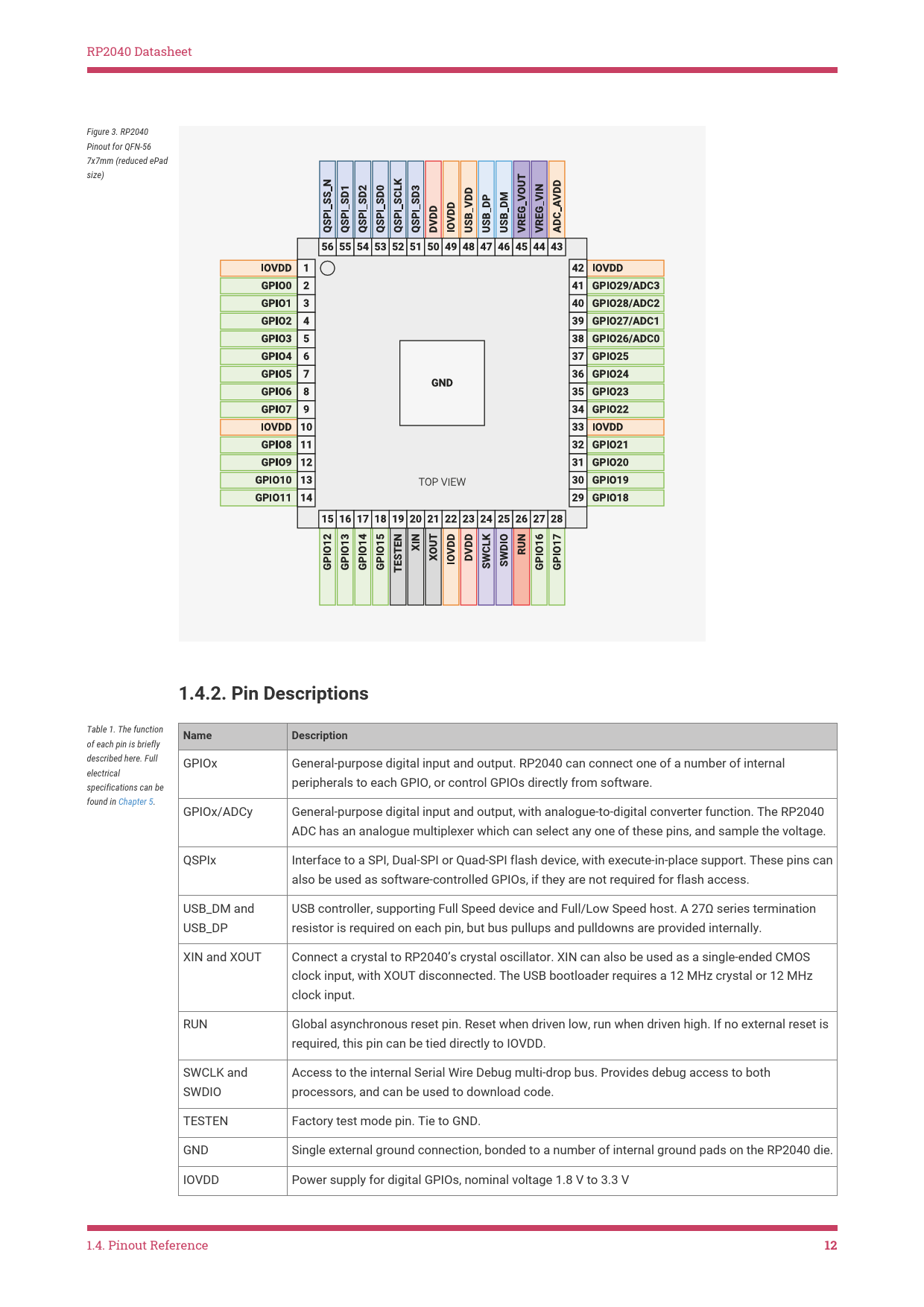

link to page 627 RP2040 Datasheet Figure 3. RP2040 Pinout for QFN-56 7x7mm (reduced ePad size)
1.4.2. Pin Descriptions
Table 1. The function
Name Description
of each pin is briefly described here. Full GPIOx General-purpose digital input and output. RP2040 can connect one of a number of internal electrical specifications can be peripherals to each GPIO, or control GPIOs directly from software. found in Chapter 5. GPIOx/ADCy General-purpose digital input and output, with analogue-to-digital converter function. The RP2040 ADC has an analogue multiplexer which can select any one of these pins, and sample the voltage. QSPIx Interface to a SPI, Dual-SPI or Quad-SPI flash device, with execute-in-place support. These pins can also be used as software-controlled GPIOs, if they are not required for flash access. USB_DM and USB controller, supporting Full Speed device and Full/Low Speed host. A 27Ω series termination USB_DP resistor is required on each pin, but bus pullups and pulldowns are provided internally. XIN and XOUT Connect a crystal to RP2040’s crystal oscillator. XIN can also be used as a single-ended CMOS clock input, with XOUT disconnected. The USB bootloader requires a 12 MHz crystal or 12 MHz clock input. RUN Global asynchronous reset pin. Reset when driven low, run when driven high. If no external reset is required, this pin can be tied directly to IOVDD. SWCLK and Access to the internal Serial Wire Debug multi-drop bus. Provides debug access to both SWDIO processors, and can be used to download code. TESTEN Factory test mode pin. Tie to GND. GND Single external ground connection, bonded to a number of internal ground pads on the RP2040 die. IOVDD Power supply for digital GPIOs, nominal voltage 1.8 V to 3.3 V 1.4. Pinout Reference
