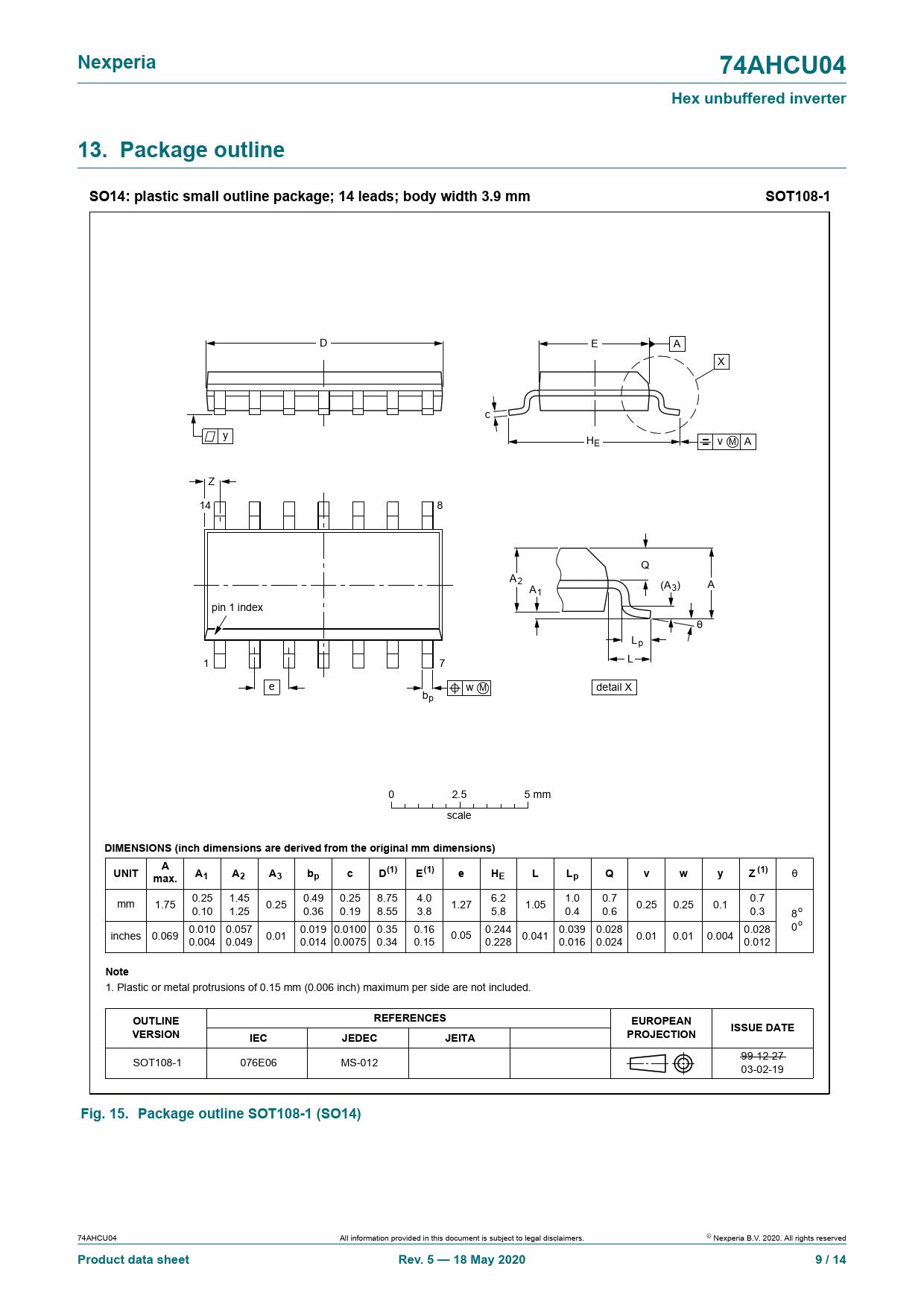

Nexperia 74AHCU04 Hex unbuffered inverter 13. Package outline SO14: plastic smal outline package; 14 leads; body width 3.9 mm SOT108-1
D E A X c y H E v M A Z 14 8 Q A 2 (A 3) A A 1 pin 1 index θ L p L 1 7 e w M detail X b p 0 2.5 5 mm scale
DIMENSIONS (inch dimensions are derived from the original mm dimensions) UNIT A max. A 1 A 2 A 3 b p c D (1) E (1) (1) e H E L L p Q v w y Z
θ mm 1.75 0.25 1.45 0.25 8.75 4.0 1.0 0.7 0.7 0.10 1.25 0.25 0.49 0.36 0.19 8.55 3.8 1.27 6.2 5.8 1.05 0.4 0.6 0.25 0.25 0.1 0.3 8 o 0.057 0.0100 0.35 0.16 0.244 0.039 0.028 0.028 0 o inches 0.069 0.010 0.004 0.049 0.01 0.019 0.014 0.0075 0.34 0.15 0.05 0.041 0.228 0.016 0.024 0.01 0.01 0.004 0.012
Note
1. Plastic or metal protrusions of 0.15 mm (0.006 inch) maximum per side are not included.
REFERENCES OUTLINE EUROPEAN VERSION PROJECTION ISSUE DATE IEC JEDEC JEITA
SOT108-1 076E06 MS-012 99-12-27 03-02-19
Fig. 15. Package outline SOT108-1 (SO14)
74AHCU04 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet Rev. 5 — 18 May 2020 9 / 14
