ESDCAN03-2BM3Y. Packing information. 2.2. Figure 16. Marking. Figure 17. Package orientation in reel
Línea de modelo para esta hoja de datos
Versión de texto del documento

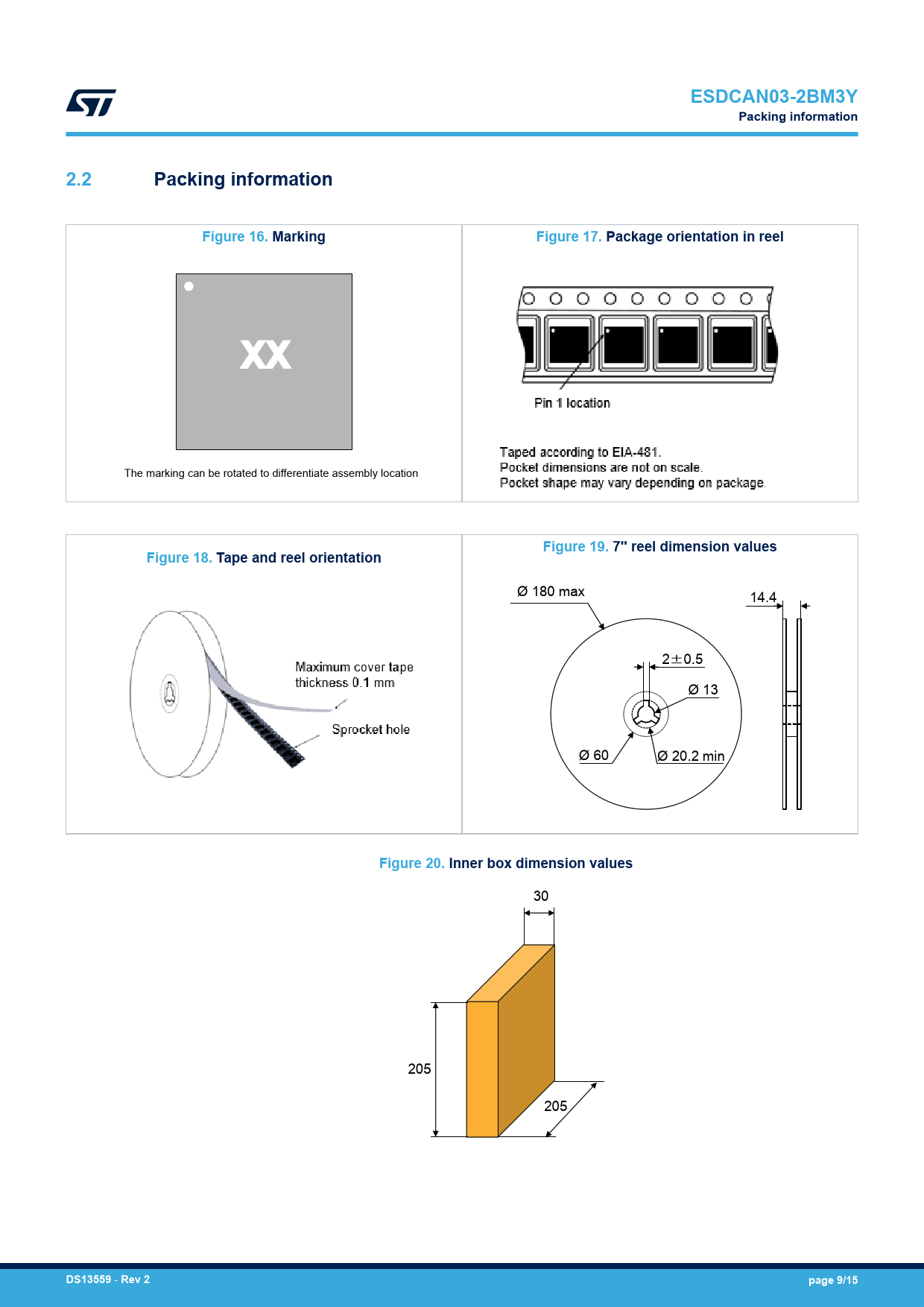

ESDCAN03-2BM3Y Packing information 2.2 Packing information Figure 16. Marking Figure 17. Package orientation in reel XX
The marking can be rotated to differentiate assembly location
Figure 19. 7'' reel dimension values Figure 18. Tape and reel orientation
Ø 180 max 14.4 2±0.5 Ø 13 Ø 60 Ø 20.2 min
Figure 20. Inner box dimension values
30 205 205
DS13559
-
Rev 2 page 9/15
