TL331, TL331B, TL391B www.ti.com
SLVS238J – AUGUST 1999 – REVISED NOVEMBER 2020
TL331, TL331B, TL391B
SLVS238J – AUGUST 1999 – REVISED NOVEMBER 2020

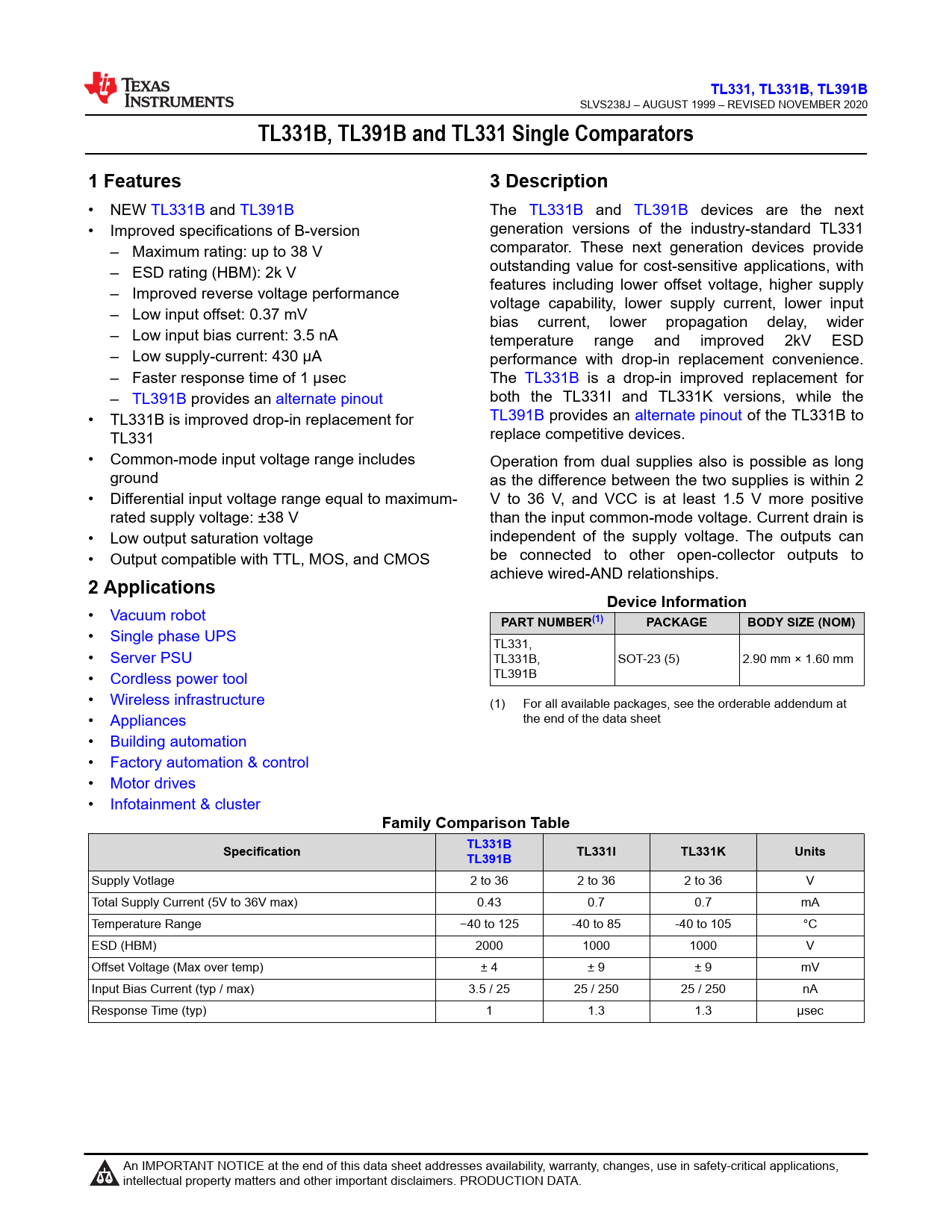

TL331B, TL391B and TL331 Single Comparators 1 Features 3 Description
• NEW TL331B and TL391B The TL331B and TL391B devices are the next • Improved specifications of B-version generation versions of the industry-standard TL331 – Maximum rating: up to 38 V comparator. These next generation devices provide – ESD rating (HBM): 2k V outstanding value for cost-sensitive applications, with features including lower offset voltage, higher supply – Improved reverse voltage performance voltage capability, lower supply current, lower input – Low input offset: 0.37 mV bias current, lower propagation delay, wider – Low input bias current: 3.5 nA temperature range and improved 2kV ESD – Low supply-current: 430 µA performance with drop-in replacement convenience. – Faster response time of 1 µsec The TL331B is a drop-in improved replacement for – TL391B provides an alternate pinout both the TL331I and TL331K versions, while the • TL331B is improved drop-in replacement for TL391B provides an alternate pinout of the TL331B to TL331 replace competitive devices. • Common-mode input voltage range includes Operation from dual supplies also is possible as long ground as the difference between the two supplies is within 2 • Differential input voltage range equal to maximum- V to 36 V, and VCC is at least 1.5 V more positive rated supply voltage: ±38 V than the input common-mode voltage. Current drain is • Low output saturation voltage independent of the supply voltage. The outputs can • Output compatible with TTL, MOS, and CMOS be connected to other open-collector outputs to achieve wired-AND relationships.
2 Applications Device Information
• Vacuum robot
PART NUMBER(1) PACKAGE BODY SIZE (NOM)
• Single phase UPS TL331, • Server PSU TL331B, SOT-23 (5) 2.90 mm × 1.60 mm • Cordless power tool TL391B • Wireless infrastructure (1) For all available packages, see the orderable addendum at • Appliances the end of the data sheet • Building automation • Factory automation & control • Motor drives • Infotainment & cluster
Family Comparison Table TL331B Specification TL331I TL331K Units TL391B
Supply Votlage 2 to 36 2 to 36 2 to 36 V Total Supply Current (5V to 36V max) 0.43 0.7 0.7 mA Temperature Range −40 to 125 -40 to 85 -40 to 105 °C ESD (HBM) 2000 1000 1000 V Offset Voltage (Max over temp) ± 4 ± 9 ± 9 mV Input Bias Current (typ / max) 3.5 / 25 25 / 250 25 / 250 nA Response Time (typ) 1 1.3 1.3 µsec Copyright © 2020 Texas Instruments Incorporated An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty Submit Document Feedback , changes, use in safety-critical applications, 1 intellectual property matters and other important disclaimers. PRODUCTION DATA. Product Folder Links: TL331 TL331B TL391B Document Outline 1 Features 2 Applications 3 Description Table of Contents 4 Revision History 5 Pin Configuration and Functions Pin Functions 6 Specifications 6.1 Absolute Maximum Ratings, TL331 and TL331K 6.2 Absolute Maximum Ratings, TL331B and TL391B 6.3 ESD Ratings, TL331 and TL331K 6.4 ESD Ratings, TL331B and TL391B 6.5 Recommended Operating Conditions, TL331 and TL331K 6.6 Recommended Operating Conditions, TL331B and TL391B 6.7 Thermal Information 6.8 Electrical Characteristics, TL331B and TL391B 6.9 Switching Characteristics, TL331B and TL391B 6.10 Electrical Characteristics, TL331 and TL331K 6.11 Switching Characteristics, TL331 and TL331K 6.12 Typical Characteristics, TL331 and TL331K 6.13 Typical Characteristics, TL331B and TL391B 7 Detailed Description 7.1 Overview 7.2 Functional Block Diagram 7.3 Feature Description 7.4 Device Functional Modes 7.4.1 Voltage Comparison 8 Application and Implementation 8.1 Application Information 8.2 Typical Application 8.2.1 Design Requirements 8.2.2 Detailed Design Procedure 8.2.2.1 Input Voltage Range 8.2.2.2 Minimum Overdrive Voltage 8.2.2.3 Output and Drive Current 8.2.2.4 TL331B & TL391B ESD Protection 8.2.2.5 Response Time 8.2.3 Application Curves 9 Power Supply Recommendations 10 Layout 10.1 Layout Guidelines 10.2 Layout Example 11 Device and Documentation Support 11.1 Documentation Support 11.1.1 Related Documentation 11.2 Receiving Notification of Documentation Updates 11.3 Support Resources 11.4 Trademarks 11.5 Electrostatic Discharge Caution 11.6 Glossary 12 Mechanical, Packaging, and Orderable Information
