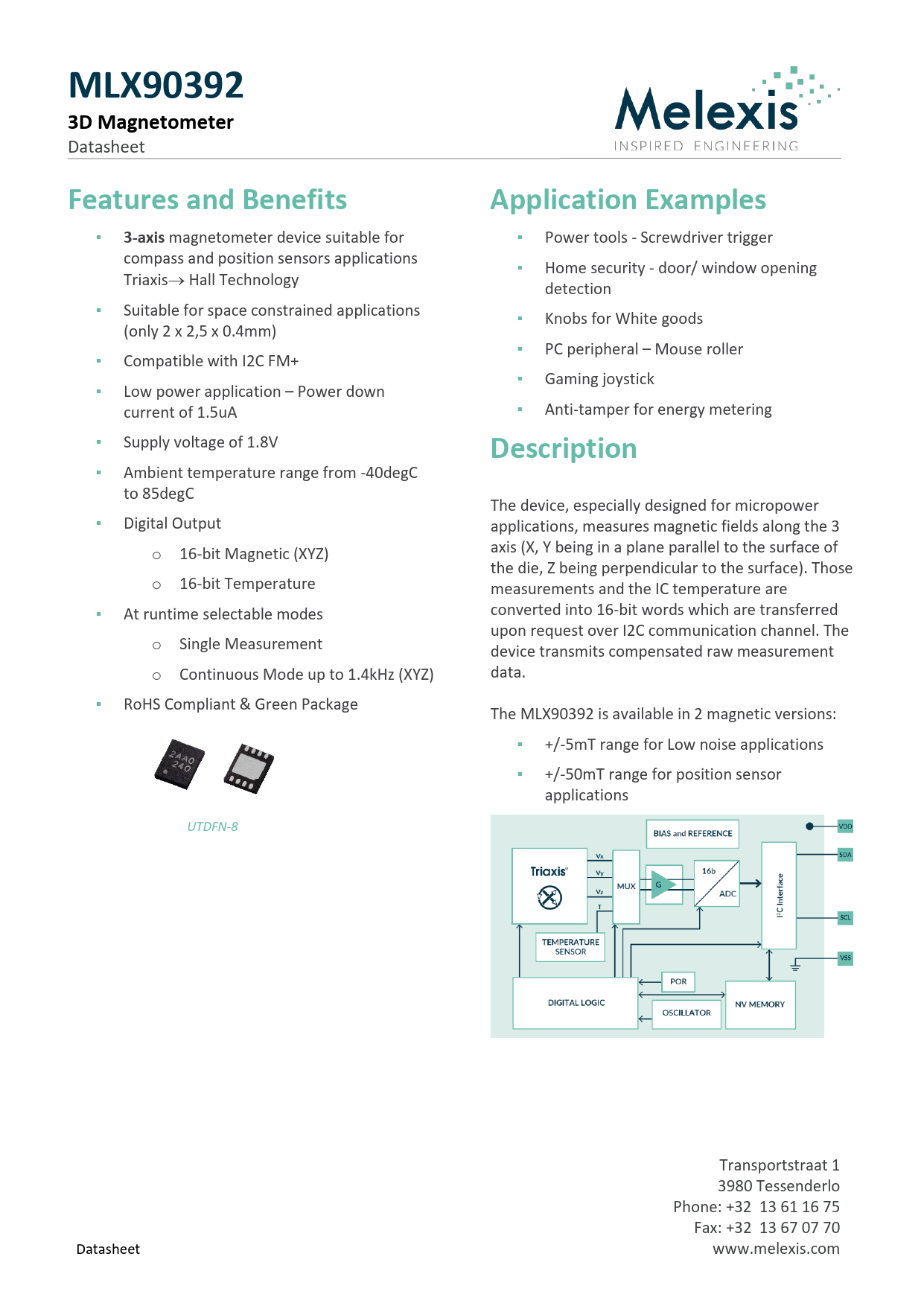

Datasheet MLX90392 (Melexis)

MLX90392 3D Magnetometer
Datasheet
Features and Benefits Application Examples
▪
3-axis
magnetometer device suitable for ▪ Power tools - Screwdriver trigger compass and position sensors applications ▪ Home security - door/ window opening Triaxis Hall Technology detection ▪ Suitable for space constrained applications ▪ Knobs for White goods (only 2 x 2,5 x 0.4mm) ▪ PC peripheral – Mouse roller ▪ Compatible with I2C FM+ ▪ Gaming joystick ▪ Low power application – Power down current of 1.5uA ▪ Anti-tamper for energy metering ▪ Supply voltage of 1.8V
Description
▪ Ambient temperature range from -40degC to 85degC The device, especially designed for micropower ▪ Digital Output applications, measures magnetic fields along the 3 o 16-bit Magnetic (XYZ) axis (X, Y being in a plane parallel to the surface of the die, Z being perpendicular to the surface). Those o 16-bit Temperature measurements and the IC temperature are ▪ At runtime selectable modes converted into 16-bit words which are transferred upon request over I2C communication channel. The o Single Measurement device transmits compensated raw measurement o Continuous Mode up to 1.4kHz (XYZ) data. ▪ RoHS Compliant & Green Package The MLX90392 is available in 2 magnetic versions: ▪ +/-5mT range for Low noise applications ▪ +/-50mT range for position sensor applications UTDFN-8 Transportstraat 1 3980 Tessenderlo Phone: +32 13 61 16 75 Fax: +32 13 67 07 70 Datasheet www.melexis.com
