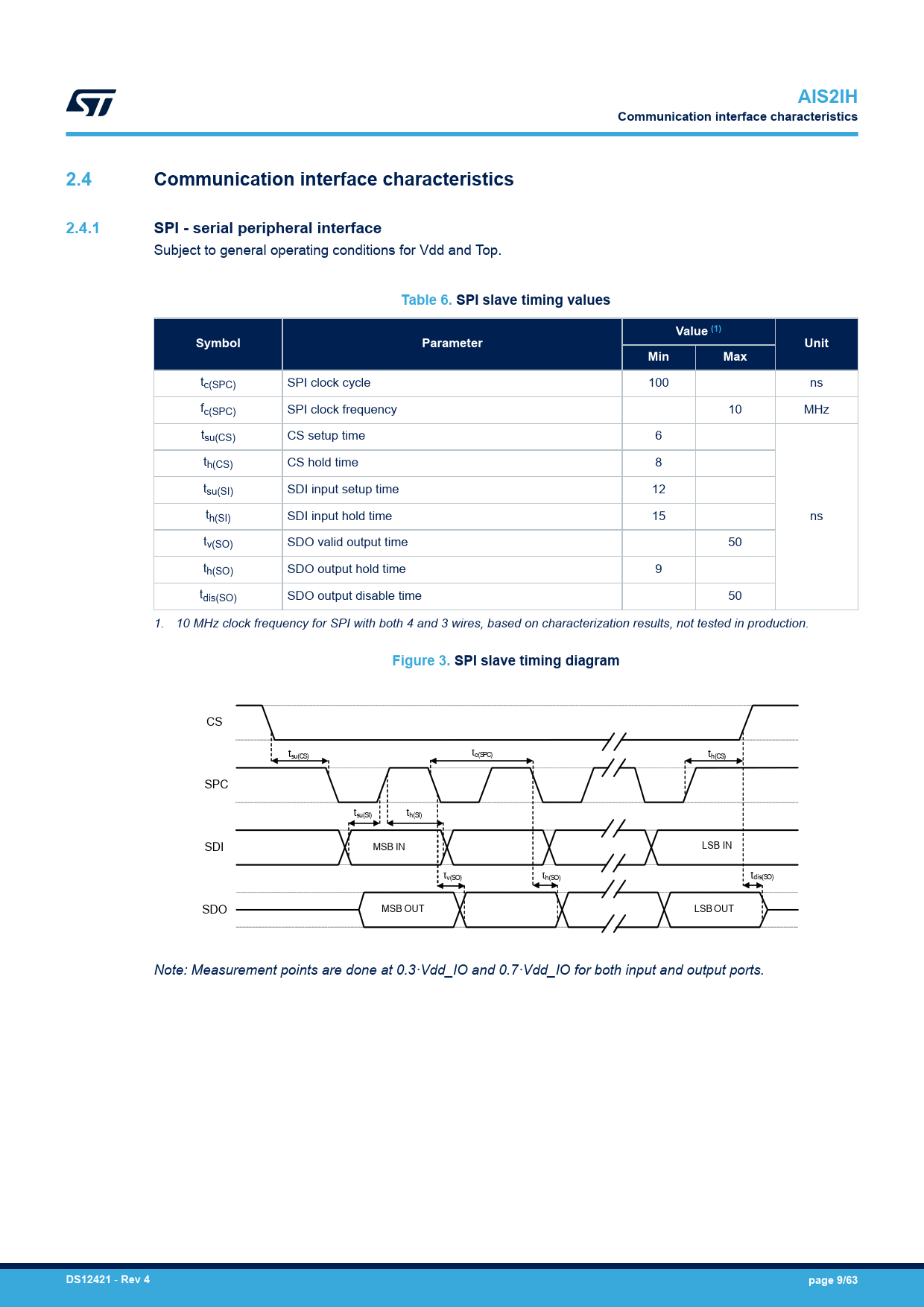

AIS2IH Communication interface characteristics 2.4 Communication interface characteristics 2.4.1 SPI - serial peripheral interface
Subject to general operating conditions for Vdd and Top.
Table 6. SPI slave timing values Value (1) Symbol Parameter Unit Min Max
tc(SPC) SPI clock cycle 100 ns fc(SPC) SPI clock frequency 10 MHz tsu(CS) CS setup time 6 th(CS) CS hold time 8 tsu(SI) SDI input setup time 12 th(SI) SDI input hold time 15 ns tv(SO) SDO valid output time 50 th(SO) SDO output hold time 9 tdis(SO) SDO output disable time 50 1. 10 MHz clock frequency for SPI with both 4 and 3 wires, based on characterization results, not tested in production.
Figure 3. SPI slave timing diagram
CS t t su(CS) c(SPC) th(CS) SPC tsu(SI) th(SI) SDI MSB IN LSB IN tv(SO) th(SO) tdis(SO) SDO MSB OUT LSB OUT Note: Measurement points are done at 0.3·Vdd_IO and 0.7·Vdd_IO for both input and output ports.
DS12421
-
Rev 4 page 9/63
