Electrical Characteristics. PARAMETER. SYMBOL. CONDITIONS. MIN. TYP. MAX. UNITS
Línea de modelo para esta hoja de datos
Versión de texto del documento

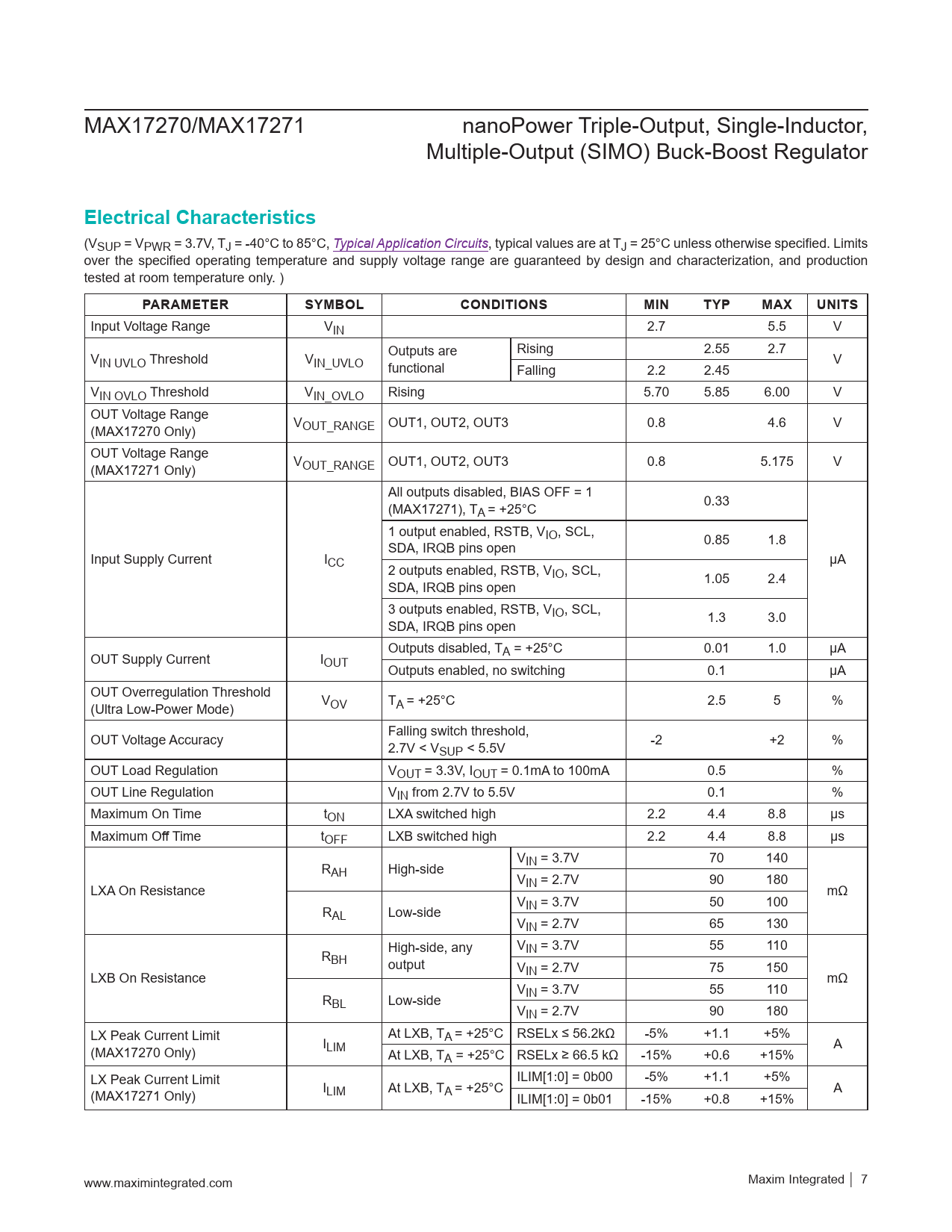

link to page 35 MAX17270/MAX17271 nanoPower Triple-Output, Single-Inductor, Multiple-Output (SIMO) Buck-Boost Regulator
Electrical Characteristics
(VSUP = VPWR = 3.7V, TJ = -40°C to 85°C, Typical Application Circuits, typical values are at TJ = 25°C unless otherwise specified. Limits over the specified operating temperature and supply voltage range are guaranteed by design and characterization, and production tested at room temperature only. )
PARAMETER SYMBOL CONDITIONS MIN TYP MAX UNITS
Input Voltage Range VIN 2.7 5.5 V Rising 2.55 2.7 V Outputs are IN UVLO Threshold VIN_UVLO functional V Falling 2.2 2.45 VIN OVLO Threshold VIN_OVLO Rising 5.70 5.85 6.00 V OUT Voltage Range (MAX17270 Only) VOUT_RANGE OUT1, OUT2, OUT3 0.8 4.6 V OUT Voltage Range (MAX17271 Only) VOUT_RANGE OUT1, OUT2, OUT3 0.8 5.175 V All outputs disabled, BIAS OFF = 1 (MAX17271), TA = +25°C 0.33 1 output enabled, RSTB, VIO, SCL, SDA, IRQB pins open 0.85 1.8 Input Supply Current ICC µA 2 outputs enabled, RSTB, VIO, SCL, SDA, IRQB pins open 1.05 2.4 3 outputs enabled, RSTB, VIO, SCL, SDA, IRQB pins open 1.3 3.0 Outputs disabled, T OUT Supply Current I A = +25°C 0.01 1.0 μA OUT Outputs enabled, no switching 0.1 µA OUT Overregulation Threshold (Ultra Low-Power Mode) VOV TA = +25°C 2.5 5 % OUT Voltage Accuracy Falling switch threshold, 2.7V < VSUP < 5.5V -2 +2 % OUT Load Regulation VOUT = 3.3V, IOUT = 0.1mA to 100mA 0.5 % OUT Line Regulation VIN from 2.7V to 5.5V 0.1 % Maximum On Time tON LXA switched high 2.2 4.4 8.8 µs Maximum Off Time tOFF LXB switched high 2.2 4.4 8.8 µs V R IN = 3.7V 70 140 AH High-side V LXA On Resistance IN = 2.7V 90 180 mΩ V R IN = 3.7V 50 100 AL Low-side VIN = 2.7V 65 130 V R High-side, any IN = 3.7V 55 110 BH output V LXB On Resistance IN = 2.7V 75 150 mΩ V R IN = 3.7V 55 110 BL Low-side VIN = 2.7V 90 180 LX Peak Current Limit At LXB, TA = +25°C RSELx ≤ 56.2kΩ -5% +1.1 +5% (MAX17270 Only) I LIM A At LXB, TA = +25°C RSELx ≥ 66.5 kΩ -15% +0.6 +15% LX Peak Current Limit ILIM[1:0] = 0b00 -5% +1.1 +5% (MAX17271 Only) I LIM At LXB, TA = +25°C A ILIM[1:0] = 0b01 -15% +0.8 +15% www.maximintegrated.com Maxim Integrated │ 7
