Datasheet SiC450, SiC451, SiC453 (Vishay) - 3
| Fabricante | Vishay |
| Descripción | 4.5 V to 20 V Input, 15 A, 25 A, 40 A microBuck DC/DC Converter With PMBus Interface |
| Páginas / Página | 48 / 3 — SiC450, SiC451, SiC453. PART MARKING INFORMATION. pin 1 indicator. P/N. … |
| Formato / tamaño de archivo | PDF / 1.3 Mb |
| Idioma del documento | Inglés |

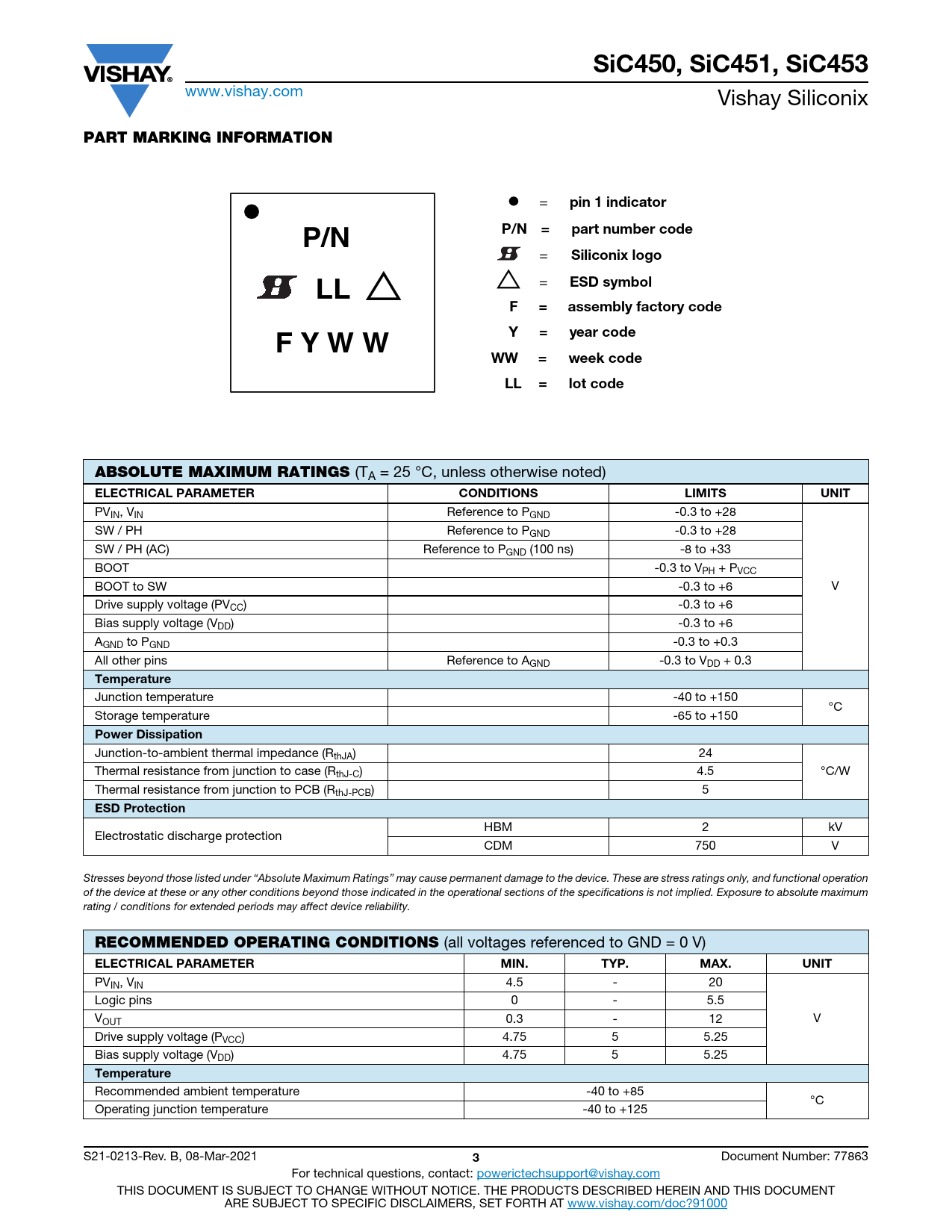

SiC450, SiC451, SiC453. PART MARKING INFORMATION. pin 1 indicator. P/N. part number code. Siliconix logo. ESD symbol
Línea de modelo para esta hoja de datos
Versión de texto del documento
SiC450, SiC451, SiC453
www.vishay.com Vishay Siliconix
PART MARKING INFORMATION
=
pin 1 indicator P/N = part number code P/N
=
Siliconix logo
=
ESD symbol LL F = assembly factory code Y = year code F Y W W WW = week code LL = lot code ABSOLUTE MAXIMUM RATINGS
(TA = 25 °C, unless otherwise noted)
ELECTRICAL PARAMETER CONDITIONS LIMITS UNIT
PVIN, VIN Reference to PGND -0.3 to +28 SW / PH Reference to PGND -0.3 to +28 SW / PH (AC) Reference to PGND (100 ns) -8 to +33 BOOT -0.3 to VPH + PVCC BOOT to SW -0.3 to +6 V Drive supply voltage (PVCC) -0.3 to +6 Bias supply voltage (VDD) -0.3 to +6 AGND to PGND -0.3 to +0.3 All other pins Reference to AGND -0.3 to VDD + 0.3
Temperature
Junction temperature -40 to +150 °C Storage temperature -65 to +150
Power Dissipation
Junction-to-ambient thermal impedance (RthJA) 24 Thermal resistance from junction to case (RthJ-C) 4.5 °C/W Thermal resistance from junction to PCB (RthJ-PCB) 5
ESD Protection
HBM 2 kV Electrostatic discharge protection CDM 750 V Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating / conditions for extended periods may affect device reliability.
RECOMMENDED OPERATING CONDITIONS
(all voltages referenced to GND = 0 V)
ELECTRICAL PARAMETER MIN. TYP. MAX. UNIT
PVIN, VIN 4.5 - 20 Logic pins 0 - 5.5 VOUT 0.3 - 12 V Drive supply voltage (PVCC) 4.75 5 5.25 Bias supply voltage (VDD) 4.75 5 5.25
Temperature
Recommended ambient temperature -40 to +85 °C Operating junction temperature -40 to +125 S21-0213-Rev. B, 08-Mar-2021
3
Document Number: 77863 For technical questions, contact: powerictechsupport@vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
