Nexperia. 74HC4060; 74HCT4060. 14-stage binary ripple counter with oscillator. 7. Functional description
Línea de modelo para esta hoja de datos
74HC4060
Versión de texto del documento
link to page 4 link to page 4 link to page 4

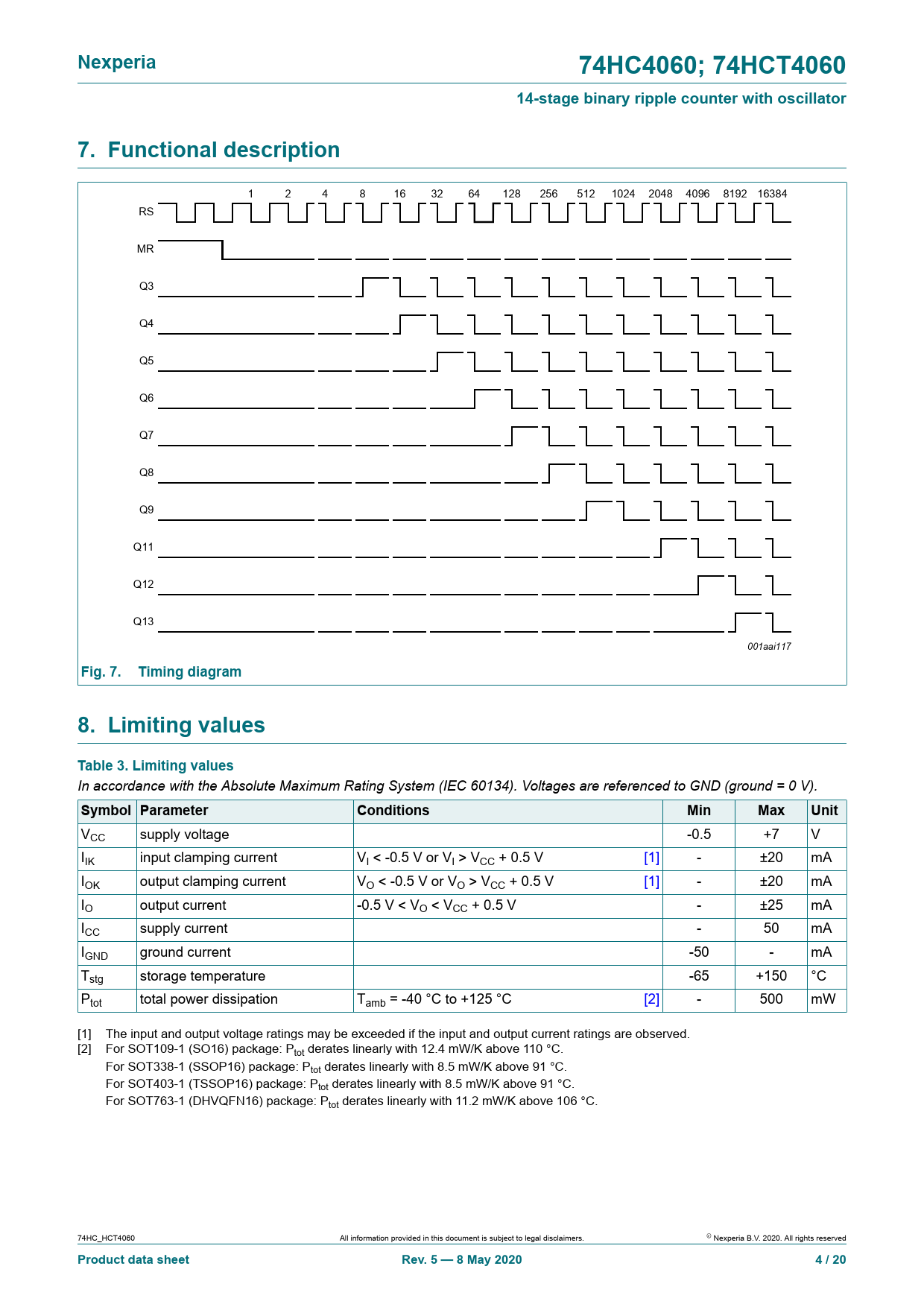

Nexperia 74HC4060; 74HCT4060 14-stage binary ripple counter with oscillator 7. Functional description
1 2 4 8 16 32 64 128 256 512 1024 2048 4096 8192 16384 RS MR Q3 Q4 Q5 Q6 Q7 Q8 Q9 Q11 Q12 Q13 001aai117
Fig. 7. Timing diagram 8. Limiting values Table 3. Limiting values
In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V).
Symbol Parameter Conditions Min Max Unit
VCC supply voltage -0.5 +7 V IIK input clamping current VI < -0.5 V or VI > VCC + 0.5 V [1] - ±20 mA IOK output clamping current VO < -0.5 V or VO > VCC + 0.5 V [1] - ±20 mA IO output current -0.5 V < VO < VCC + 0.5 V - ±25 mA ICC supply current - 50 mA IGND ground current -50 - mA Tstg storage temperature -65 +150 °C Ptot total power dissipation Tamb = -40 °C to +125 °C [2] - 500 mW [1] The input and output voltage ratings may be exceeded if the input and output current ratings are observed. [2] For SOT109-1 (SO16) package: Ptot derates linearly with 12.4 mW/K above 110 °C. For SOT338-1 (SSOP16) package: Ptot derates linearly with 8.5 mW/K above 91 °C. For SOT403-1 (TSSOP16) package: Ptot derates linearly with 8.5 mW/K above 91 °C. For SOT763-1 (DHVQFN16) package: Ptot derates linearly with 11.2 mW/K above 106 °C. 74HC_HCT4060 All information provided in this document is subject to legal disclaimers. © Nexperia B.V. 2020. Al rights reserved
Product data sheet Rev. 5 — 8 May 2020 4 / 20
