Datasheet NSL-19M51 (Luna Innovations) - 2
| Fabricante | Luna Innovations |
| Descripción | TO-18 Ceramic Package Photocells |
| Páginas / Página | 2 / 2 — To-18 Ceramic Package Photocells. NSL-19M51. WWW.LUNAINC.COM. Precision – … |
| Formato / tamaño de archivo | PDF / 142 Kb |
| Idioma del documento | Inglés |
To-18 Ceramic Package Photocells. NSL-19M51. WWW.LUNAINC.COM. Precision – Control – Results. OPTO-ELECTRICAL PARAMETERS
Línea de modelo para esta hoja de datos
Versión de texto del documento

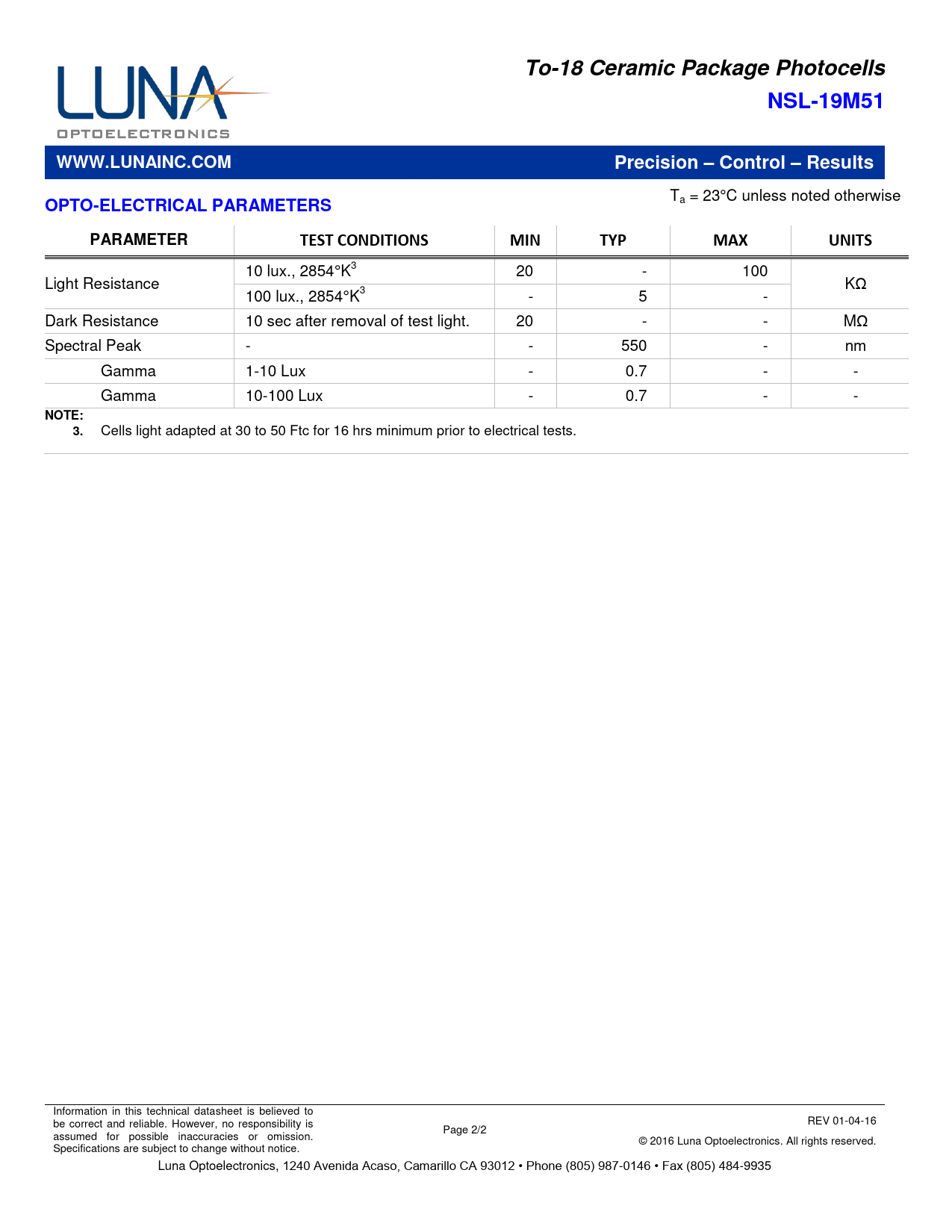

To-18 Ceramic Package Photocells NSL-19M51 WWW.LUNAINC.COM Precision – Control – Results
T
OPTO-ELECTRICAL PARAMETERS
a = 23°C unless noted otherwise
PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
10 lux., 2854°K3 20 - 100 Light Resistance KΩ 100 lux., 2854°K3 - 5 - Dark Resistance 10 sec after removal of test light. 20 - - MΩ Spectral Peak - - 550 - nm Gamma 1-10 Lux - 0.7 - - Gamma 10-100 Lux - 0.7 - -
NOTE: 3.
Cells light adapted at 30 to 50 Ftc for 16 hrs minimum prior to electrical tests. Information in this technical datasheet is believed to be correct and reliable. However, no responsibility is REV 01-04-16 Page 2/2 assumed for possible inaccuracies or omission. © 2016 Luna Optoelectronics. All rights reserved. Specifications are subject to change without notice. Luna Optoelectronics, 1240 Avenida Acaso, Camarillo CA 93012 • Phone (805) 987-0146 • Fax (805) 484-9935
T
OPTO-ELECTRICAL PARAMETERS
a = 23°C unless noted otherwise
PARAMETER TEST CONDITIONS MIN TYP MAX UNITS
10 lux., 2854°K3 20 - 100 Light Resistance KΩ 100 lux., 2854°K3 - 5 - Dark Resistance 10 sec after removal of test light. 20 - - MΩ Spectral Peak - - 550 - nm Gamma 1-10 Lux - 0.7 - - Gamma 10-100 Lux - 0.7 - -
NOTE: 3.
Cells light adapted at 30 to 50 Ftc for 16 hrs minimum prior to electrical tests. Information in this technical datasheet is believed to be correct and reliable. However, no responsibility is REV 01-04-16 Page 2/2 assumed for possible inaccuracies or omission. © 2016 Luna Optoelectronics. All rights reserved. Specifications are subject to change without notice. Luna Optoelectronics, 1240 Avenida Acaso, Camarillo CA 93012 • Phone (805) 987-0146 • Fax (805) 484-9935
