Datasheet MAX6674 (Maxim) - 7
| Fabricante | Maxim |
| Descripción | Cold-Junction-Compensated K-Thermocouple-to-Digital Converter (0°C to +128°C) |
| Páginas / Página | 8 / 7 — Block Diagram. Chip Information. Package Information. … |
| Formato / tamaño de archivo | PDF / 566 Kb |
| Idioma del documento | Inglés |
Block Diagram. Chip Information. Package Information. www.maximintegrated.com/packages. PACKAGE. PACKAGE OUTLINE. LAND. TYPE. CODE. NO
Línea de modelo para esta hoja de datos
Versión de texto del documento

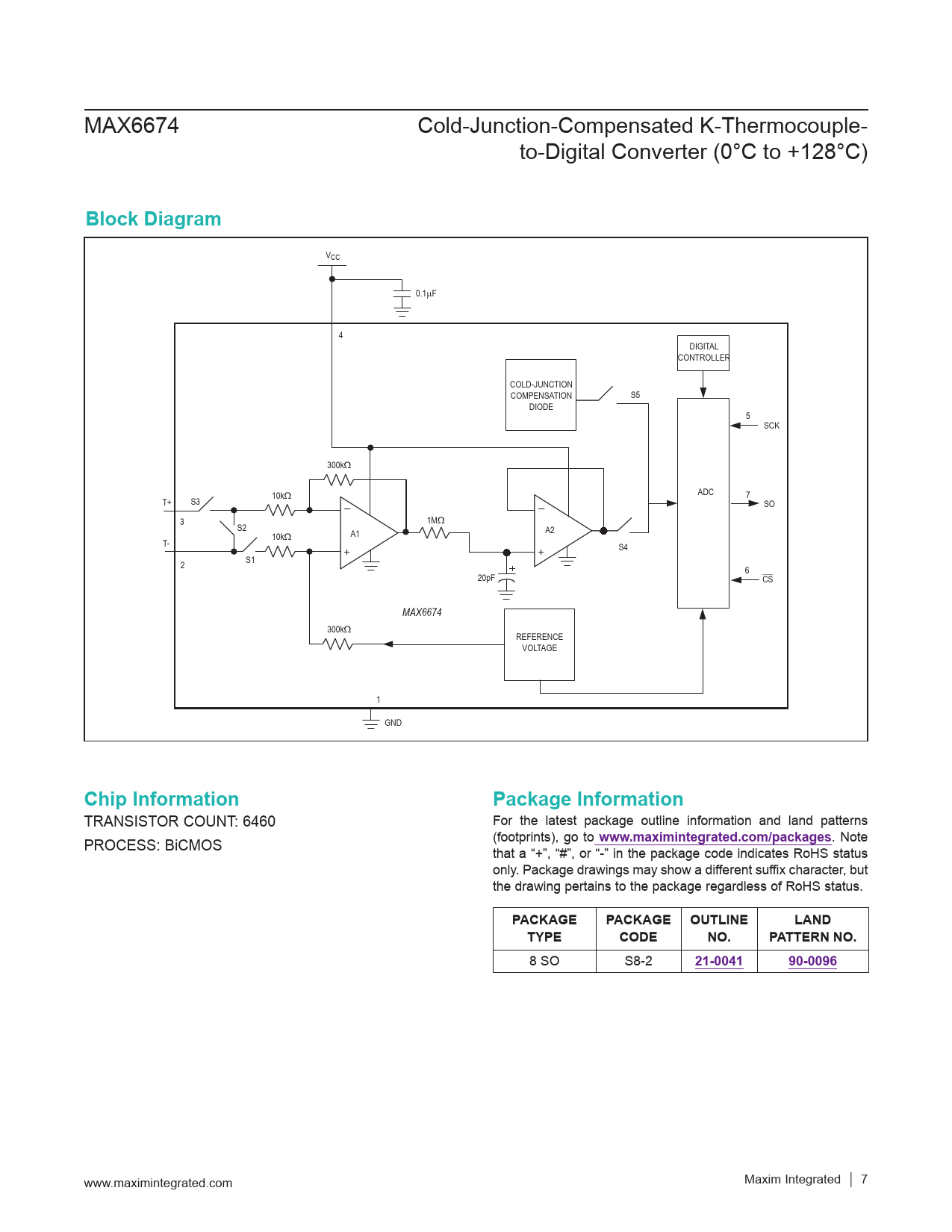

MAX6674 Cold-Junction-Compensated K-Thermocouple- to-Digital Converter (0°C to +128°C)
Block Diagram
VCC 0.1µF 4 DIGITAL CONTROLLER COLD-JUNCTION COMPENSATION S5 DIODE 5 SCK 300kΩ ADC 7 T+ S3 10kΩ SO 3 1MΩ S2 A1 A2 10kΩ T- S4 S1 2 6 20pF CS MAX6674 300kΩ REFERENCE VOLTAGE 1 GND
Chip Information Package Information
TRANSISTOR COUNT: 6460 For the latest package outline information and land patterns PROCESS: BiCMOS (footprints), go to
www.maximintegrated.com/packages
. Note that a “+”, “#”, or “-” in the package code indicates RoHS status only. Package drawings may show a different suffix character, but the drawing pertains to the package regardless of RoHS status.
PACKAGE PACKAGE OUTLINE LAND TYPE CODE NO. PATTERN NO.
8 SO S8-2
21-0041 90-0096
www.maximintegrated.com Maxim Integrated │ 7
