Datasheet IQXO-439-25, IQXO-439-33 (IQD) - 5
| Fabricante | IQD |
| Descripción | Simple Packaged Crystal Oscillator (SPXO) with an LVPECL output in a hermetically sealed ceramic package with a metal lid |
| Páginas / Página | 5 / 5 — Crystal Clock Oscillator Specification. IQXO-439-33. ISSUE 2; March 2021. … |
| Formato / tamaño de archivo | PDF / 796 Kb |
| Idioma del documento | Inglés |

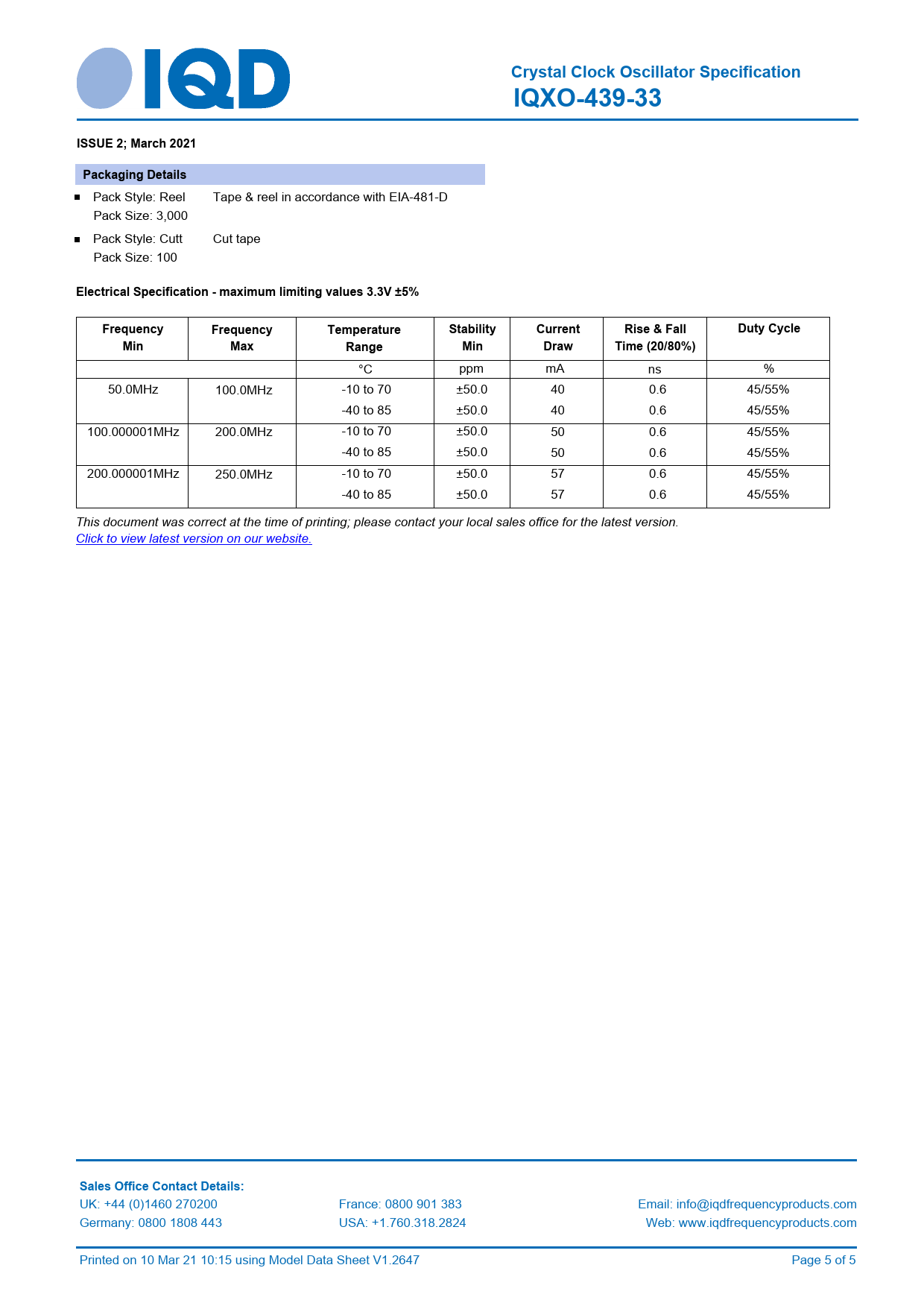

Crystal Clock Oscillator Specification. IQXO-439-33. ISSUE 2; March 2021. Packaging Details
Línea de modelo para esta hoja de datos
Versión de texto del documento
Crystal Clock Oscillator Specification IQXO-439-33 ISSUE 2; March 2021 Packaging Details
Pack Style: Reel Tape & reel in accordance with EIA-481-D Pack Size: 3,000 Pack Style: Cutt Cut tape Pack Size: 100
Electrical Specification - maximum limiting values 3.3V ±5% Frequency Frequency Temperature Stability Current Rise & Fall Duty Cycle Min Max Range Min Draw Time (20/80%)
°C ppm mA ns % 50.0MHz 100.0MHz -10 to 70 ±50.0 40 0.6 45/55% -40 to 85 ±50.0 40 0.6 45/55% 100.000001MHz 200.0MHz -10 to 70 ±50.0 50 0.6 45/55% -40 to 85 ±50.0 50 0.6 45/55% 200.000001MHz 250.0MHz -10 to 70 ±50.0 57 0.6 45/55% -40 to 85 ±50.0 57 0.6 45/55% This document was correct at the time of printing; please contact your local sales office for the latest version. Click to view latest version on our website.
Sales Office Contact Details:
UK: +44 (0)1460 270200 France: 0800 901 383 Email: info@iqdfrequencyproducts.com Germany: 0800 1808 443 USA: +1.760.318.2824 Web: www.iqdfrequencyproducts.com Printed on 10 Mar 21 10:15 using Model Data Sheet V1.2647 Page 5 of 5
