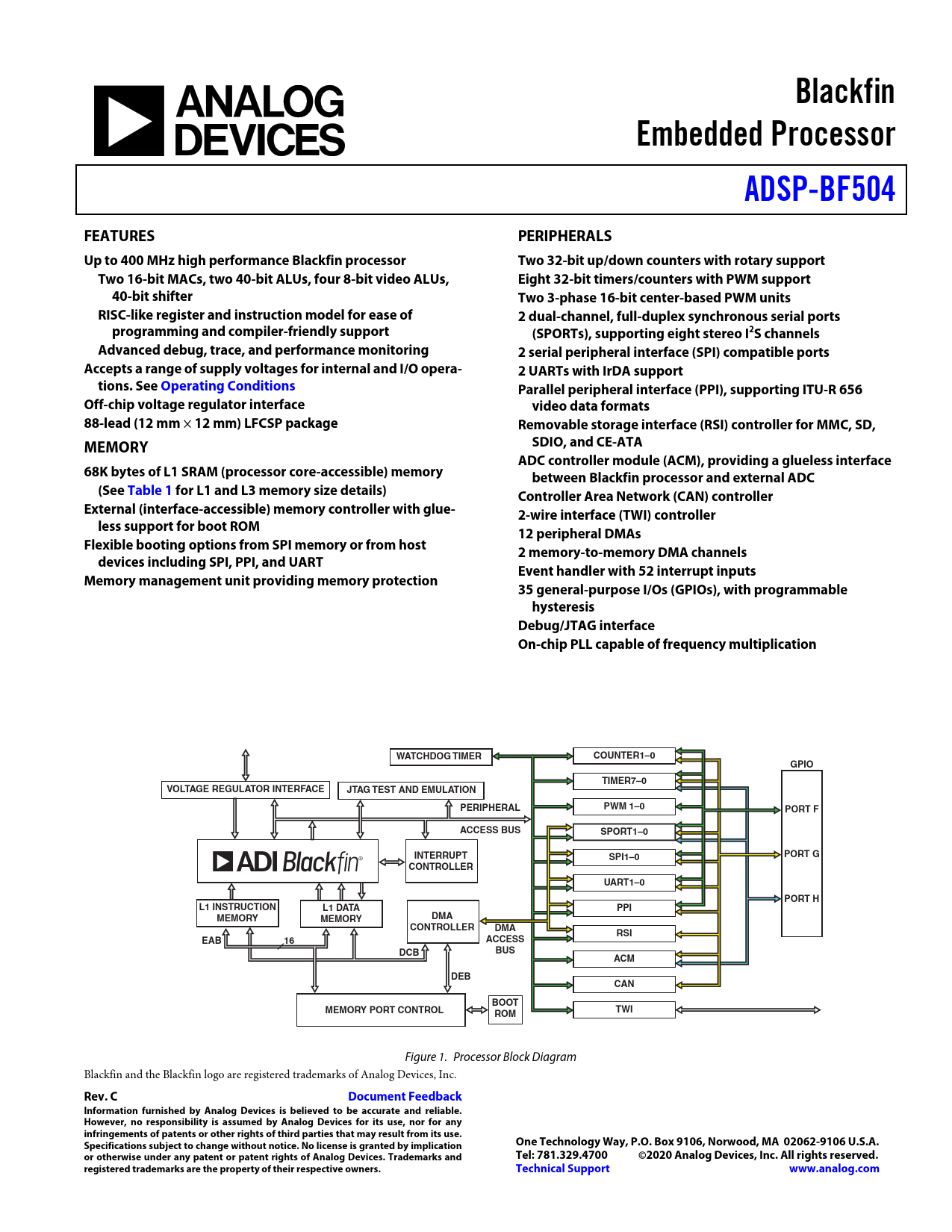

Blackfin Embedded Processor ADSP-BF504 FEATURES PERIPHERALS Up to 400 MHz high performance Blackfin processor Two 32-bit up/down counters with rotary support Two 16-bit MACs, two 40-bit ALUs, four 8-bit video ALUs, Eight 32-bit timers/counters with PWM support 40-bit shifter Two 3-phase 16-bit center-based PWM units RISC-like register and instruction model for ease of 2 dual-channel, full-duplex synchronous serial ports programming and compiler-friendly support (SPORTs), supporting eight stereo I2S channels Advanced debug, trace, and performance monitoring 2 serial peripheral interface (SPI) compatible ports Accepts a range of supply voltages for internal and I/O opera- 2 UARTs with IrDA support tions. See Operating Conditions Parallel peripheral interface (PPI), supporting ITU-R 656 Off-chip voltage regulator interface video data formats 88-lead (12 mm
×
12 mm) LFCSP package Removable storage interface (RSI) controller for MMC, SD, MEMORY SDIO, and CE-ATA ADC controller module (ACM), providing a glueless interface 68K bytes of L1 SRAM (processor core-accessible) memory between Blackfin processor and external ADC (See Table 1 for L1 and L3 memory size details) Controller Area Network (CAN) controller External (interface-accessible) memory controller with glue- 2-wire interface (TWI) controller less support for boot ROM 12 peripheral DMAs Flexible booting options from SPI memory or from host 2 memory-to-memory DMA channels devices including SPI, PPI, and UART Event handler with 52 interrupt inputs Memory management unit providing memory protection 35 general-purpose I/Os (GPIOs), with programmable hysteresis Debug/JTAG interface On-chip PLL capable of frequency multiplication WATCHDOG TIMER COUNTER1–0 GPIO TIMER7–0 VOLTAGE REGULATOR INTERFACE JTAG TEST AND EMULATION PERIPHERAL PWM 1–0 PORT F ACCESS BUS SPORT1–0 PORT G INTERRUPT SPI1–0 CONTROLLER
B
UART1–0 PORT H L1 INSTRUCTION L1 DATA PPI DMA MEMORY MEMORY CONTROLLER DMA RSI EAB 16 ACCESS BUS DCB ACM DEB CAN BOOT MEMORY PORT CONTROL TWI ROM
Figure 1. Processor Block Diagram Blackfin and the Blackfin logo are registered trademarks of Analog Devices, Inc.
Rev. C Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 U.S.A. or otherwise under any patent or patent rights of Analog Devices. Trademarks and Tel: 781.329.4700 ©2020 Analog Devices, Inc. All rights reserved. registered trademarks are the property of their respective owners. Technical Support www.analog.com
