Datasheet LTC3315A (Analog Devices) - 10
| Fabricante | Analog Devices |
| Descripción | Dual 5V, 2A Synchronous Step-Down DC/DCs in 2mm × 2mm LQFN |
| Páginas / Página | 24 / 10 — BLOCK DIAGRAM |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 2.0 Mb |
| Idioma del documento | Inglés |
BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
- LTC3315AEV#TRMPBF LTC3315AEV#TRPBF LTC3315AEV#WTRMPBF LTC3315AEV#WTRPBF LTC3315AHV#TRMPBF LTC3315AHV#TRPBF LTC3315AHV#WTRMPBF LTC3315AHV#WTRPBF LTC3315AIV#TRMPBF LTC3315AIV#TRPBF LTC3315AIV#WTRMPBF LTC3315AIV#WTRPBF LTC3315AJV#TRMPBF LTC3315AJV#TRPBF LTC3315AJV#WTRMPBF LTC3315AJV#WTRPBF LTC3315AMPV#TRMPBF LTC3315AMPV#TRPBF
Versión de texto del documento
LTC3315A
BLOCK DIAGRAM

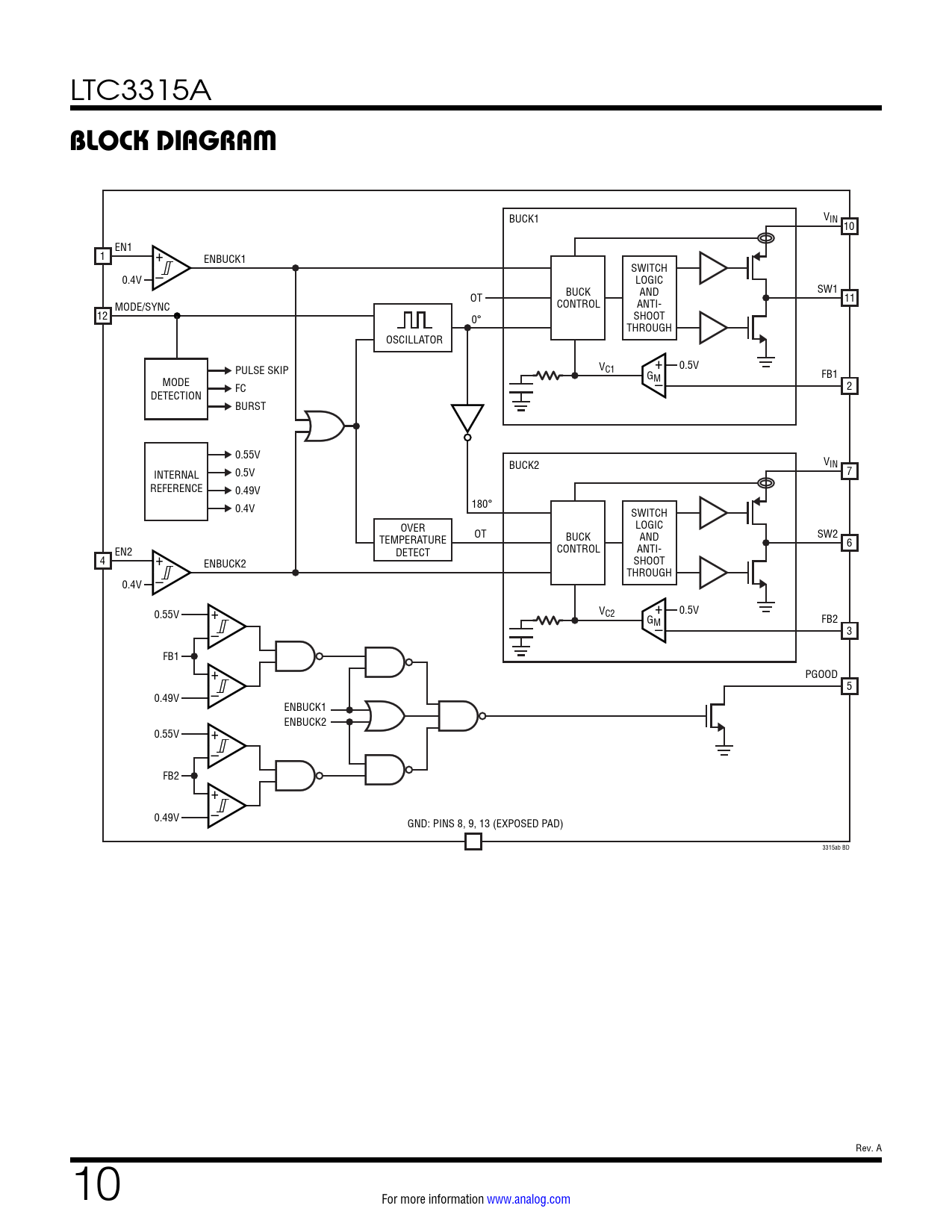

BUCK1 VIN 10 EN1 1 + ENBUCK1 SWITCH 0.4V – LOGIC SW1 BUCK AND OT 11 CONTROL ANTI- MODE/SYNC 12 SHOOT 0° THROUGH OSCILLATOR V + 0.5V PULSE SKIP C1 G FB1 M MODE FC – 2 DETECTION BURST 0.55V V BUCK2 IN 0.5V 7 INTERNAL REFERENCE 0.49V 0.4V 180° SWITCH LOGIC OVER OT SW2 BUCK AND TEMPERATURE 6 CONTROL ANTI- EN2 DETECT 4 + SHOOT ENBUCK2 THROUGH 0.4V – V + 0.5V 0.55V C2 + G FB2 M – 3 – FB1 + PGOOD 5 0.49V – ENBUCK1 ENBUCK2 0.55V + – FB2 + 0.49V – GND: PINS 8, 9, 13 (EXPOSED PAD) 3315ab BD Rev. A 10 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Typical Performance Characteristics Pin Functions Block Diagram Operation Applications Information Typical Applications Package Description Revision History Typical Application Related Parts
