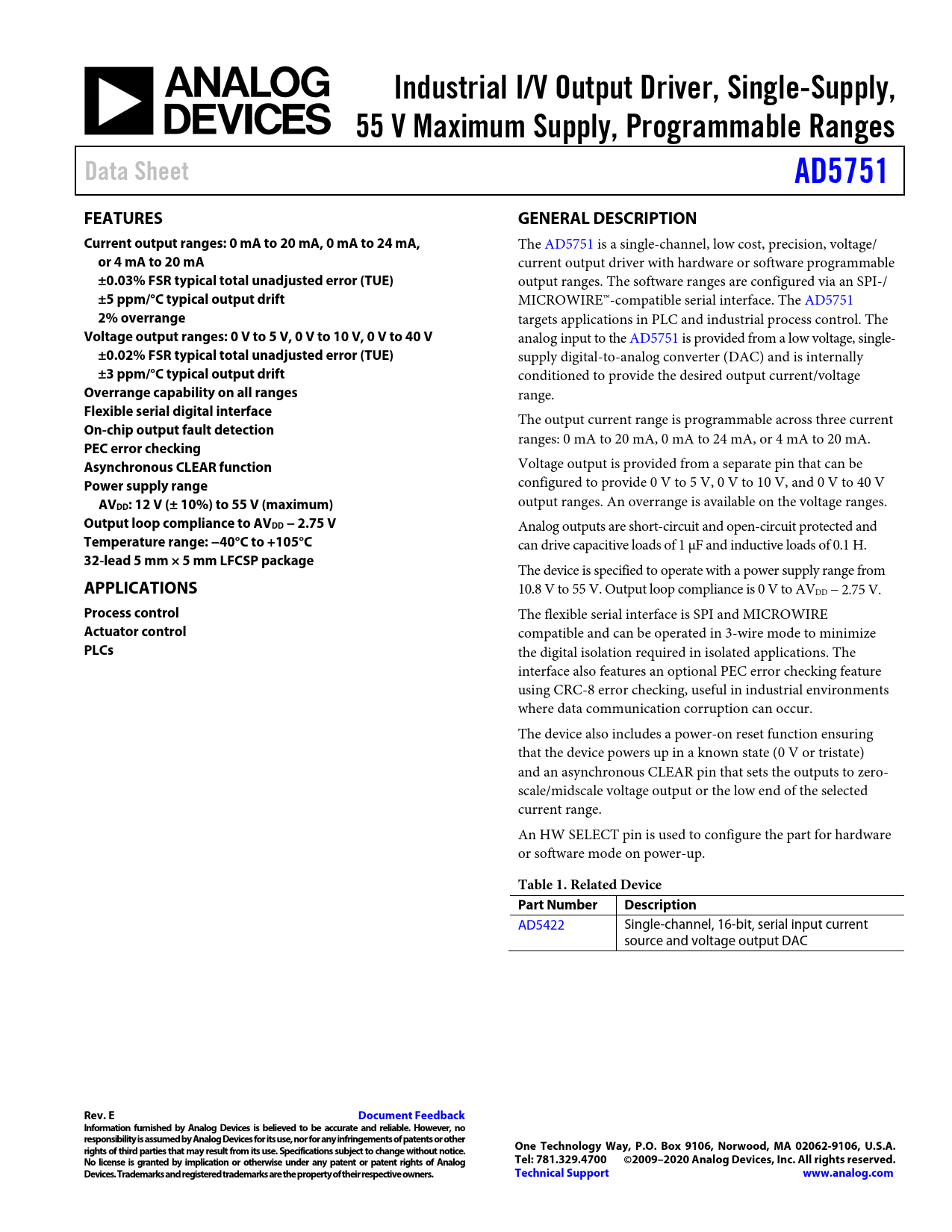

Datasheet AD5751 (Analog Devices)

Industrial I/V Output Driver, Single-Supply, 55 V Maximum Supply, Programmable Ranges Data Sheet AD5751 FEATURES GENERAL DESCRIPTION Current output ranges: 0 mA to 20 mA, 0 mA to 24 mA,
The AD5751 is a single-channel, low cost, precision, voltage/
or 4 mA to 20 mA
current output driver with hardware or software programmable
±0.03% FSR typical total unadjusted error (TUE)
output ranges. The software ranges are configured via an SPI-/
±5 ppm/°C typical output drift
MICROWIRE™-compatible serial interface. The AD5751
2% overrange
targets applications in PLC and industrial process control. The
Voltage output ranges: 0 V to 5 V, 0 V to 10 V, 0 V to 40 V
analog input to the AD5751 is provided from a low voltage, single-
±0.02% FSR typical total unadjusted error (TUE)
supply digital-to-analog converter (DAC) and is internally
±3 ppm/°C typical output drift
conditioned to provide the desired output current/voltage
Overrange capability on all ranges
range.
Flexible serial digital interface
The output current range is programmable across three current
On-chip output fault detection
ranges: 0 mA to 20 mA, 0 mA to 24 mA, or 4 mA to 20 mA.
PEC error checking Asynchronous CLEAR function
Voltage output is provided from a separate pin that can be
Power supply range
configured to provide 0 V to 5 V, 0 V to 10 V, and 0 V to 40 V
AV
output ranges. An overrange is available on the voltage ranges.
DD: 12 V (± 10%) to 55 V (maximum) Output loop compliance to AVDD − 2.75 V
Analog outputs are short-circuit and open-circuit protected and
Temperature range: −40°C to +105°C
can drive capacitive loads of 1 μF and inductive loads of 0.1 H.
32-lead 5 mm × 5 mm LFCSP package
The device is specified to operate with a power supply range from
APPLICATIONS
10.8 V to 55 V. Output loop compliance is 0 V to AVDD − 2.75 V.
Process control
The flexible serial interface is SPI and MICROWIRE
Actuator control
compatible and can be operated in 3-wire mode to minimize
PLCs
the digital isolation required in isolated applications. The interface also features an optional PEC error checking feature using CRC-8 error checking, useful in industrial environments where data communication corruption can occur. The device also includes a power-on reset function ensuring that the device powers up in a known state (0 V or tristate) and an asynchronous CLEAR pin that sets the outputs to zero- scale/midscale voltage output or the low end of the selected current range. An HW SELECT pin is used to configure the part for hardware or software mode on power-up.
Table 1. Related Device Part Number Description
AD5422 Single-channel, 16-bit, serial input current source and voltage output DAC
Rev. E Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. No license is granted by implication or otherwise under any patent or patent rights of Analog Tel: 781.329.4700 ©2009–2020 Analog Devices, Inc. All rights reserved. Devices. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline Features Applications General Description Revision History Functional Block Diagram Specifications Timing Characteristics Timing Diagrams Absolute Maximum Ratings ESD Caution Pin Configuration and Function Descriptions Typical Performance Characteristics Current Output Terminology Theory of Operation Software Mode Currrent Output Architecture Driving Inductive Loads Voltage Output Amplifier Driving Large Capacitive Loads Power-On State of the AD5751 Default Registers at Power-On Reset Function OUTEN Software Control Input Shift Register Readback Operation Hardware Control Transfer Function Detailed Description of Features Output Fault Alert—Software Mode Output Fault Alert—Hardware Mode Voltage Output Short-Circuit Protection Asynchronous Clear (CLEAR) External Current Setting Resistor Programmable Overrange Modes Packet Error Checking Applications Information Transient Voltage Protection Thermal Considerations Layout Guidelines Galvanically Isolated Interface Microprocessor Interfacing Outline Dimensions Ordering Guide
