Datasheet AD629 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | High Common-Mode Voltage, Difference Amplifier |
| Páginas / Página | 16 / 5 — AD629. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. REF(–) 1. 8 NC. –IN … |
| Revisión | C |
| Formato / tamaño de archivo | PDF / 413 Kb |
| Idioma del documento | Inglés |

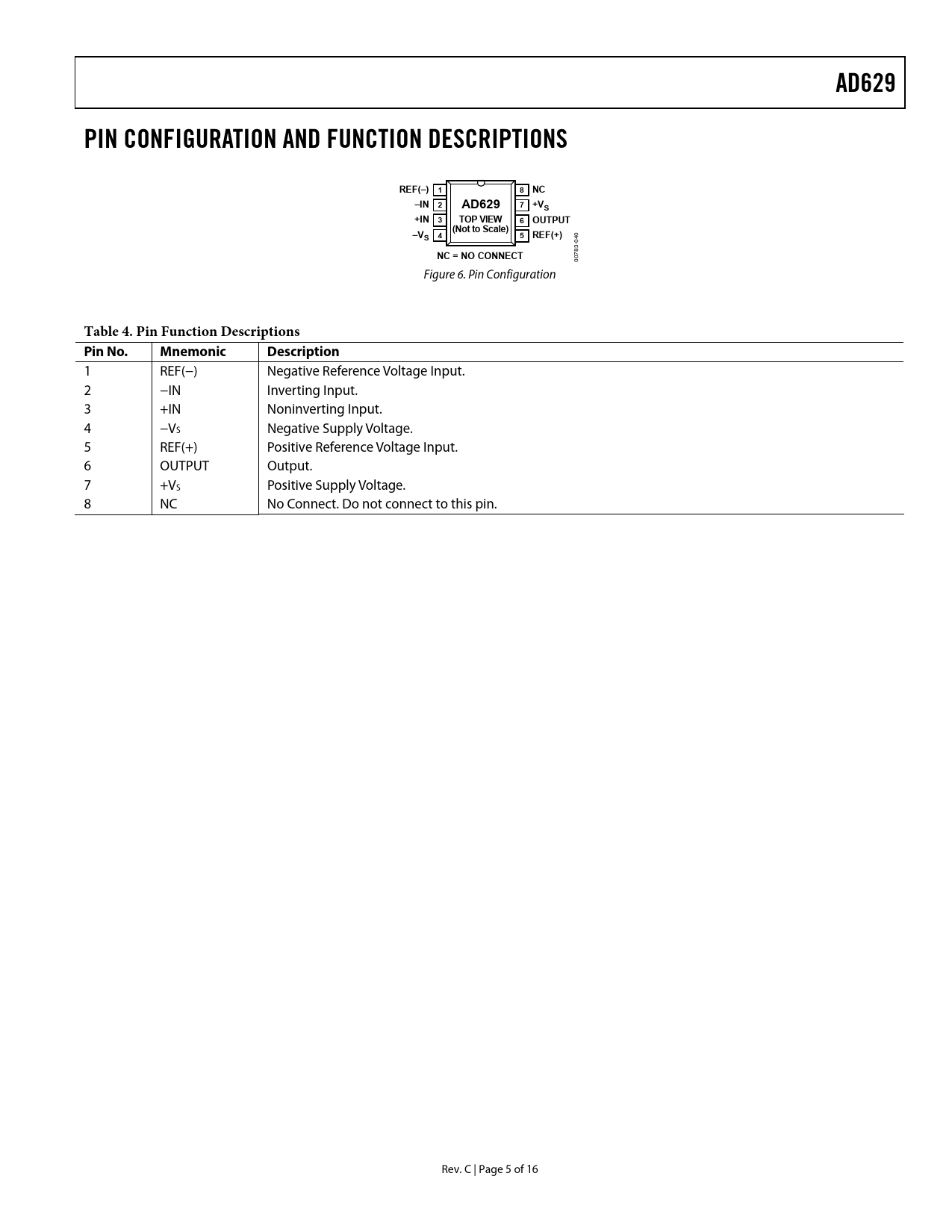

AD629. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. REF(–) 1. 8 NC. –IN 2. 7 +VS. +IN 3. TOP VIEW. 6 OUTPUT. (Not to Scale). –VS 4. 5 REF(+)
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD629 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS REF(–) 1 8 NC –IN 2 AD629 7 +VS +IN 3 TOP VIEW 6 OUTPUT (Not to Scale) –VS 4 5 REF(+)
0 04 3-
NC = NO CONNECT
78 00 Figure 6. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 REF(−) Negative Reference Voltage Input. 2 −IN Inverting Input. 3 +IN Noninverting Input. 4 −VS Negative Supply Voltage. 5 REF(+) Positive Reference Voltage Input. 6 OUTPUT Output. 7 +VS Positive Supply Voltage. 8 NC No Connect. Do not connect to this pin. Rev. C | Page 5 of 16 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS BASIC CONNECTIONS SINGLE-SUPPLY OPERATION SYSTEM-LEVEL DECOUPLING AND GROUNDING USING A LARGE SENSE RESISTOR OUTPUT FILTERING OUTPUT CURRENT AND BUFFERING A GAIN OF 19 DIFFERENTIAL AMPLIFIER ERROR BUDGET ANALYSIS EXAMPLE 1 ERROR BUDGET ANALYSIS EXAMPLE 2 OUTLINE DIMENSIONS ORDERING GUIDE
