Datasheet AD628 (Analog Devices) - 8
| Fabricante | Analog Devices |
| Descripción | High Common-Mode Voltage, Programmable Gain Difference Amplifier |
| Páginas / Página | 20 / 8 — AD628. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. +IN 1. 8 –IN. +VS. … |
| Revisión | G |
| Formato / tamaño de archivo | PDF / 361 Kb |
| Idioma del documento | Inglés |

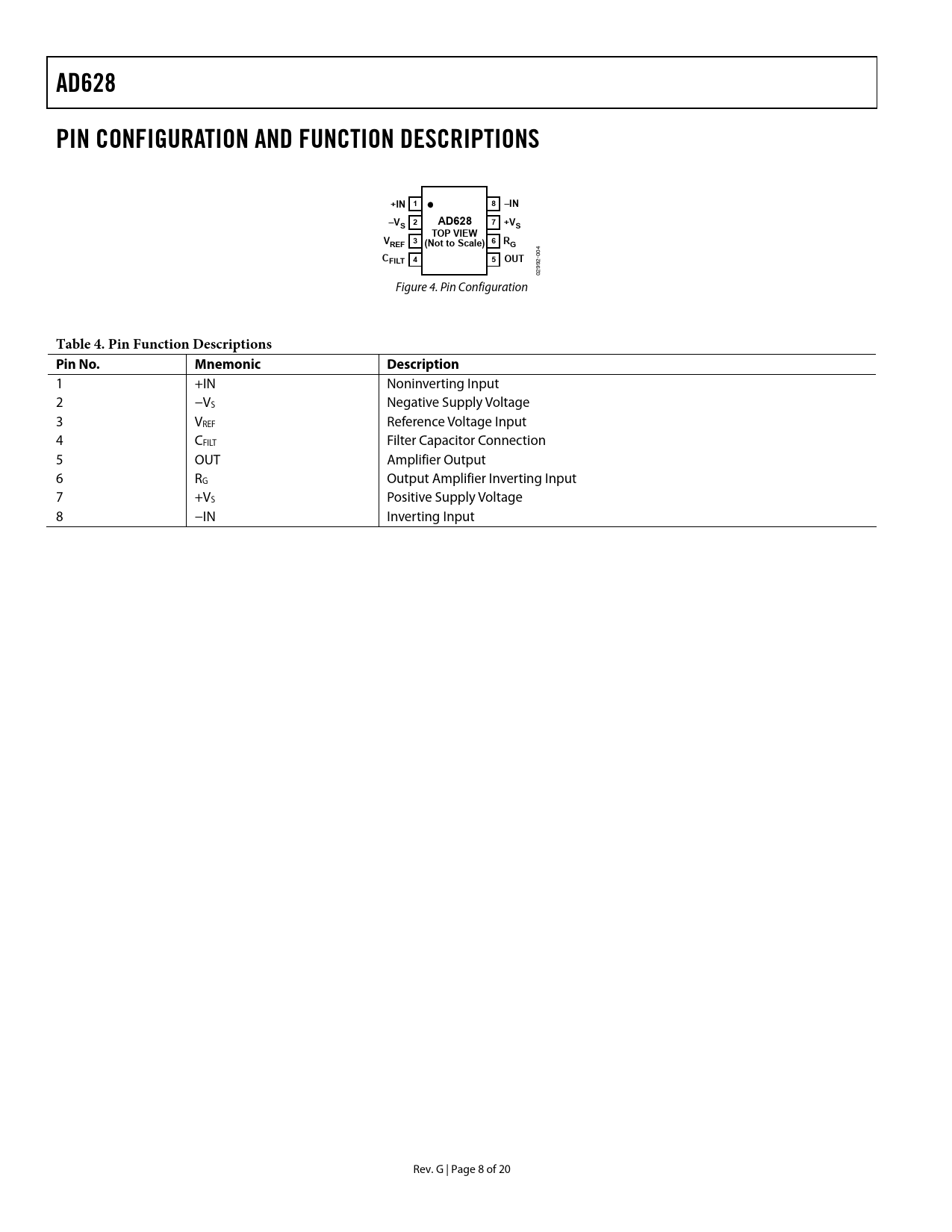

AD628. PIN CONFIGURATION AND FUNCTION DESCRIPTIONS. +IN 1. 8 –IN. +VS. TOP VIEW. REF. (Not to Scale) 6 RG. FILT. OUT
Línea de modelo para esta hoja de datos
Versión de texto del documento
AD628 PIN CONFIGURATION AND FUNCTION DESCRIPTIONS +IN 1 8 –IN –V 2 AD628 7 S +VS TOP VIEW V 3 REF (Not to Scale) 6 RG C 4 5 FILT OUT
-004 92 029 Figure 4. Pin Configuration
Table 4. Pin Function Descriptions Pin No. Mnemonic Description
1 +IN Noninverting Input 2 −VS Negative Supply Voltage 3 VREF Reference Voltage Input 4 CFILT Filter Capacitor Connection 5 OUT Amplifier Output 6 RG Output Amplifier Inverting Input 7 +VS Positive Supply Voltage 8 −IN Inverting Input Rev. G | Page 8 of 20 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL CHARACTERISTICS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS TEST CIRCUITS THEORY OF OPERATION APPLICATIONS INFORMATION GAIN ADJUSTMENT INPUT VOLTAGE RANGE VOLTAGE LEVEL CONVERSION CURRENT LOOP RECEIVER MONITORING BATTERY VOLTAGES FILTER CAPACITOR VALUES KELVIN CONNECTION OUTLINE DIMENSIONS ORDERING GUIDE
