LT1990-10

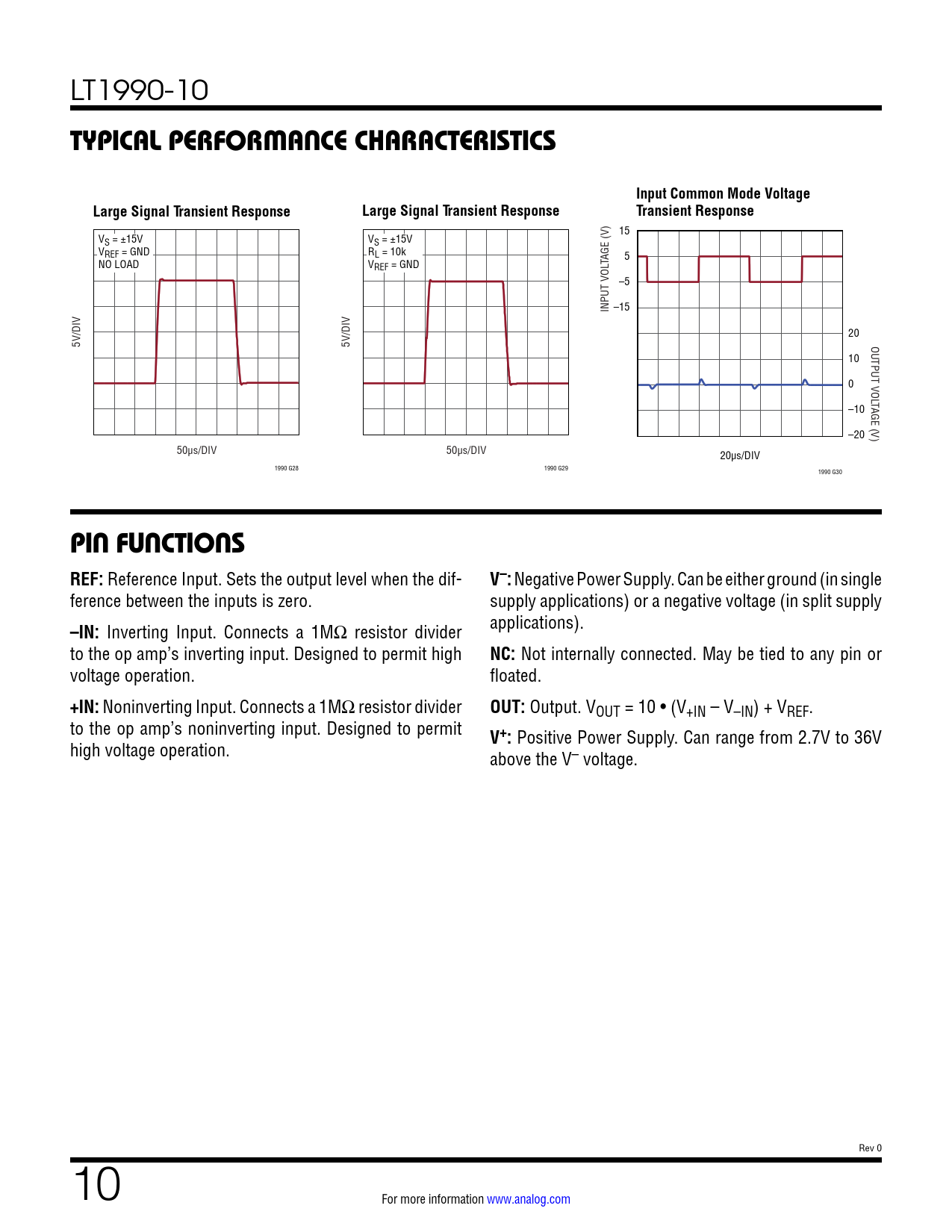

TYPICAL PERFORMANCE CHARACTERISTICS Input Common Mode Voltage Large Signal Transient Response Large Signal Transient Response Transient Response
15 VS = ±15V VS = ±15V VREF = GND RL = 10k 5 NO LOAD V TAGE (V) REF = GND –5 INPUT VOL –15 /DIV /DIV 20 5V 5V OUTPUT VOL 10 0 TAGE (V) –10 –20 50µs/DIV 50µs/DIV 20µs/DIV 1990 G28 1990 G29 1990 G30
PIN FUNCTIONS REF:
Reference Input. Sets the output level when the dif-
V–:
Negative Power Supply. Can be either ground (in single ference between the inputs is zero. supply applications) or a negative voltage (in split supply
–IN:
Inverting Input. Connects a 1MΩ resistor divider applications). to the op amp’s inverting input. Designed to permit high
NC:
Not internally connected. May be tied to any pin or voltage operation. floated.
+IN:
Noninverting Input. Connects a 1MΩ resistor divider
OUT:
Output. VOUT = 10 • (V+IN – V–IN) + VREF. to the op amp’s noninverting input. Designed to permit
V+:
Positive Power Supply. Can range from 2.7V to 36V high voltage operation. above the V– voltage. Rev 0 10 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Pin Configuration Order Information 3V/5V Electrical Characteristics Electrical Characteristics ±15V Electrical Characteristics Electrical Characteristics Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Typical Applications Related Parts
