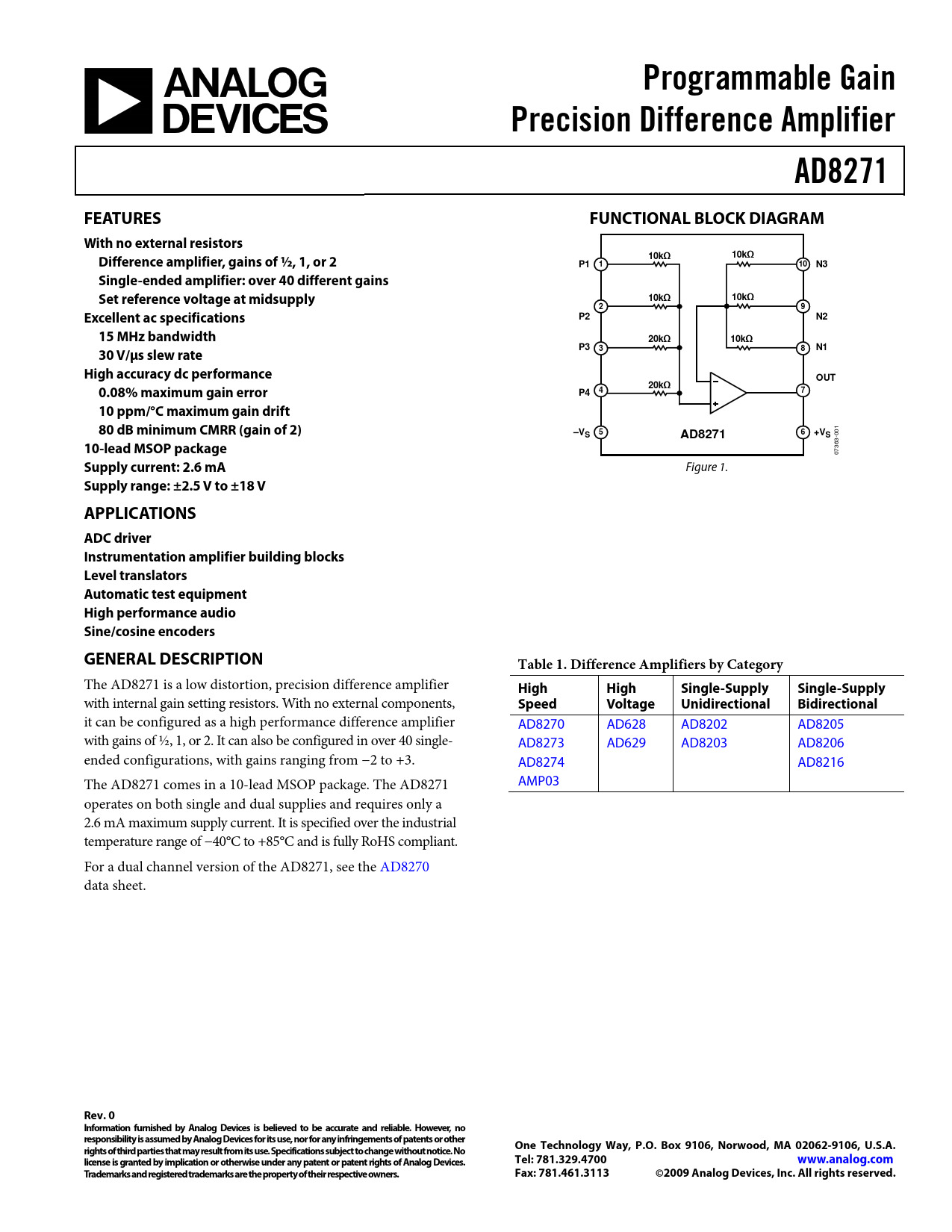

Programmable Gain Precision Difference Amplifier AD8271 FEATURES FUNCTIONAL BLOCK DIAGRAM With no external resistors 10kΩ 10kΩ Difference amplifier, gains of ½, 1, or 2 P1 1 10 N3 Single-ended amplifier: over 40 different gains Set reference voltage at midsupply 10kΩ 10kΩ 2 9 Excellent ac specifications P2 N2 15 MHz bandwidth 20kΩ 10kΩ P3 3 8 N1 30 V/μs slew rate High accuracy dc performance OUT 20kΩ 0.08% maximum gain error 4 7 P4 10 ppm/°C maximum gain drift 80 dB minimum CMRR (gain of 2) –V 5 6
01
S AD8271 +VS
03-
10-lead MSOP package
36 07
Supply current: 2.6 mA
Figure 1.
Supply range: ±2.5 V to ±18 V APPLICATIONS ADC driver Instrumentation amplifier building blocks Level translators Automatic test equipment High performance audio Sine/cosine encoders GENERAL DESCRIPTION Table 1. Difference Amplifiers by Category
The AD8271 is a low distortion, precision difference amplifier
High High Single-Supply Single-Supply
with internal gain setting resistors. With no external components,
Speed Voltage Unidirectional Bidirectional
it can be configured as a high performance difference amplifier AD8270 AD628 AD8202 AD8205 with gains of ½, 1, or 2. It can also be configured in over 40 single- AD8273 AD629 AD8203 AD8206 ended configurations, with gains ranging from −2 to +3. AD8274 AD8216 The AD8271 comes in a 10-lead MSOP package. The AD8271 AMP03 operates on both single and dual supplies and requires only a 2.6 mA maximum supply current. It is specified over the industrial temperature range of −40°C to +85°C and is fully RoHS compliant. For a dual channel version of the AD8271, see the AD8270 data sheet.
Rev. 0 Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Tel: 781.329.4700 www.analog.com Trademarks and registered trademarks are the property of their respective owners. Fax: 781.461.3113 ©2009 Analog Devices, Inc. All rights reserved.
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS DIFFERENCE AMPLIFIER CONFIGURATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE MAXIMUM POWER DISSIPATION ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTION TYPICAL PERFORMANCE CHARACTERISTICS OPERATIONAL AMPLIFIER PLOTS THEORY OF OPERATION CIRCUIT INFORMATION DC Performance AC Performance Production Costs Size DRIVING THE AD8271 POWER SUPPLIES INPUT VOLTAGE RANGE APPLICATIONS INFORMATION DIFFERENCE AMPLIFIER CONFIGURATIONS SINGLE-ENDED CONFIGURATIONS Gain of 1 Configuration KELVIN MEASUREMENT INSTRUMENTATION AMPLIFIER DRIVING CABLING DRIVING AN ADC OUTLINE DIMENSIONS ORDERING GUIDE
