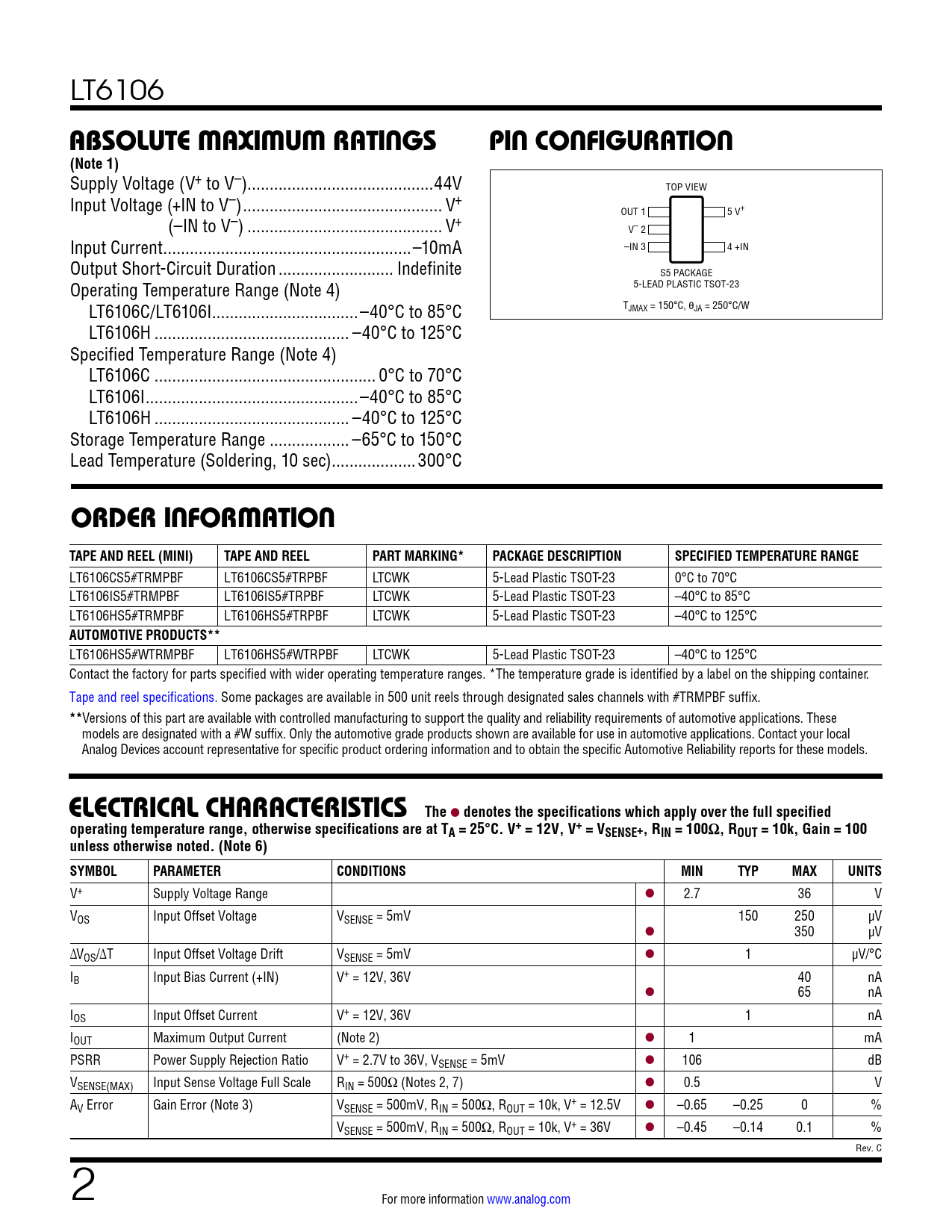

LT6106 ABSOLUTE MAXIMUM RATINGSPIN CONFIGURATION(Note 1) Supply Voltage (V+ to V–) ..44V TOP VIEW Input Voltage (+IN to V–) ... V+ OUT 1 5 V+ (–IN to V–) .. V+ V– 2 Input Current ..–10mA –IN 3 4 +IN Output Short-Circuit Duration .. Indefinite S5 PACKAGE Operating Temperature Range (Note 4) 5-LEAD PLASTIC TSOT-23 LT6106C/LT6106I ...–40°C to 85°C TJMAX = 150°C, θJA = 250°C/W LT6106H .. –40°C to 125°C Specified Temperature Range (Note 4) LT6106C .. 0°C to 70°C LT6106I ..–40°C to 85°C LT6106H .. –40°C to 125°C Storage Temperature Range .. –65°C to 150°C Lead Temperature (Soldering, 10 sec) ...300°C ORDER INFORMATIONTAPE AND REEL (MINI)TAPE AND REELPART MARKING*PACKAGE DESCRIPTIONSPECIFIED TEMPERATURE RANGE LT6106CS5#TRMPBF LT6106CS5#TRPBF LTCWK 5-Lead Plastic TSOT-23 0°C to 70°C LT6106IS5#TRMPBF LT6106IS5#TRPBF LTCWK 5-Lead Plastic TSOT-23 –40°C to 85°C LT6106HS5#TRMPBF LT6106HS5#TRPBF LTCWK 5-Lead Plastic TSOT-23 –40°C to 125°C AUTOMOTIVE PRODUCTS** LT6106HS5#WTRMPBF LT6106HS5#WTRPBF LTCWK 5-Lead Plastic TSOT-23 –40°C to 125°C Contact the factory for parts specified with wider operating temperature ranges. *The temperature grade is identified by a label on the shipping container. Tape and reel specifications. Some packages are available in 500 unit reels through designated sales channels with #TRMPBF suffix. ** Versions of this part are available with controlled manufacturing to support the quality and reliability requirements of automotive applications. These models are designated with a #W suffix. Only the automotive grade products shown are available for use in automotive applications. Contact your local Analog Devices account representative for specific product ordering information and to obtain the specific Automotive Reliability reports for these models. ELECTRICAL CHARACTERISTICSThe l denotes the specifications which apply over the full specifiedoperating temperature range, otherwise specifications are at TA = 25°C. V+ = 12V, V+ = VSENSE+, RIN = 100Ω, ROUT = 10k, Gain = 100unless otherwise noted. (Note 6) SYMBOLPARAMETERCONDITIONSMINTYPMAXUNITS V+ Supply Voltage Range l 2.7 36 V VOS Input Offset Voltage VSENSE = 5mV 150 250 µV l 350 µV ΔVOS/ΔT Input Offset Voltage Drift VSENSE = 5mV l 1 µV/°C IB Input Bias Current (+IN) V+ = 12V, 36V 40 nA l 65 nA IOS Input Offset Current V+ = 12V, 36V 1 nA IOUT Maximum Output Current (Note 2) l 1 mA PSRR Power Supply Rejection Ratio V+ = 2.7V to 36V, VSENSE = 5mV l 106 dB VSENSE(MAX) Input Sense Voltage Full Scale RIN = 500Ω (Notes 2, 7) l 0.5 V AV Error Gain Error (Note 3) VSENSE = 500mV, RIN = 500Ω, ROUT = 10k, V+ = 12.5V l –0.65 –0.25 0 % VSENSE = 500mV, RIN = 500Ω, ROUT = 10k, V+ = 36V l –0.45 –0.14 0.1 % Rev. C 2 For more information www.analog.com Document Outline Features Applications Typical Application Description Absolute Maximum Ratings Order Information Electrical Characteristics Pin Configuration Typical Performance Characteristics Pin Functions Block Diagram Applications Information Package Description Revision History Typical Application Related Parts
