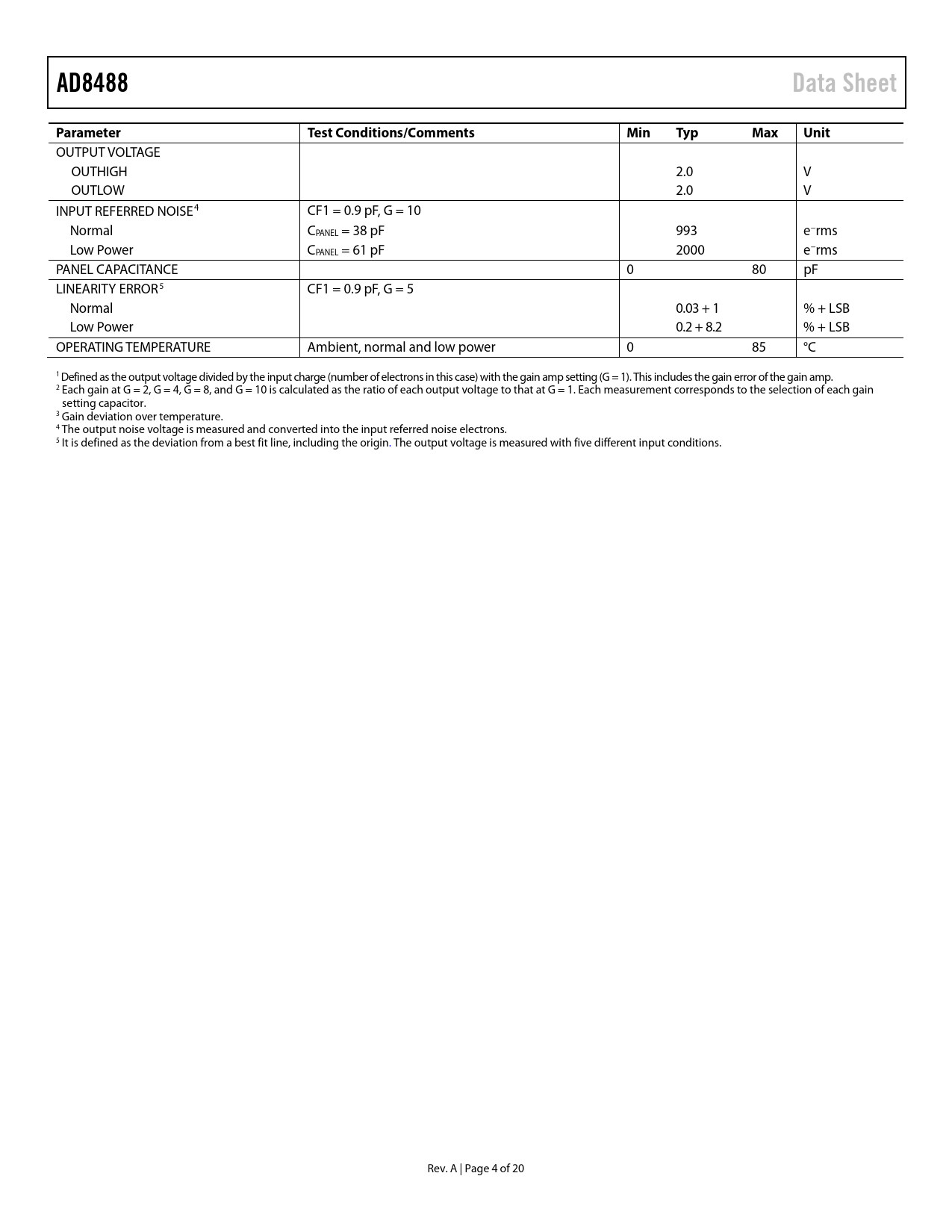

AD8488 Data Sheet Parameter Test Conditions/Comments Min Typ Max Unit
OUTPUT VOLTAGE OUTHIGH 2.0 V OUTLOW 2.0 V INPUT REFERRED NOISE4 CF1 = 0.9 pF, G = 10 Normal CPANEL = 38 pF 993 e−rms Low Power CPANEL = 61 pF 2000 e−rms PANEL CAPACITANCE 0 80 pF LINEARITY ERROR5 CF1 = 0.9 pF, G = 5 Normal 0.03 + 1 % + LSB Low Power 0.2 + 8.2 % + LSB OPERATING TEMPERATURE Ambient, normal and low power 0 85 °C 1 Defined as the output voltage divided by the input charge (number of electrons in this case) with the gain amp setting (G = 1). This includes the gain error of the gain amp. 2 Each gain at G = 2, G = 4, G = 8, and G = 10 is calculated as the ratio of each output voltage to that at G = 1. Each measurement corresponds to the selection of each gain setting capacitor. 3 Gain deviation over temperature. 4 The output noise voltage is measured and converted into the input referred noise electrons. 5 It is defined as the deviation from a best fit line, including the origin. The output voltage is measured with five different input conditions. Rev. A | Page 4 of 20 Document Outline Features Application General Description Functional Block Diagram Table of Contents Revision History Specifications Absolute Maximum Ratings Thermal Data Thermal Characterization ESD Caution Pin Configuration and Function Descriptions Signal Mnemonics Typical Performance Characteristics Theory of Operation Overview Analog Amplifier Troubleshooting Channels Timing Signals Timing Notes Applications Information Control Register Bit Maps Timing Diagrams Outline Dimensions Ordering Guide
