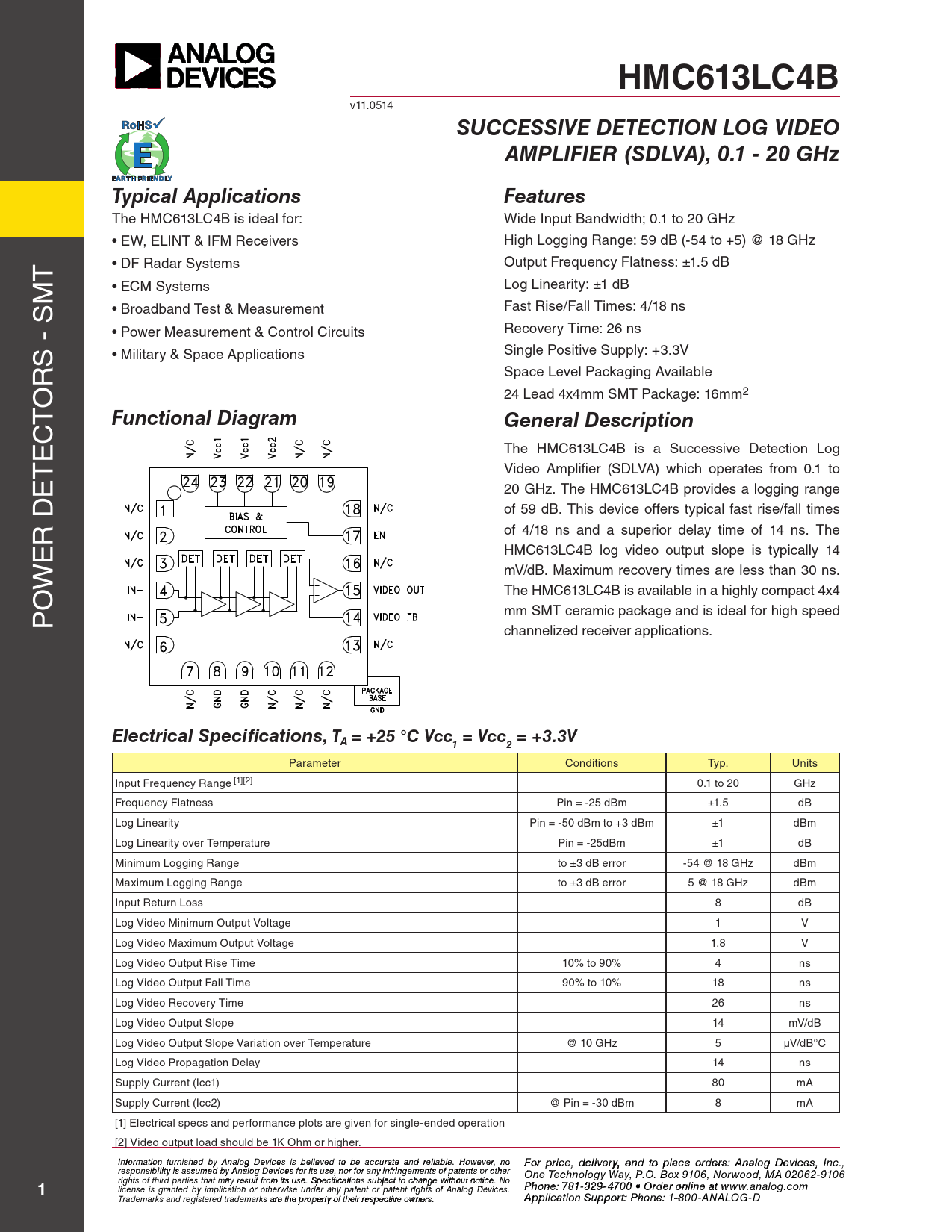

HMC613LC4B
v11.0514
SUCCESSIVE DETECTION LOG VIDEO AMPLIFIER (SDLVA), 0.1 - 20 GHz Typical Applications Features
The HMC613LC4B is ideal for: Wide Input Bandwidth; 0.1 to 20 GHz • EW, ELINT & IFM Receivers High Logging Range: 59 dB (-54 to +5) @ 18 GHz T • DF Radar Systems Output Frequency Flatness: ±1.5 dB M • ECM Systems Log Linearity: ±1 dB S • Broadband Test & Measurement Fast Rise/Fal Times: 4/18 ns - Recovery Time: 26 ns • Power Measurement & Control Circuits Single Positive Supply: +3.3V • Military & Space Applications RS Space Level Packaging Available O 24 Lead 4x4mm SMT Package: 16mm2 T
Functional Diagram
C
General Description
E The HMC613LC4B is a Successive Detection Log T Video Amplifier (SDLVA) which operates from 0.1 to E 20 GHz. The HMC613LC4B provides a logging range D of 59 dB. This device offers typical fast rise/fall times R of 4/18 ns and a superior delay time of 14 ns. The E HMC613LC4B log video output slope is typical y 14 W mV/dB. Maximum recovery times are less than 30 ns. O The HMC613LC4B is available in a highly compact 4x4 P mm SMT ceramic package and is ideal for high speed channelized receiver applications.
Electrical Specifications, TA = +25 °C Vcc = Vcc = +3.3V 1 2
Parameter Conditions Typ. Units Input Frequency Range [1][2] 0.1 to 20 GHz Frequency Flatness Pin = -25 dBm ±1.5 dB Log Linearity Pin = -50 dBm to +3 dBm ±1 dBm Log Linearity over Temperature Pin = -25dBm ±1 dB Minimum Logging Range to ±3 dB error -54 @ 18 GHz dBm Maximum Logging Range to ±3 dB error 5 @ 18 GHz dBm Input Return Loss 8 dB Log Video Minimum Output Voltage 1 V Log Video Maximum Output Voltage 1.8 V Log Video Output Rise Time 10% to 90% 4 ns Log Video Output Fall Time 90% to 10% 18 ns Log Video Recovery Time 26 ns Log Video Output Slope 14 mV/dB Log Video Output Slope Variation over Temperature @ 10 GHz 5 µV/dB°C Log Video Propagation Delay 14 ns Supply Current (Icc1) 80 mA Supply Current (Icc2) @ Pin = -30 dBm 8 mA [1] Electrical specs and performance plots are given for single-ended operation [2] Video output load should be 1K Ohm or higher. I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com Application Support: Phon Trademarks and registered trademarks are the property of their respective owners. e: 978-250-334 A 3 o pplic r a atio pp n S s u @ p h por ittti : Pte ho.c n o e m : 1-800-ANALOG-D
