Datasheet AD8317 (Analog Devices) - 5
| Fabricante | Analog Devices |
| Descripción | 1 MHz to 10 GHz, 55 dB Log Detector/Controller |
| Páginas / Página | 19 / 5 — Data Sheet. AD8317. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. … |
| Revisión | D |
| Formato / tamaño de archivo | PDF / 1.2 Mb |
| Idioma del documento | Inglés |
Data Sheet. AD8317. ABSOLUTE MAXIMUM RATINGS Table 2. Parameter Rating. ESD CAUTION
Línea de modelo para esta hoja de datos
Versión de texto del documento

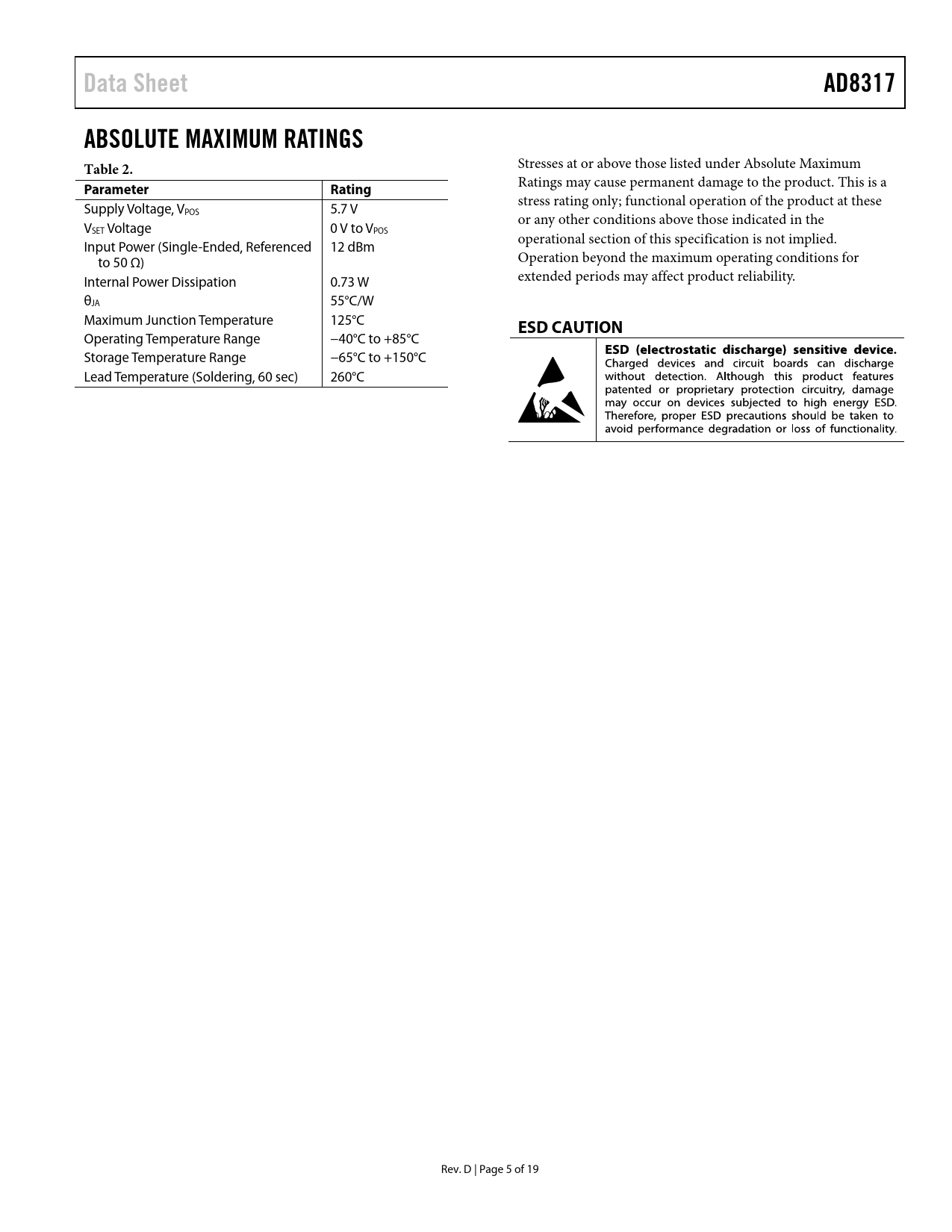

Data Sheet AD8317 ABSOLUTE MAXIMUM RATINGS Table 2.
Stresses at or above those listed under Absolute Maximum Ratings may cause permanent damage to the product. This is a
Parameter Rating
stress rating only; functional operation of the product at these Supply Voltage, VPOS 5.7 V or any other conditions above those indicated in the VSET Voltage 0 V to VPOS operational section of this specification is not implied. Input Power (Single-Ended, Referenced 12 dBm to 50 Ω) Operation beyond the maximum operating conditions for Internal Power Dissipation 0.73 W extended periods may affect product reliability. θJA 55°C/W Maximum Junction Temperature 125°C
ESD CAUTION
Operating Temperature Range −40°C to +85°C Storage Temperature Range −65°C to +150°C Lead Temperature (Soldering, 60 sec) 260°C Rev. D | Page 5 of 19 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION USING THE AD8317 BASIC CONNECTIONS INPUT SIGNAL COUPLING OUTPUT INTERFACE SETPOINT INTERFACE TEMPERATURE COMPENSATION OF OUTPUT VOLTAGE MEASUREMENT MODE SETTING THE OUTPUT SLOPE IN MEASUREMENT MODE CONTROLLER MODE OUTPUT FILTERING OPERATION BEYOND 8 GHz EVALUATION BOARD DIE INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
