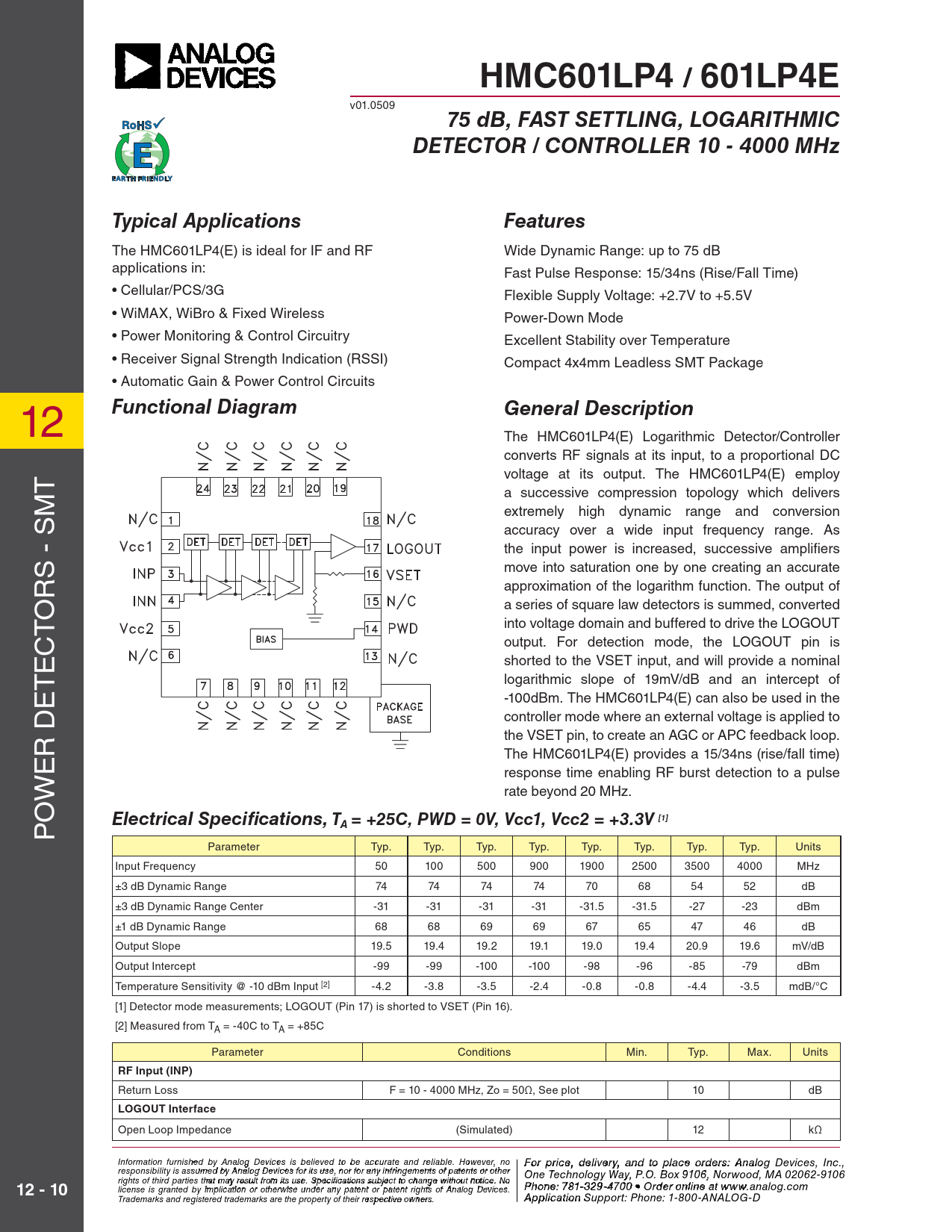

HMC601LP4 / 601LP4E
v01.0509
75 dB, FAST SETTLING, LOGARITHMIC DETECTOR / CONTROLLER 10 - 4000 MHz Typical Applications Features
The HMC601LP4(E) is ideal for IF and RF Wide Dynamic Range: up to 75 dB applications in: Fast Pulse Response: 15/34ns (Rise/Fall Time) • Cellular/PCS/3G Flexible Supply Voltage: +2.7V to +5.5V • WiMAX, WiBro & Fixed Wireless Power-Down Mode • Power Monitoring & Control Circuitry Excellent Stability over Temperature • Receiver Signal Strength Indication (RSSI) Compact 4x4mm Leadless SMT Package • Automatic Gain & Power Control Circuits 12
Functional Diagram General Description
The HMC601LP4(E) Logarithmic Detector/Controller converts RF signals at its input, to a proportional DC T voltage at its output. The HMC601LP4(E) employ a successive compression topology which delivers extremely high dynamic range and conversion accuracy over a wide input frequency range. As the input power is increased, successive amplifi ers S - SM move into saturation one by one creating an accurate R approximation of the logarithm function. The output of O a series of square law detectors is summed, converted T into voltage domain and buffered to drive the LOGOUT C output. For detection mode, the LOGOUT pin is E shorted to the VSET input, and will provide a nominal T logarithmic slope of 19mV/dB and an intercept of E -100dBm. The HMC601LP4(E) can also be used in the controller mode where an external voltage is applied to the VSET pin, to create an AGC or APC feedback loop. R D The HMC601LP4(E) provides a 15/34ns (rise/fall time) E response time enabling RF burst detection to a pulse W rate beyond 20 MHz. O
Electrical Specifi cations,
P
TA = +25C, PWD = 0V, Vcc1, Vcc2 = +3.3V [1]
Parameter Typ. Typ. Typ. Typ. Typ. Typ. Typ. Typ. Units Input Frequency 50 100 500 900 1900 2500 3500 4000 MHz ±3 dB Dynamic Range 74 74 74 74 70 68 54 52 dB ±3 dB Dynamic Range Center -31 -31 -31 -31 -31.5 -31.5 -27 -23 dBm ±1 dB Dynamic Range 68 68 69 69 67 65 47 46 dB Output Slope 19.5 19.4 19.2 19.1 19.0 19.4 20.9 19.6 mV/dB Output Intercept -99 -99 -100 -100 -98 -96 -85 -79 dBm Temperature Sensitivity @ -10 dBm Input [2] -4.2 -3.8 -3.5 -2.4 -0.8 -0.8 -4.4 -3.5 mdB/°C [1] Detector mode measurements; LOGOUT (Pin 17) is shorted to VSET (Pin 16). [2] Measured from TA = -40C to TA = +85C Parameter Conditions Min. Typ. Max. Units
RF Input (INP)
Return Loss F = 10 - 4000 MHz, Zo = 50Ω, See plot 10 dB
LOGOUT Interface
Open Loop Impedance (Simulated) 12 kΩ Information furnis F heod r pri by An ce, de alog Devi lcievs eir s y b , a eliev nd to pla ed to be accu ce o rate anrder d relia sbl, pl e. H ease co owever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 20 Alpha Road, Chelmsford, MA 01824 Phone: 978 rights of third parties that may result from its use. Specifications subject to change without notice. No Ph - o 25 ne 0 : 7 -3 81- 3 3 4 29 3 F -470 ax: 978 0 • Orde - r o 25 nlin 0- e a3 t 373
