Datasheet ADRF5547 (Analog Devices) - 3
| Fabricante | Analog Devices |
| Descripción | Dual-Channel, 3.7 GHz to 5.3 GHz, Receiver Front End |
| Páginas / Página | 15 / 3 — Data Sheet. ADRF5547. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1 … |
| Revisión | A |
| Formato / tamaño de archivo | PDF / 321 Kb |
| Idioma del documento | Inglés |

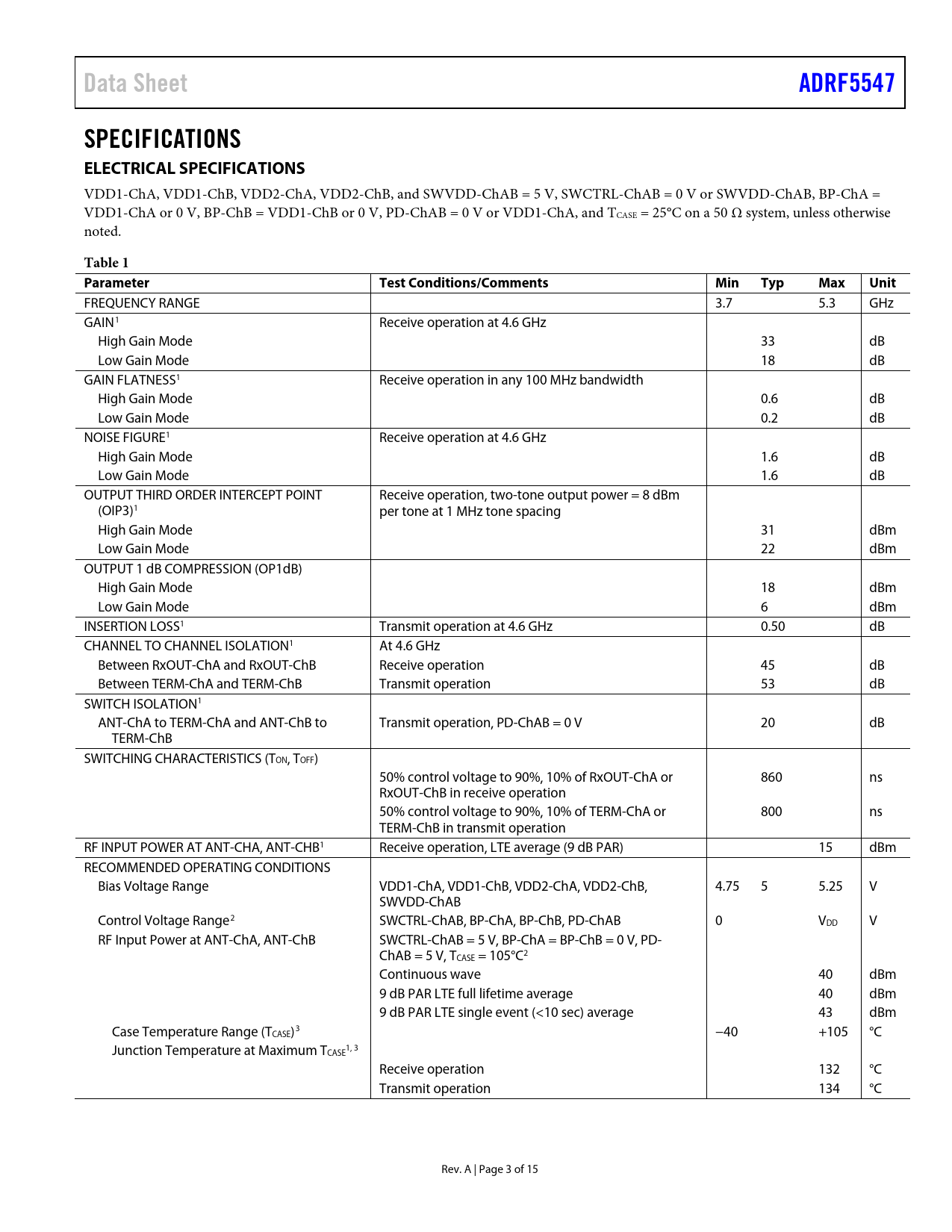

Data Sheet. ADRF5547. SPECIFICATIONS ELECTRICAL SPECIFICATIONS. Table 1 Parameter. Test Conditions/Comments. Min. Typ. Max. Unit
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4 link to page 4
Data Sheet ADRF5547 SPECIFICATIONS ELECTRICAL SPECIFICATIONS
VDD1-ChA, VDD1-ChB, VDD2-ChA, VDD2-ChB, and SWVDD-ChAB = 5 V, SWCTRL-ChAB = 0 V or SWVDD-ChAB, BP-ChA = VDD1-ChA or 0 V, BP-ChB = VDD1-ChB or 0 V, PD-ChAB = 0 V or VDD1-ChA, and TCASE = 25°C on a 50 Ω system, unless otherwise noted.
Table 1 Parameter Test Conditions/Comments Min Typ Max Unit
FREQUENCY RANGE 3.7 5.3 GHz GAIN1 Receive operation at 4.6 GHz High Gain Mode 33 dB Low Gain Mode 18 dB GAIN FLATNESS1 Receive operation in any 100 MHz bandwidth High Gain Mode 0.6 dB Low Gain Mode 0.2 dB NOISE FIGURE1 Receive operation at 4.6 GHz High Gain Mode 1.6 dB Low Gain Mode 1.6 dB OUTPUT THIRD ORDER INTERCEPT POINT Receive operation, two-tone output power = 8 dBm (OIP3)1 per tone at 1 MHz tone spacing High Gain Mode 31 dBm Low Gain Mode 22 dBm OUTPUT 1 dB COMPRESSION (OP1dB) High Gain Mode 18 dBm Low Gain Mode 6 dBm INSERTION LOSS1 Transmit operation at 4.6 GHz 0.50 dB CHANNEL TO CHANNEL ISOLATION1 At 4.6 GHz Between RxOUT-ChA and RxOUT-ChB Receive operation 45 dB Between TERM-ChA and TERM-ChB Transmit operation 53 dB SWITCH ISOLATION1 ANT-ChA to TERM-ChA and ANT-ChB to Transmit operation, PD-ChAB = 0 V 20 dB TERM-ChB SWITCHING CHARACTERISTICS (TON, TOFF) 50% control voltage to 90%, 10% of RxOUT-ChA or 860 ns RxOUT-ChB in receive operation 50% control voltage to 90%, 10% of TERM-ChA or 800 ns TERM-ChB in transmit operation RF INPUT POWER AT ANT-CHA, ANT-CHB1 Receive operation, LTE average (9 dB PAR) 15 dBm RECOMMENDED OPERATING CONDITIONS Bias Voltage Range VDD1-ChA, VDD1-ChB, VDD2-ChA, VDD2-ChB, 4.75 5 5.25 V SWVDD-ChAB Control Voltage Range2 SWCTRL-ChAB, BP-ChA, BP-ChB, PD-ChAB 0 VDD V RF Input Power at ANT-ChA, ANT-ChB SWCTRL-ChAB = 5 V, BP-ChA = BP-ChB = 0 V, PD- ChAB = 5 V, TCASE = 105°C2 Continuous wave 40 dBm 9 dB PAR LTE full lifetime average 40 dBm 9 dB PAR LTE single event (<10 sec) average 43 dBm Case Temperature Range (TCASE)3 −40 +105 °C Junction Temperature at Maximum T 1, 3 CASE Receive operation 132 °C Transmit operation 134 °C Rev. A | Page 3 of 15 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS RECEIVE OPERATION, HIGH GAIN MODE RECEIVE OPERATION, LOW GAIN MODE TRANSMIT OPERATION THEORY OF OPERATION SIGNAL PATH SELECT Receive Operation BIASING SEQUENCE APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
