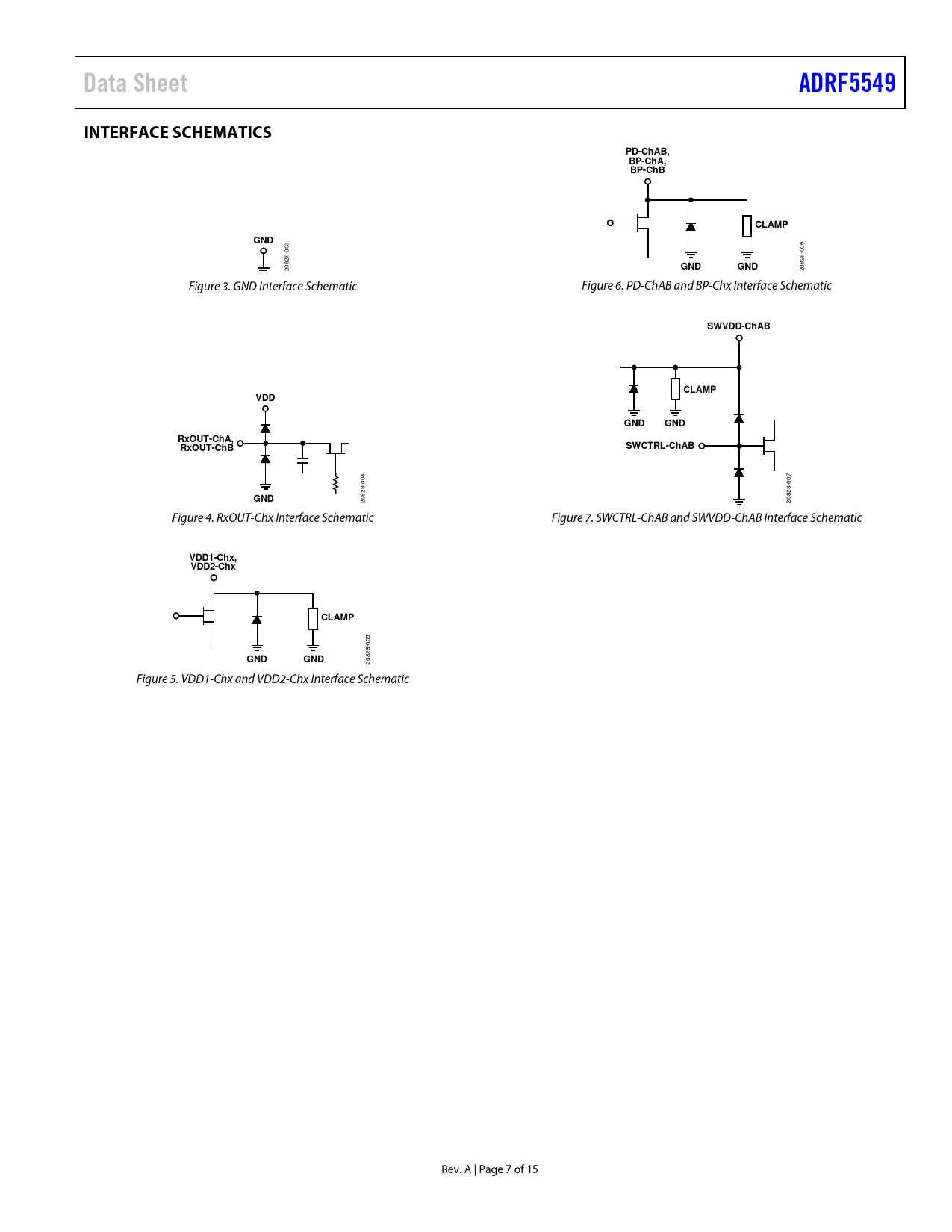

Data Sheet. ADRF5549. INTERFACE SCHEMATICS. PD-ChAB,. BP-ChA,. BP-ChB. CLAMP. GND. SWVDD-ChAB. VDD. RxOUT-ChA,. RxOUT-ChB. SWCTRL-ChAB. VDD1-Chx,

Data Sheet ADRF5549 INTERFACE SCHEMATICS PD-ChAB, BP-ChA, BP-ChB CLAMP GND SWVDD-ChAB VDD RxOUT-ChA, RxOUT-ChB SWCTRL-ChAB VDD1-Chx,

Línea de modelo para esta hoja de datos

Versión de texto del documento

Data Sheet ADRF5549 INTERFACE SCHEMATICS PD-ChAB, BP-ChA, BP-ChB CLAMP GND
003 006 20828-
GND GND
20828- Figure 3. GND Interface Schematic Figure 6. PD-ChAB and BP-Chx Interface Schematic
SWVDD-ChAB CLAMP VDD GND GND RxOUT-ChA, RxOUT-ChB SWCTRL-ChAB
004 007
GND
20828- 20828- Figure 4. RxOUT-Chx Interface Schematic Figure 7. SWCTRL-ChAB and SWVDD-ChAB Interface Schematic
VDD1-Chx, VDD2-Chx CLAMP
005
GND GND
20828- Figure 5. VDD1-Chx and VDD2-Chx Interface Schematic Rev. A | Page 7 of 15 Document Outline FEATURES APPLICATIONS GENERAL DESCRIPTION FUNCTIONAL BLOCK DIAGRAM TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS RECEIVE OPERATION High Gain Mode Low Gain Mode TRANSMIT OPERATION THEORY OF OPERATION SIGNAL PATH SELECT Receive Operation BIASING SEQUENCE APPLICATIONS INFORMATION OUTLINE DIMENSIONS ORDERING GUIDE
