Datasheet HMC7054 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | Ka-Band HPA |
| Páginas / Página | 8 / 1 — HMC7054. Ka-Band HPa. Typical applications. General description. … |
| Formato / tamaño de archivo | PDF / 283 Kb |
| Idioma del documento | Inglés |
HMC7054. Ka-Band HPa. Typical applications. General description. Features. Functional Block diagram. THERM. PAD. RF INPUT. RF OUTPUT
Línea de modelo para esta hoja de datos
Versión de texto del documento

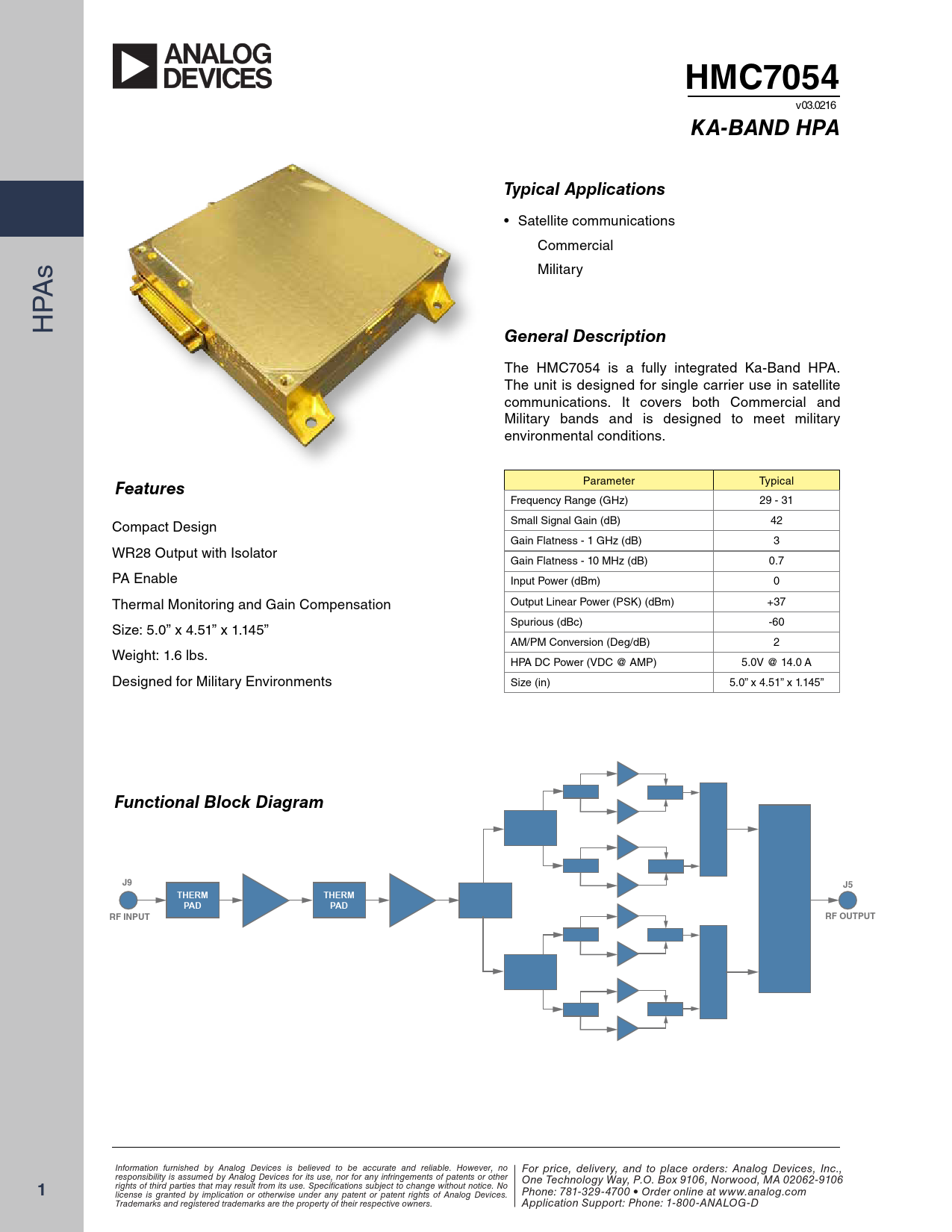

HMC7054
v03.0216
Ka-Band HPa Typical applications
• Satellite communications Commercial s Military PA H
General description
The HMC7054 is a ful y integrated Ka-Band HPA. The unit is designed for single carrier use in satel ite communications. It covers both Commercial and Military bands and is designed to meet military environmental conditions.
Features
Parameter Typical Frequency Range (GHz) 29 - 31 Compact Design Small Signal Gain (dB) 42 Gain Flatness - 1 GHz (dB) 3 WR28 Output with Isolator Gain Flatness - 10 MHz (dB) 0.7 PA Enable Input Power (dBm) 0 Thermal Monitoring and Gain Compensation Output Linear Power (PSK) (dBm) +37 Size: 5.0” x 4.51” x 1.145” Spurious (dBc) -60 AM/PM Conversion (Deg/dB) 2 Weight: 1.6 lbs. HPA DC Power (VDC @ AMP) 5.0V @ 14.0 A Designed for Military Environments Size (in) 5.0” x 4.51” x 1.145”
Functional Block diagram J9 J5 THERM THERM PAD PAD RF INPUT RF OUTPUT
Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
1
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Phone: 781-329-4700 • Order online at www.analog.com Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D Document Outline Features Functional Block Diagram Electrical Specifications Small Signal Gain Output P1dB & PAE Saturated Output Power Linear Power (SRG) IP3 Absolute Maximum Ratings Outline Drawing Table 1. Absolute Maximum Ratings Table 2. J1 HPA Connector Pin Out Table 3. J2 BUC Connector Pin Out
