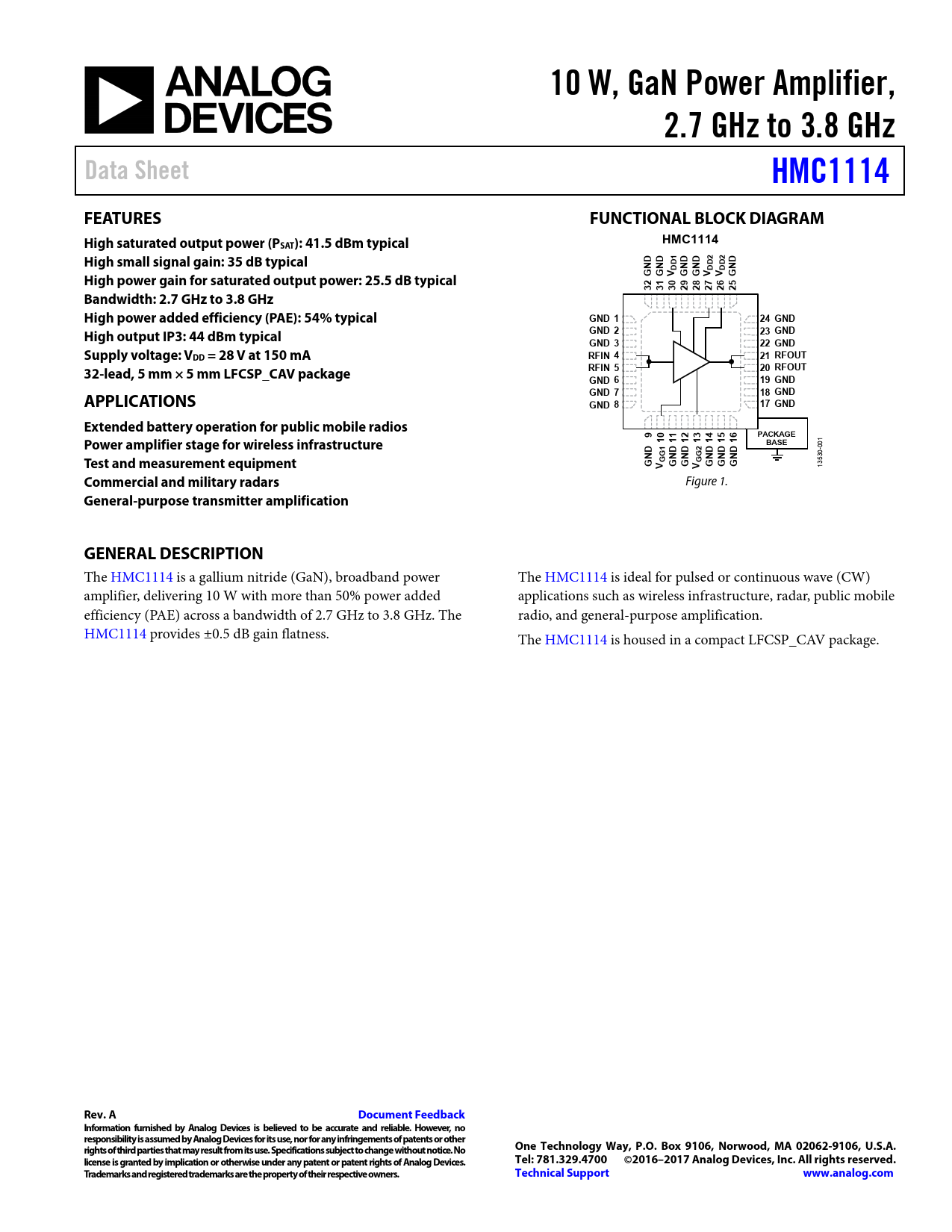

10 W, GaN Power Amplifier, 2.7 GHz to 3.8 GHz Data Sheet HMC1114 FEATURES FUNCTIONAL BLOCK DIAGRAM High saturated output power (P HMC1114 SAT): 41.5 dBm typical High small signal gain: 35 dB typical ND ND ND ND ND High power gain for saturated output power: 25.5 dB typical G G V DD1 G G V DD2 V DD2 G 32 31 30 29 28 27 26 25 Bandwidth: 2.7 GHz to 3.8 GHz High power added efficiency (PAE): 54% typical GND 1 24 GND High output IP3: 44 dBm typical GND 2 23 GND GND 3 22 GND Supply voltage: VDD = 28 V at 150 mA RFIN 4 21 RFOUT 32-lead, 5 mm × 5 mm LFCSP_CAV package RFIN 5 20 RFOUT GND 6 19 GND APPLICATIONS GND 7 18 GND GND 8 17 GND Extended battery operation for public mobile radios 9 PACKAGE Power amplifier stage for wireless infrastructure 10 11 12 13 14 15 16 BASE
001
Test and measurement equipment ND ND ND ND ND ND G V GG1 G G V GG2 G G G
13530-
Commercial and military radars
Figure 1.
General-purpose transmitter amplification GENERAL DESCRIPTION
The HMC1114 is a gallium nitride (GaN), broadband power The HMC1114 is ideal for pulsed or continuous wave (CW) amplifier, delivering 10 W with more than 50% power added applications such as wireless infrastructure, radar, public mobile efficiency (PAE) across a bandwidth of 2.7 GHz to 3.8 GHz. The radio, and general-purpose amplification. HMC1114 provides ±0.5 dB gain flatness. The HMC1114 is housed in a compact LFCSP_CAV package.
Rev. A Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. No One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. Tel: 781.329.4700 ©2016–2017 Analog Devices, Inc. All rights reserved. license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
