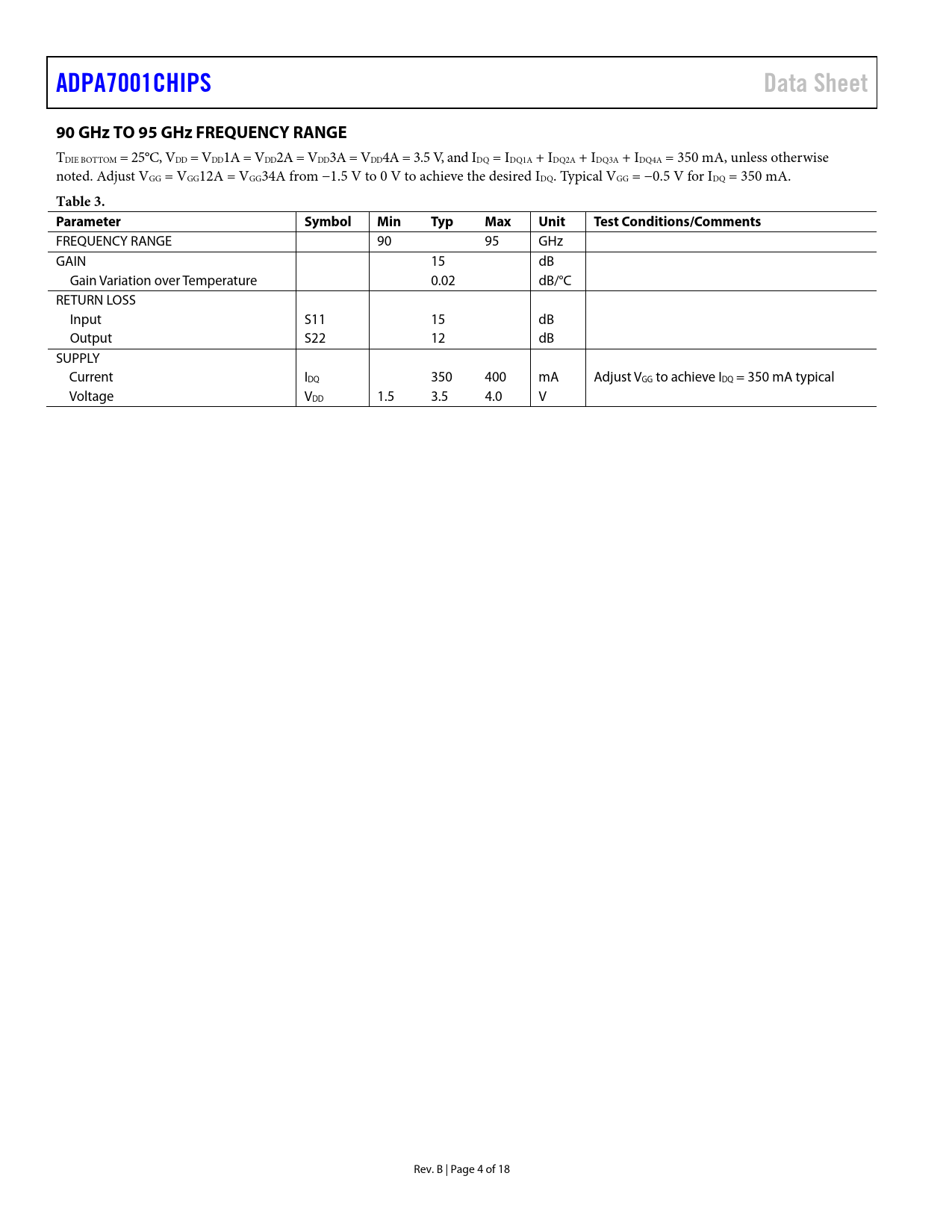

ADPA7001CHIPS Data Sheet 90 GHz TO 95 GHz FREQUENCY RANGE
TDIE BOTTOM = 25°C, VDD = VDD1A = VDD2A = VDD3A = VDD4A = 3.5 V, and IDQ = IDQ1A + IDQ2A + IDQ3A + IDQ4A = 350 mA, unless otherwise noted. Adjust VGG = VGG12A = VGG34A from −1.5 V to 0 V to achieve the desired IDQ. Typical VGG = −0.5 V for IDQ = 350 mA.
Table 3. Parameter Symbol Min Typ Max Unit Test Conditions/Comments
FREQUENCY RANGE 90 95 GHz GAIN 15 dB Gain Variation over Temperature 0.02 dB/°C RETURN LOSS Input S11 15 dB Output S22 12 dB SUPPLY Current IDQ 350 400 mA Adjust VGG to achieve IDQ = 350 mA typical Voltage VDD 1.5 3.5 4.0 V Rev. B | Page 4 of 18 Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION REVISION HISTORY SPECIFICATIONS 50 GHz TO 70 GHz FREQUENCY RANGE 70 GHz TO 90 GHz FREQUENCY RANGE 90 GHz TO 95 GHz FREQUENCY RANGE ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION MOUNTING AND BONDING TECHNIQUES FOR MILLIMETERWAVE GaAs MMICS Handling Precautions Mounting Wire Bonding TYPICAL APPLICATION CIRCUIT ASSEMBLY DIAGRAM OUTLINE DIMENSIONS ORDERING GUIDE
