Datasheet ADPA1105 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | 46 dBm (40 W), 0.9 GHz to 1.6 GHz, GaN Power Amplifier |
| Páginas / Página | 16 / 1 — 46 dBm (40 W), 0.9 GHz to 1.6 GHz,. GaN Power Amplifier. Data Sheet. … |
| Formato / tamaño de archivo | PDF / 719 Kb |
| Idioma del documento | Inglés |

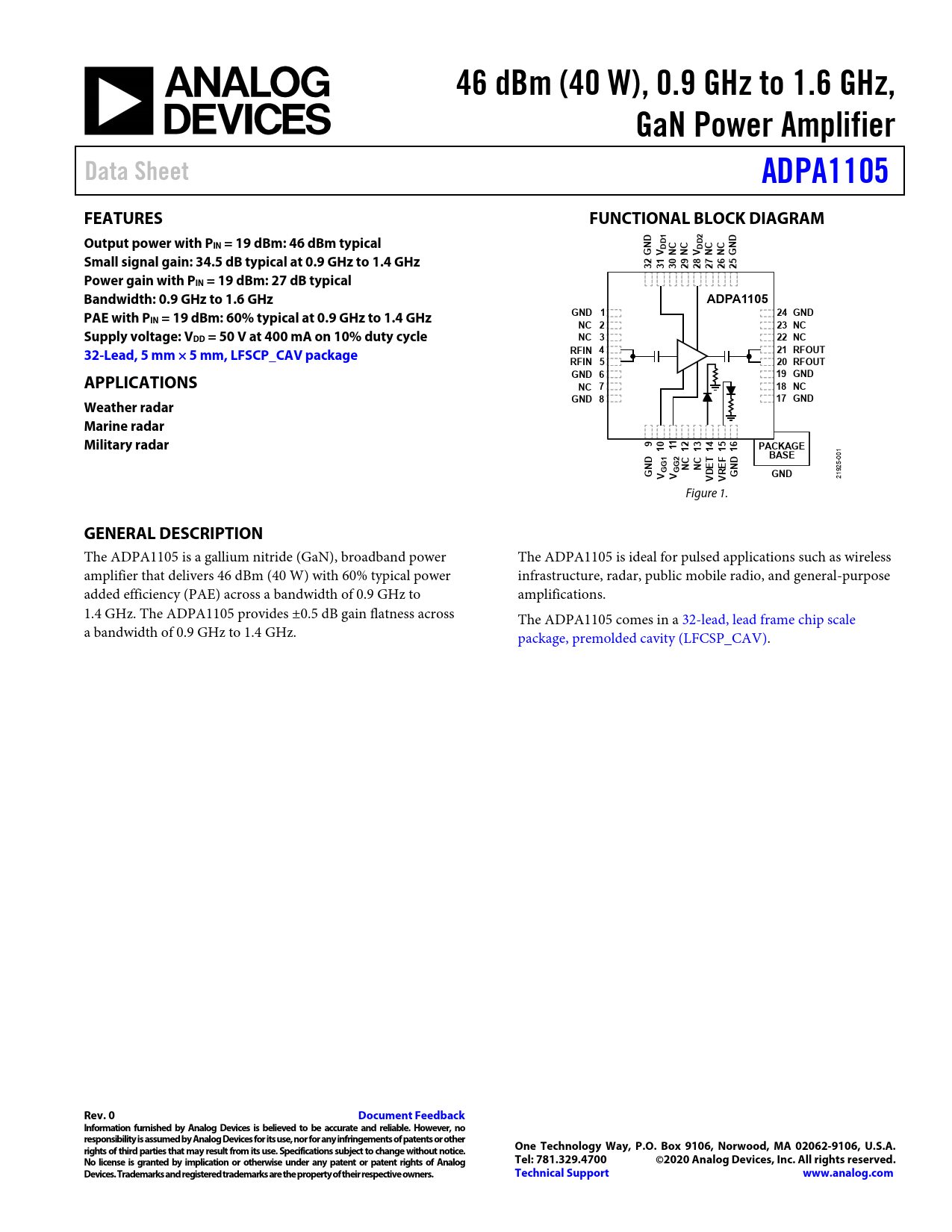

46 dBm (40 W), 0.9 GHz to 1.6 GHz,. GaN Power Amplifier. Data Sheet. ADPA1105. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 16 link to page 16 link to page 16
46 dBm (40 W), 0.9 GHz to 1.6 GHz, GaN Power Amplifier Data Sheet ADPA1105 FEATURES FUNCTIONAL BLOCK DIAGRAM 1 2 D D Output power with PIN = 19 dBm: 46 dBm typical DD DD GN V NC NC V NC NC GN Small signal gain: 34.5 dB typical at 0.9 GHz to 1.4 GHz 32 31 30 29 28 27 26 25 Power gain with PIN = 19 dBm: 27 dB typical Bandwidth: 0.9 GHz to 1.6 GHz ADPA1105 GND 1 24 GND PAE with PIN = 19 dBm: 60% typical at 0.9 GHz to 1.4 GHz NC 2 23 NC Supply voltage: VDD = 50 V at 400 mA on 10% duty cycle NC 3 22 NC RFIN 4 21 RFOUT 32-Lead, 5 mm × 5 mm, LFSCP_CAV package RFIN 5 20 RFOUT GND 6 19 GND APPLICATIONS NC 7 18 NC GND 8 17 GND Weather radar Marine radar Military radar 9 10 11 12 13 14 15 16 PACKAGE D T F D BASE
001
NC NC
25-
GN GG1 GG2 V V DE RE V V GN GND
219 Figure 1.
GENERAL DESCRIPTION
The ADPA1105 is a gallium nitride (GaN), broadband power The ADPA1105 is ideal for pulsed applications such as wireless amplifier that delivers 46 dBm (40 W) with 60% typical power infrastructure, radar, public mobile radio, and general-purpose added efficiency (PAE) across a bandwidth of 0.9 GHz to amplifications. 1.4 GHz. The ADPA1105 provides ±0.5 dB gain flatness across The ADPA1105 comes in a 32-lead, lead frame chip scale a bandwidth of 0.9 GHz to 1.4 GHz. package, premolded cavity (LFCSP_CAV).
Rev. 0 Document Feedback Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications subject to change without notice. One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A. No license is granted by implication or otherwise under any patent or patent rights of Analog Tel: 781.329.4700 ©2020 Analog Devices, Inc. All rights reserved. Devices. Trademarks and registered trademarks are the property of their respective owners. Technical Support www.analog.com
Document Outline FEATURES APPLICATIONS FUNCTIONAL BLOCK DIAGRAM GENERAL DESCRIPTION TABLE OF CONTENTS REVISION HISTORY SPECIFICATIONS ELECTRICAL SPECIFICATIONS ABSOLUTE MAXIMUM RATINGS THERMAL RESISTANCE ELECTROSTATIC DISCHARGE (ESD) RATINGS ESD Ratings for ADPA1105 ESD CAUTION PIN CONFIGURATION AND FUNCTION DESCRIPTIONS INTERFACE SCHEMATICS TYPICAL PERFORMANCE CHARACTERISTICS THEORY OF OPERATION APPLICATIONS INFORMATION BASIC CONNECTIONS THERMAL MANAGEMENT OUTLINE DIMENSIONS ORDERING GUIDE
