HMC907APM5E. GaAs pHEMT MMIC. POWER AMPLIFIER, 0.2 - 22 GHz
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC907APM5E
v02.0418

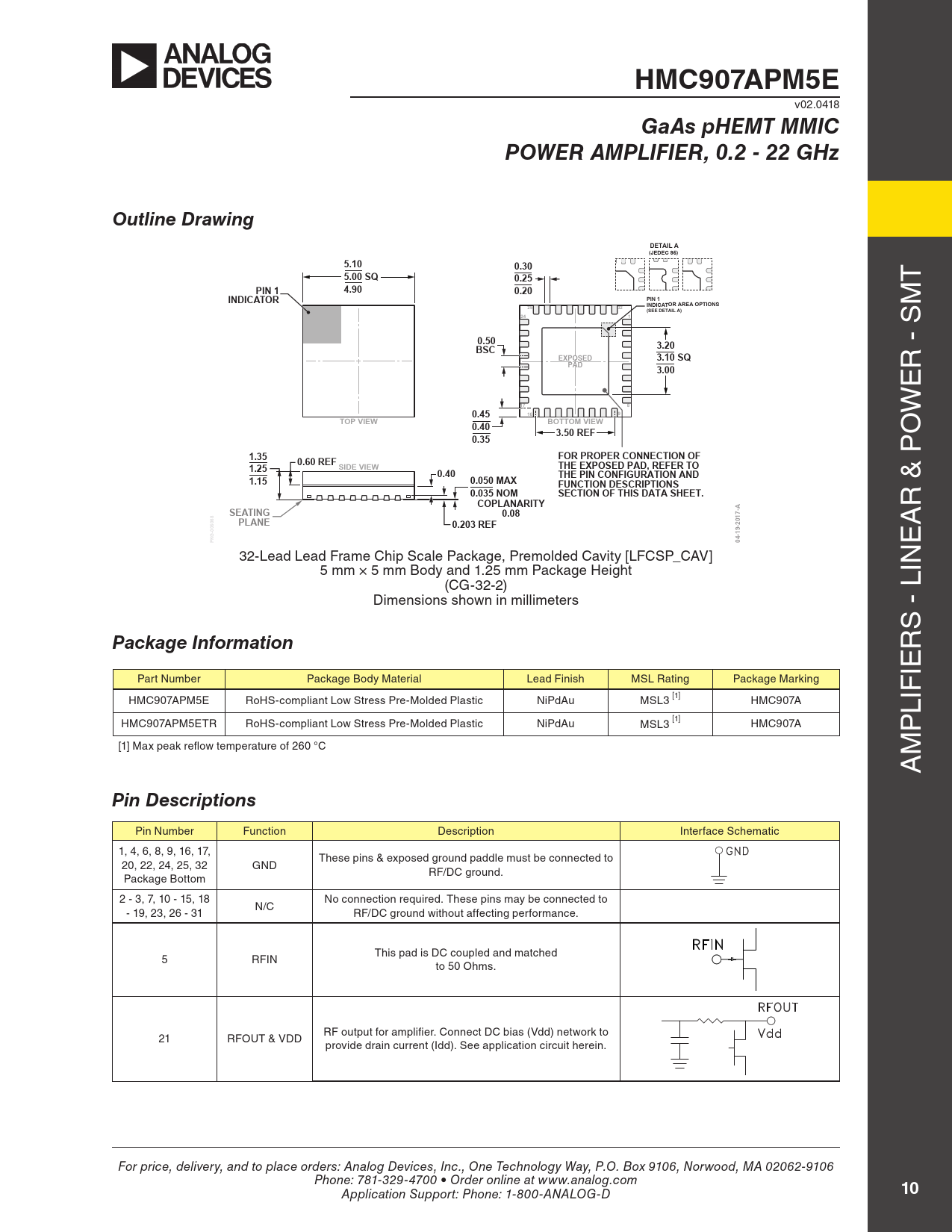

GaAs pHEMT MMIC POWER AMPLIFIER, 0.2 - 22 GHz 32-Lead Lead Frame Chip Scale Package, Premolded Cavity [LFCSP_CAV] 5 x 5 mm Body and 1.25 mm Package Height (CG-32-2) Outline Drawing Dimensions shown in millimeters DETAIL A (JEDEC 95) 5.10 0.30 5.00 SQ 0.25
T
PIN 1 4.90 0.20 INDICATOR PIN 1 25 32 INDICATOR AREA OPTIONS
M
(SEE DETAIL A) 24 1 0.50 BSC 3.20 EXPOSED 3.10 SQ PAD 3.00
R - S E
17 8 16 9 0.45
W
TOP VIEW BOTTOM VIEW 0.40 3.50 REF
O
0.35 1.35 FOR PROPER CONNECTION OF 0.60 REF SIDE VIEW THE EXPOSED PAD, REFER TO 1.25 0.40 THE PIN CONFIGURATION AND 1.15 0.050 MAX FUNCTION DESCRIPTIONS 0.035 NOM SECTION OF THIS DATA SHEET. COPLANARITY
R & P
SEATING 0.08 PLANE 0.203 REF
A
PKG-005068 04-19-2017-A
E 32-Lead Lead Frame Chip Scale Package, Premolded Cavity [LFCSP_CAV] 5 mm × 5 mm Body and 1.25 mm Package Height IN (CG-32-2) Dimensions shown in mil imeters S - L
Package Information
R IE Part Number Package Body Material Lead Finish MSL Rating Package Marking HMC907APM5E RoHS-compliant Low Stress Pre-Molded Plastic NiPdAu MSL3 [1] HMC907A LIF HMC907APM5ETR RoHS-compliant Low Stress Pre-Molded Plastic NiPdAu MSL3 [1] HMC907A P [1] Max peak reflow temperature of 260 °C M A
Pin Descriptions
Pin Number Function Description Interface Schematic 1, 4, 6, 8, 9, 16, 17, These pins & exposed ground paddle must be connected to 20, 22, 24, 25, 32 GND RF/DC ground. Package Bottom 2 - 3, 7, 10 - 15, 18 No connection required. These pins may be connected to N/C - 19, 23, 26 - 31 RF/DC ground without affecting performance. This pad is DC coupled and matched 5 RFIN to 50 Ohms. RF output for amplifier. Connect DC bias (Vdd) network to 21 RFOUT & VDD provide drain current (Idd). See application circuit herein. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
10
