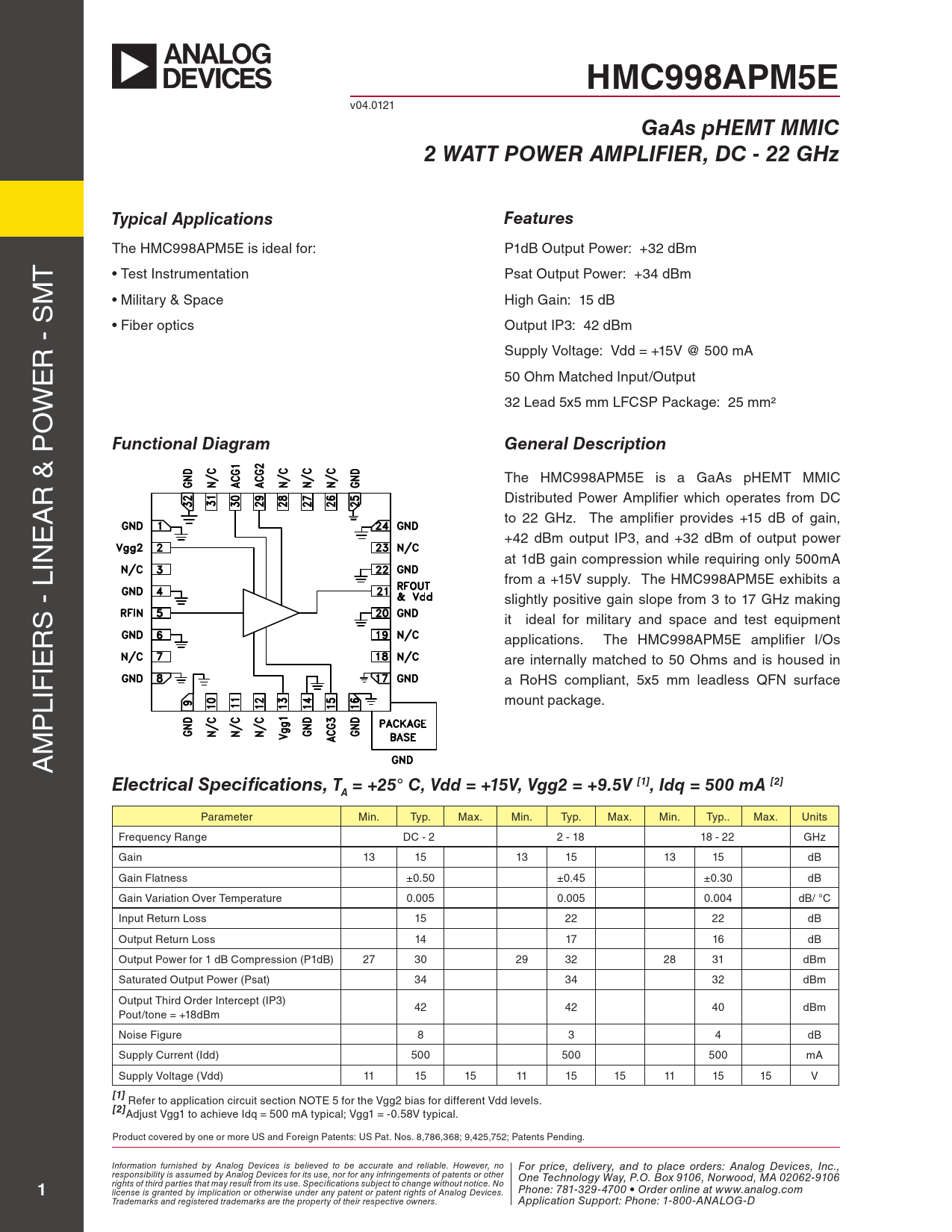

HMC998APM5E. GaAs pHEMT MMIC. 2 WATT POWER AMPLIFIER, DC - 22 GHz. Typical Applications. Features. Functional Diagram

Datasheet HMC998APM5E Analog Devices

Línea de modelo para esta hoja de datos

Versión de texto del documento

HMC998APM5E
v04.0121
GaAs pHEMT MMIC 2 WATT POWER AMPLIFIER, DC - 22 GHz Typical Applications Features
The HmC998Apm5e is ideal for: p1dB output power: +32 dBm T • Test instrumentation psat output power: +34 dBm m s • military & space High Gain: 15 dB • fiber optics output ip3: 42 dBm r - supply Voltage: Vdd = +15V @ 500 mA e 50 ohm matched input/output w 32 lead 5x5 mm lfCsp package: 25 mm² o p
Functional Diagram General Description
The HmC998Apm5e is a GaAs pHemT mmiC r & Distributed power Amplifier which operates from DC A e to 22 GHz. The amplifier provides +15 dB of gain, +42 dBm output ip3, and +32 dBm of output power at 1dB gain compression while requiring only 500mA lin from a +15V supply. The HmC998Apm5e exhibits a slightly positive gain slope from 3 to 17 GHz making s - it ideal for military and space and test equipment r applications. The HmC998Apm5e amplifier i/os ie are internal y matched to 50 ohms and is housed in a roHs compliant, 5x5 mm leadless Qfn surface lif mount package. p m A
Electrical Specifications, T = +25° C, Vdd = +15V, Vgg2 = +9.5V [1], Idq = 500 mA [2] A
parameter min. Typ. max. min. Typ. max. min. Typ.. max. Units frequency range DC - 2 2 - 18 18 - 22 GHz Gain 13 15 13 15 13 15 dB Gain flatness ±0.50 ±0.45 ±0.30 dB Gain Variation over Temperature 0.005 0.005 0.004 dB/ °C input return loss 15 22 22 dB output return loss 14 17 16 dB output power for 1 dB Compression (p1dB) 27 30 29 32 28 31 dBm saturated output power (psat) 34 34 32 dBm output Third order intercept (ip3) 42 42 40 dBm pout/tone = +18dBm noise figure 8 3 4 dB supply Current (idd) 500 500 500 mA supply Voltage (Vdd) 11 15 15 11 15 15 11 15 15 V
[1]
refer to application circuit section noTe 5 for the Vgg2 bias for different Vdd levels.
[2]
Adjust Vgg1 to achieve idq = 500 mA typical; Vgg1 = -0.58V typical. product covered by one or more Us and foreign patents: Us pat. nos. 8,786,368; 9,425,752; patents pending. Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
