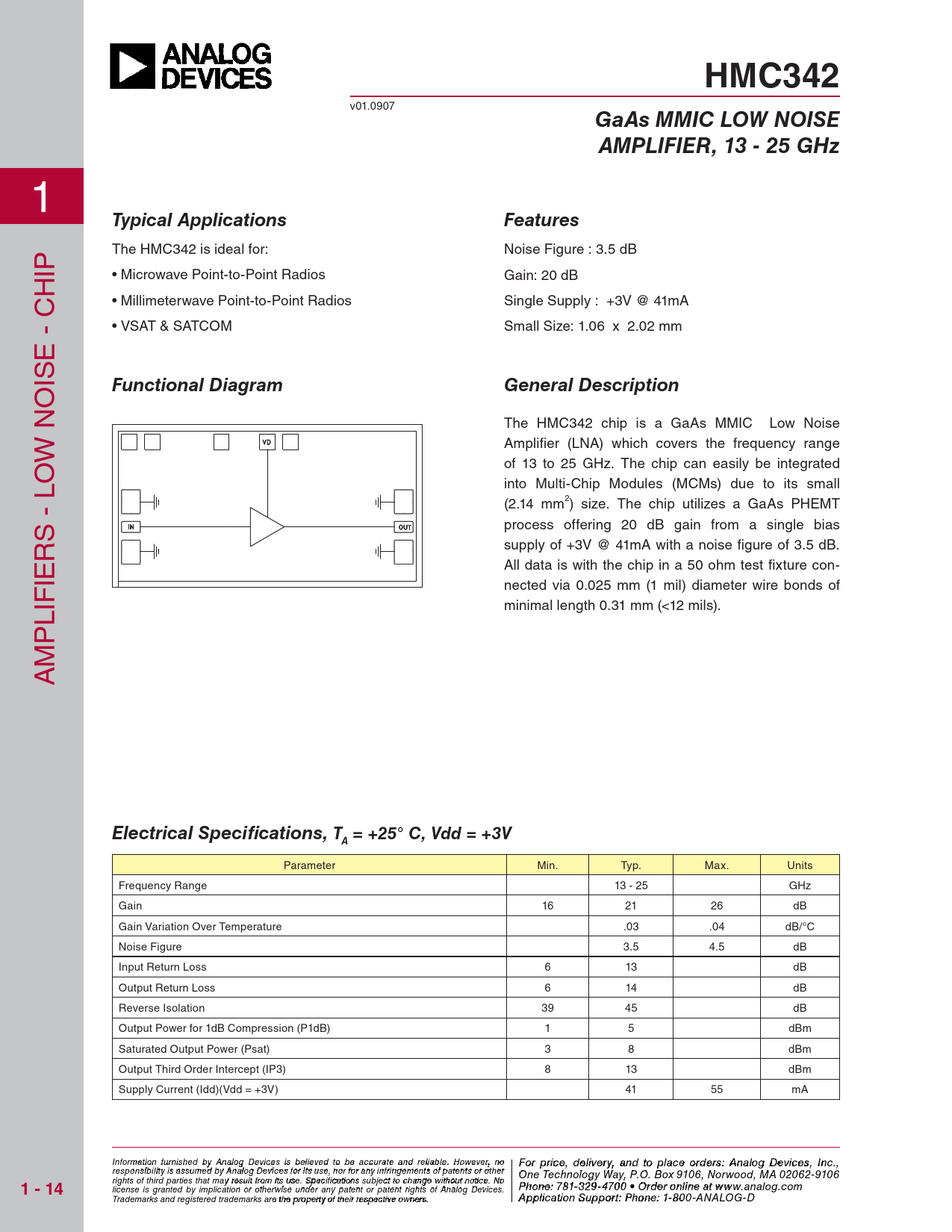

HMC342. GaAs MMIC LOW NOISE. AMPLIFIER, 13 - 25 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC342
v01.0907
GaAs MMIC LOW NOISE AMPLIFIER, 13 - 25 GHz
1
Typical Applications Features
The HMC342 is ideal for: Noise Figure : 3.5 dB IP • Microwave Point-to-Point Radios Gain: 20 dB H • Millimeterwave Point-to-Point Radios Single Supply : +3V @ 41mA • VSAT & SATCOM Small Size: 1.06 x 2.02 mm E - C IS
Functional Diagram General Description
The HMC342 chip is a GaAs MMIC Low Noise W NO Amplifi er (LNA) which covers the frequency range O of 13 to 25 GHz. The chip can easily be integrated into Multi-Chip Modules (MCMs) due to its small (2.14 mm2) size. The chip utilizes a GaAs PHEMT S - L process offering 20 dB gain from a single bias R supply of +3V @ 41mA with a noise fi gure of 3.5 dB. All data is with the chip in a 50 ohm test fi xture con- IE nected via 0.025 mm (1 mil) diameter wire bonds of IF L minimal length 0.31 mm (<12 mils). P M A
Electrical Specifi cations, T = +25° C, Vdd = +3V A
Parameter Min. Typ. Max. Units Frequency Range 13 - 25 GHz Gain 16 21 26 dB Gain Variation Over Temperature .03 .04 dB/°C Noise Figure 3.5 4.5 dB Input Return Loss 6 13 dB Output Return Loss 6 14 dB Reverse Isolation 39 45 dB Output Power for 1dB Compression (P1dB) 1 5 dBm Saturated Output Power (Psat) 3 8 dBm Output Third Order Intercept (IP3) 8 13 dBm Supply Current (Idd)(Vdd = +3V) 41 55 mA Infor F m o ati r pr on fu irc n e, de ished b l y iv Anealroyg a D n evid to p ces is b lealic ev e o ed t rde o be ras cc: H urat it e taitne M d relia icr ble. ow Ho a we vve C er, n o o rpFo o rr aptriio c n e , 2 de0li A verlpha R y, and t o o ad, C place h o e rdlm er s s: fo A rd, MA 01 nalog Devic 8 e 2 s, 4Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
1 - 14
Phone: 978-250-3343 Fax: 978-250-3373 O Ph rde one r O : 7 n 81- - 3 li 2 n 9-e a 470 t ww 0 • O w rd . e hi r ott nlite n .c e a o t m license is granted by implication or otherwise under any patent or patent rights of Analog Devices. www.analog.com Application Support: Pho Trademarks and registered trademarks are the property of their respective owners. ne: 978-250-33 A 4 p 3 o plicat r app ion Sups@ por h t it : Ptite hon .c e o : 1 m -800-ANALOG-D
