Datasheet HMC519 (Analog Devices) - 4
| Fabricante | Analog Devices |
| Descripción | GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 18 - 32 GHz |
| Páginas / Página | 6 / 4 — HMC519. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER, 18 - 32 GHz. Absolute … |
| Formato / tamaño de archivo | PDF / 616 Kb |
| Idioma del documento | Inglés |
HMC519. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER, 18 - 32 GHz. Absolute Maximum Ratings. Typical Supply Current vs. Vdd
Línea de modelo para esta hoja de datos
Versión de texto del documento

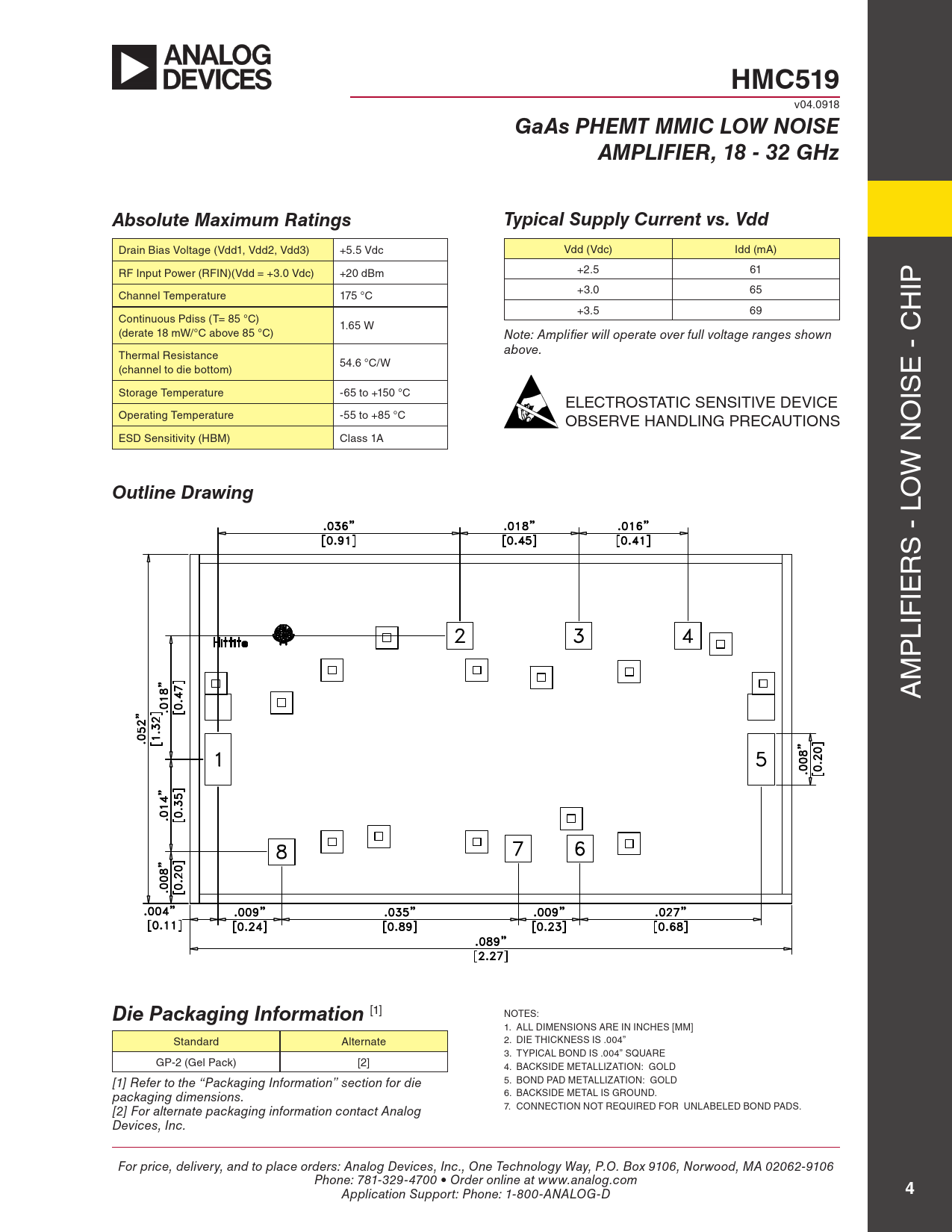

HMC519
v04.0918
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 18 - 32 GHz Absolute Maximum Ratings Typical Supply Current vs. Vdd
Drain Bias Voltage (Vdd1, Vdd2, Vdd3) +5.5 Vdc Vdd (Vdc) Idd (mA) RF Input Power (RFIN)(Vdd = +3.0 Vdc) +20 dBm +2.5 61 +3.0 65 IP Channel Temperature 175 °C +3.5 69 H Continuous Pdiss (T= 85 °C) 1.65 W (derate 18 mW/°C above 85 °C) Note: Amplifier will operate over full voltage ranges shown Thermal Resistance above. 54.6 °C/W (channel to die bottom) E - C Storage Temperature -65 to +150 °C IS ELECTROSTATIC SENSITIVE DEVICE Operating Temperature -55 to +85 °C OBSERVE HANDLING PRECAUTIONS O ESD Sensitivity (HBM) Class 1A W N
Outline Drawing
O S - L R IE LIF P M A NOTES:
Die Packaging Information
[1] 1. ALL DIMENSIONS ARE IN INCHES [MM] Standard Alternate 2. DIE THICKNESS IS .004” 3. TYPICAL BOND IS .004” SQUARE GP-2 (Gel Pack) [2] 4. BACKSIDE METALLIZATION: GOLD 5. BOND PAD METALLIZATION: GOLD [1] Refer to the “Packaging Information” section for die 6. BACKSIDE METAL IS GROUND. packaging dimensions. 7. CONNECTION NOT REQUIRED FOR UNLABELED BOND PADS. [2] For alternate packaging information contact Analog Devices, Inc. For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
4
