HMC564. GaAs PHEMT MMIC LOW NOISE. AMPLIFIER, 7 - 13.5 GHz. Pad Descriptions. Assembly Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC564
v02.0618

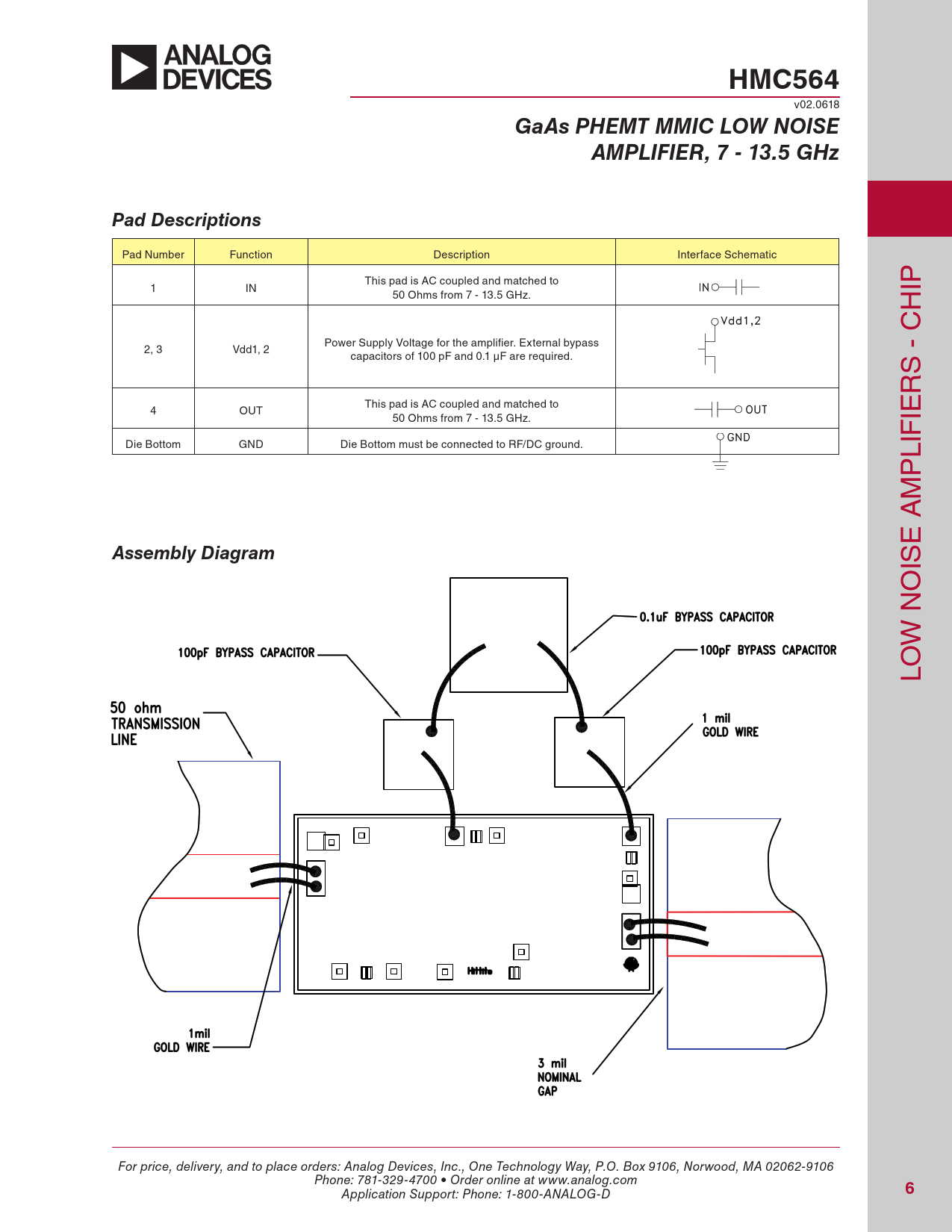

GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 7 - 13.5 GHz Pad Descriptions
Pad Number Function Description Interface Schematic This pad is AC coupled and matched to 1 IN IP 50 Ohms from 7 - 13.5 GHz. H C Power Supply Voltage for the amplifier. External bypass 2, 3 Vdd1, 2 capacitors of 100 pF and 0.1 µF are required. - S R This pad is AC coupled and matched to 4 OUT 50 Ohms from 7 - 13.5 GHz. IE Die Bottom GND Die Bottom must be connected to RF/DC ground. LIF P M A E
Assembly Diagram
IS O N W LO For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
6
v02.0618
GaAs PHEMT MMIC LOW NOISE AMPLIFIER, 7 - 13.5 GHz Pad Descriptions
Pad Number Function Description Interface Schematic This pad is AC coupled and matched to 1 IN IP 50 Ohms from 7 - 13.5 GHz. H C Power Supply Voltage for the amplifier. External bypass 2, 3 Vdd1, 2 capacitors of 100 pF and 0.1 µF are required. - S R This pad is AC coupled and matched to 4 OUT 50 Ohms from 7 - 13.5 GHz. IE Die Bottom GND Die Bottom must be connected to RF/DC ground. LIF P M A E
Assembly Diagram
IS O N W LO For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com Application Support: Phone: 1-800-ANALOG-D
6
