Datasheet HMC564LC4 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | GaAs SMT pHEMT LOW NOISE AMPLIFIER, 7 - 14 GHz |
| Páginas / Página | 7 / 1 — HMC564LC4. GaAs SMT pHEMT LOW NOISE. AMPLIFIER, 7 - 14 GHz. Typical … |
| Formato / tamaño de archivo | PDF / 1.1 Mb |
| Idioma del documento | Inglés |
HMC564LC4. GaAs SMT pHEMT LOW NOISE. AMPLIFIER, 7 - 14 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento

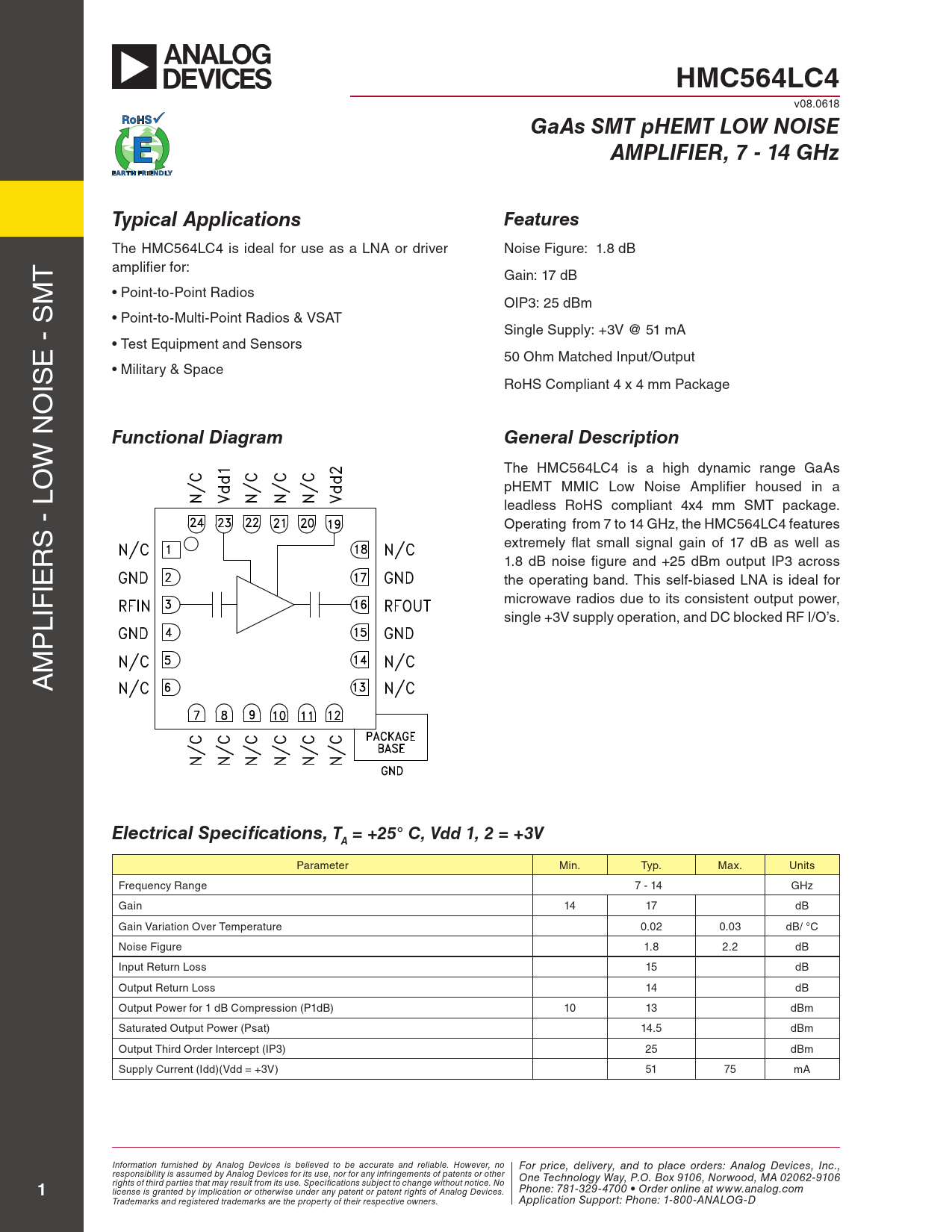

HMC564LC4
v08.0618
GaAs SMT pHEMT LOW NOISE AMPLIFIER, 7 - 14 GHz Typical Applications Features
The HMC564LC4 is ideal for use as a LNA or driver Noise Figure: 1.8 dB T amplifier for: Gain: 17 dB M • Point-to-Point Radios OIP3: 25 dBm • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 51 mA E - S • Test Equipment and Sensors 50 Ohm Matched Input/Output IS • Military & Space RoHS Compliant 4 x 4 mm Package O
Functional Diagram General Description
W N O The HMC564LC4 is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier housed in a leadless RoHS compliant 4x4 mm SMT package. S - L Operating from 7 to 14 GHz, the HMC564LC4 features R extremely flat small signal gain of 17 dB as well as 1.8 dB noise figure and +25 dBm output IP3 across IE the operating band. This self-biased LNA is ideal for microwave radios due to its consistent output power, LIF single +3V supply operation, and DC blocked RF I/O’s. P M A
Electrical Specifications, T = +25° C, Vdd 1, 2 = +3V A
Parameter Min. Typ. Max. Units Frequency Range 7 - 14 GHz Gain 14 17 dB Gain Variation Over Temperature 0.02 0.03 dB/ °C Noise Figure 1.8 2.2 dB Input Return Loss 15 dB Output Return Loss 14 dB Output Power for 1 dB Compression (P1dB) 10 13 dBm Saturated Output Power (Psat) 14.5 dBm Output Third Order Intercept (IP3) 25 dBm Supply Current (Idd)(Vdd = +3V) 51 75 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
v08.0618
GaAs SMT pHEMT LOW NOISE AMPLIFIER, 7 - 14 GHz Typical Applications Features
The HMC564LC4 is ideal for use as a LNA or driver Noise Figure: 1.8 dB T amplifier for: Gain: 17 dB M • Point-to-Point Radios OIP3: 25 dBm • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 51 mA E - S • Test Equipment and Sensors 50 Ohm Matched Input/Output IS • Military & Space RoHS Compliant 4 x 4 mm Package O
Functional Diagram General Description
W N O The HMC564LC4 is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier housed in a leadless RoHS compliant 4x4 mm SMT package. S - L Operating from 7 to 14 GHz, the HMC564LC4 features R extremely flat small signal gain of 17 dB as well as 1.8 dB noise figure and +25 dBm output IP3 across IE the operating band. This self-biased LNA is ideal for microwave radios due to its consistent output power, LIF single +3V supply operation, and DC blocked RF I/O’s. P M A
Electrical Specifications, T = +25° C, Vdd 1, 2 = +3V A
Parameter Min. Typ. Max. Units Frequency Range 7 - 14 GHz Gain 14 17 dB Gain Variation Over Temperature 0.02 0.03 dB/ °C Noise Figure 1.8 2.2 dB Input Return Loss 15 dB Output Return Loss 14 dB Output Power for 1 dB Compression (P1dB) 10 13 dBm Saturated Output Power (Psat) 14.5 dBm Output Third Order Intercept (IP3) 25 dBm Supply Current (Idd)(Vdd = +3V) 51 75 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
