Datasheet HMC565LC5 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | GaAs SMT PHEMT LOW NOISE AMPLIFIER, 6 - 20 GHz |
| Páginas / Página | 6 / 1 — HMC565LC5. GaAs SMT PHEMT LOW NOISE. AMPLIFIER, 6 - 20 GHz. Typical … |
| Formato / tamaño de archivo | PDF / 1.0 Mb |
| Idioma del documento | Inglés |
HMC565LC5. GaAs SMT PHEMT LOW NOISE. AMPLIFIER, 6 - 20 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento

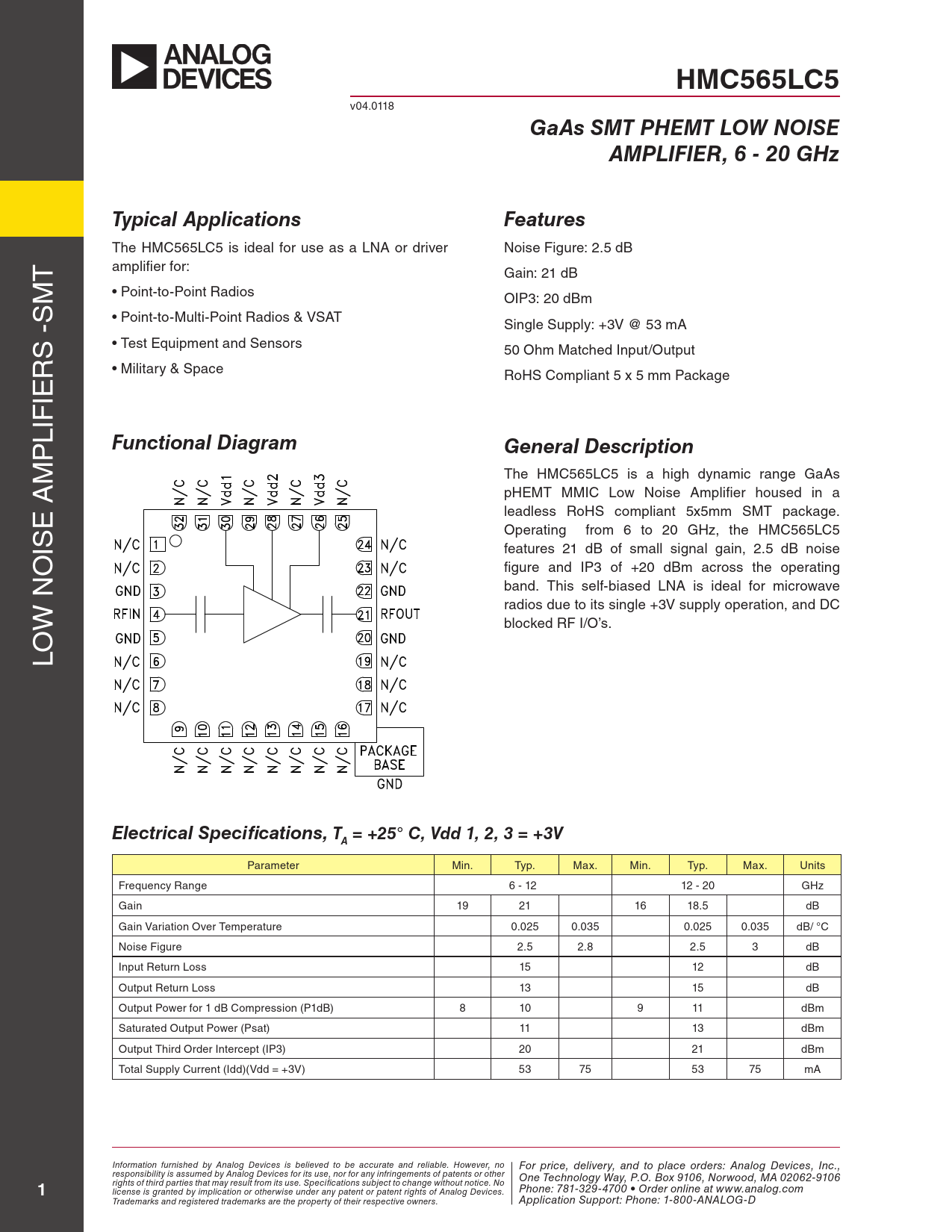

HMC565LC5
v04.0118
GaAs SMT PHEMT LOW NOISE AMPLIFIER, 6 - 20 GHz Typical Applications Features
The HMC565LC5 is ideal for use as a LNA or driver Noise Figure: 2.5 dB T amplifier for: Gain: 21 dB M • Point-to-Point Radios S OIP3: 20 dBm - • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 53 mA S • Test Equipment and Sensors 50 Ohm Matched Input/Output R • Military & Space RoHS Compliant 5 x 5 mm Package IE LIF P
Functional Diagram General Description
M The HMC565LC5 is a high dynamic range GaAs A pHEMT MMIC Low Noise Amplifier housed in a E leadless RoHS compliant 5x5mm SMT package. IS Operating from 6 to 20 GHz, the HMC565LC5 features 21 dB of small signal gain, 2.5 dB noise O figure and IP3 of +20 dBm across the operating N band. This self-biased LNA is ideal for microwave radios due to its single +3V supply operation, and DC W blocked RF I/O’s. LO
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 6 - 12 12 - 20 GHz Gain 19 21 16 18.5 dB Gain Variation Over Temperature 0.025 0.035 0.025 0.035 dB/ °C Noise Figure 2.5 2.8 2.5 3 dB Input Return Loss 15 12 dB Output Return Loss 13 15 dB Output Power for 1 dB Compression (P1dB) 8 10 9 11 dBm Saturated Output Power (Psat) 11 13 dBm Output Third Order Intercept (IP3) 20 21 dBm Total Supply Current (Idd)(Vdd = +3V) 53 75 53 75 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
v04.0118
GaAs SMT PHEMT LOW NOISE AMPLIFIER, 6 - 20 GHz Typical Applications Features
The HMC565LC5 is ideal for use as a LNA or driver Noise Figure: 2.5 dB T amplifier for: Gain: 21 dB M • Point-to-Point Radios S OIP3: 20 dBm - • Point-to-Multi-Point Radios & VSAT Single Supply: +3V @ 53 mA S • Test Equipment and Sensors 50 Ohm Matched Input/Output R • Military & Space RoHS Compliant 5 x 5 mm Package IE LIF P
Functional Diagram General Description
M The HMC565LC5 is a high dynamic range GaAs A pHEMT MMIC Low Noise Amplifier housed in a E leadless RoHS compliant 5x5mm SMT package. IS Operating from 6 to 20 GHz, the HMC565LC5 features 21 dB of small signal gain, 2.5 dB noise O figure and IP3 of +20 dBm across the operating N band. This self-biased LNA is ideal for microwave radios due to its single +3V supply operation, and DC W blocked RF I/O’s. LO
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +3V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 6 - 12 12 - 20 GHz Gain 19 21 16 18.5 dB Gain Variation Over Temperature 0.025 0.035 0.025 0.035 dB/ °C Noise Figure 2.5 2.8 2.5 3 dB Input Return Loss 15 12 dB Output Return Loss 13 15 dB Output Power for 1 dB Compression (P1dB) 8 10 9 11 dBm Saturated Output Power (Psat) 11 13 dBm Output Third Order Intercept (IP3) 20 21 dBm Total Supply Current (Idd)(Vdd = +3V) 53 75 53 75 mA Information furnished by Analog Devices is believed to be accurate and reliable. However, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
1
rights of third parties that may result from its use. Specifications subject to change without notice. No Phone: 781-329-4700 • Order online at www.analog.com license is granted by implication or otherwise under any patent or patent rights of Analog Devices. Trademarks and registered trademarks are the property of their respective owners. Application Support: Phone: 1-800-ANALOG-D
