Datasheet HMC-ALH364 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 32 GHz |
| Páginas / Página | 6 / 1 — HMC-ALH364. GaAs HEMT MMIC LOW NOISE. AMPLIFIER, 24 - 32 GHz. Typical … |
| Formato / tamaño de archivo | PDF / 261 Kb |
| Idioma del documento | Inglés |
HMC-ALH364. GaAs HEMT MMIC LOW NOISE. AMPLIFIER, 24 - 32 GHz. Typical Applications. Features. Functional Diagram
Línea de modelo para esta hoja de datos
Versión de texto del documento

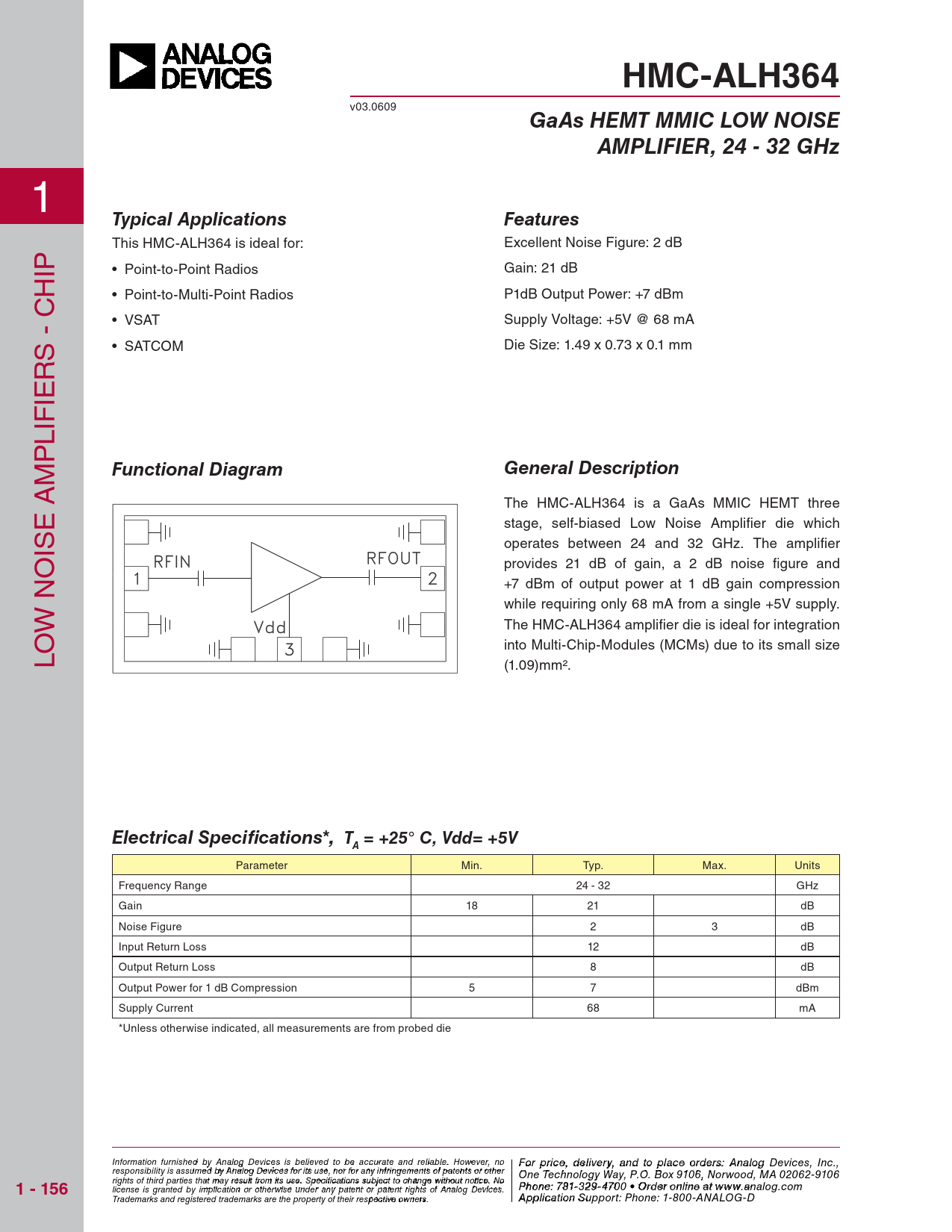

HMC-ALH364
v03.0609
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 32 GHz
1
Typical Applications Features
This HMC-ALH364 is ideal for: Excellent Noise Figure: 2 dB IP • Point-to-Point Radios Gain: 21 dB H • Point-to-Multi-Point Radios P1dB Output Power: +7 dBm C • VSAT Supply Voltage: +5V @ 68 mA - • SATCOM Die Size: 1.49 x 0.73 x 0.1 mm RS IE IF L P M
Functional Diagram General Description
A The HMC-ALH364 is a GaAs MMIC HEMT three E stage, self-biased Low Noise Amplifi er die which IS operates between 24 and 32 GHz. The amplifi er O provides 21 dB of gain, a 2 dB noise fi gure and +7 dBm of output power at 1 dB gain compression N while requiring only 68 mA from a single +5V supply. W The HMC-ALH364 amplifi er die is ideal for integration O into Multi-Chip-Modules (MCMs) due to its small size L (1.09)mm2.
Electrical Specifi cations*, T = +25° C, Vdd= +5V A
Parameter Min. Typ. Max. Units Frequency Range 24 - 32 GHz Gain 18 21 dB Noise Figure 2 3 dB Input Return Loss 12 dB Output Return Loss 8 dB Output Power for 1 dB Compression 5 7 dBm Supply Current 68 mA *Unless otherwise indicated, all measurements are from probed die Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
1 - 156
20 Alpha Road, Chelmsford, MA 01824 Phone: 978 Phon - e 25 : 7 0 81--3 32 3 9 4 - 3 F 70 ax 0 • O : 978 rder on -li25 n 0 e a - t 33 ww 73 license is granted by implication or otherwise under any patent or patent rights of Analog Devices. w.analog.com Order On Trademarks and registered trademarks are the property of their respective owners. -line at www.h A it p tpite.co licatio m n Support: Phone: 1-800-ANALOG-D
