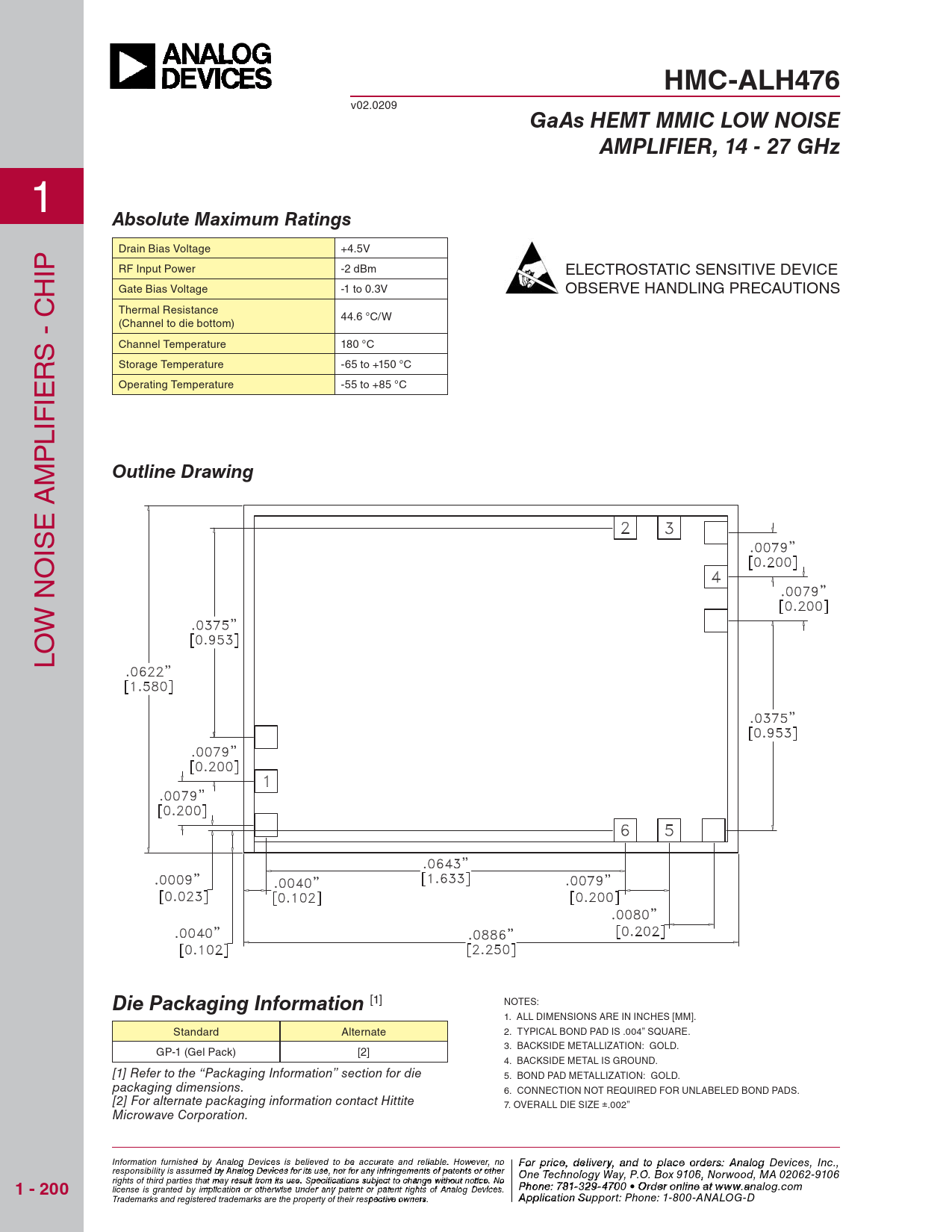

HMC-ALH476
v02.0209
GaAs HEMT MMIC LOW NOISE AMPLIFIER, 14 - 27 GHz
1
Absolute Maximum Ratings
Drain Bias Voltage +4.5V IP RF Input Power -2 dBm ELECTROSTATIC SENSITIVE DEVICE H Gate Bias Voltage -1 to 0.3V OBSERVE HANDLING PRECAUTIONS C Thermal Resistance 44.6 °C/W - (Channel to die bottom) Channel Temperature 180 °C RS Storage Temperature -65 to +150 °C Operating Temperature -55 to +85 °C IE IF L P M
Outline Drawing
A E IS O N W O L NOTES:
Die Packaging Information
[1] 1. ALL DIMENSIONS ARE IN INCHES [MM]. Standard Alternate 2. TYPICAL BOND PAD IS .004” SQUARE. 3. BACKSIDE METALLIZATION: GOLD. GP-1 (Gel Pack) [2] 4. BACKSIDE METAL IS GROUND. [1] Refer to the “Packaging Information” section for die 5. BOND PAD METALLIZATION: GOLD. packaging dimensions. 6. CONNECTION NOT REQUIRED FOR UNLABELED BOND PADS. [2] For alternate packaging information contact Hittite 7. OVERALL DIE SIZE ±.002” Microwave Corporation. Information furnish F ed obr pri y Anal ce, de og Device li s vie s r beyli, a eve nd to pla d to be accura ce o te and rder reliabl s e , pl . Ho ease co wever, no For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other ntact Hittite Microwave Corporation: One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 rights of third parties that may result from its use. Specifications subject to change without notice. No
