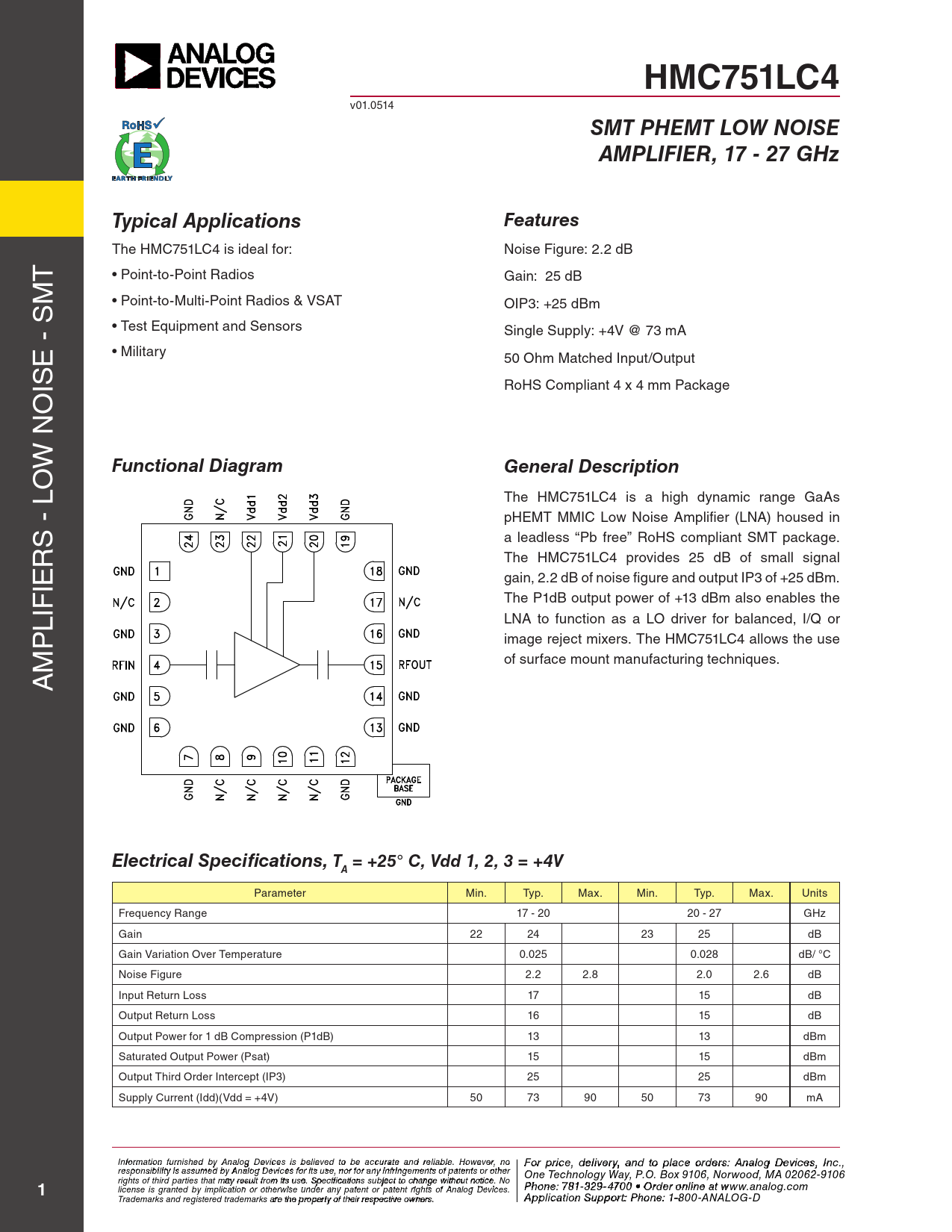

HMC751LC4. SMT pHEMT LOW NOISE. AMpLIFIER, 17 - 27 GHz. Typical Applications. Features. Functional Diagram. General Description
Línea de modelo para esta hoja de datos
Versión de texto del documento
HMC751LC4
v01.0514
SMT pHEMT LOW NOISE AMpLIFIER, 17 - 27 GHz Typical Applications Features
The HMC751LC4 is ideal for: Noise Figure: 2.2 dB T • Point-to-Point Radios Gain: 25 dB M • Point-to-Multi-Point Radios & VSAT OIP3: +25 dBm • Test Equipment and Sensors Single Supply: +4V @ 73 mA E - S • Military 50 Ohm Matched Input/Output IS RoHS Compliant 4 x 4 mm Package O W N O
Functional Diagram General Description
The HMC751LC4 is a high dynamic range GaAs pHEMT MMIC Low Noise Amplifier (LNA) housed in S - L a leadless “Pb free” RoHS compliant SMT package. R The HMC751LC4 provides 25 dB of small signal IE gain, 2.2 dB of noise figure and output IP3 of +25 dBm. The P1dB output power of +13 dBm also enables the LIF LNA to function as a LO driver for balanced, I/Q or P image reject mixers. The HMC751LC4 al ows the use M of surface mount manufacturing techniques. A
Electrical Specifications, T = +25° C, Vdd 1, 2, 3 = +4V A
Parameter Min. Typ. Max. Min. Typ. Max. Units Frequency Range 17 - 20 20 - 27 GHz Gain 22 24 23 25 dB Gain Variation Over Temperature 0.025 0.028 dB/ °C Noise Figure 2.2 2.8 2.0 2.6 dB Input Return Loss 17 15 dB Output Return Loss 16 15 dB Output Power for 1 dB Compression (P1dB) 13 13 dBm Saturated Output Power (Psat) 15 15 dBm Output Third Order Intercept (IP3) 25 25 dBm Supply Current (Idd)(Vdd = +4V) 50 73 90 50 73 90 mA I F nf o or r p mati r o in cfe ur , d nish e e l d iv b e y r A y a nalo n g d t Devi o p ces i la s c bele o ieve rd d t e o rbs e : H acc iutrtatite e M and ic reli rao bl w e. a H v o e C wever o , nrp o For price, delivery, and to place orders: Analog Devices, Inc., responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other oration, 2 Elizabeth Drive, Chelmsford, MA 01824 One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 978-250-3343 Fax: 978-250-3373 O rights of third parties that may result from its use. Specifications subject to change without notice. No rd Phoe n r O e: 7 n- 81-li 3 n 2 e a 9-4 t w 70 ww 0 • O . rdh e itt r o it nle i . n co e a m
1
license is granted by implication or otherwise under any patent or patent rights of Analog Devices. t www.analog.com Application Support: Phon Trademarks and registered trademarks are the property of their respective owners. e: 978-250-334 A 3 o pplic r a atio pp n S s u @ p h por ittti : Pte ho.c n o e m : 1-800-ANALOG-D
