HMC752LC4
v02.0618

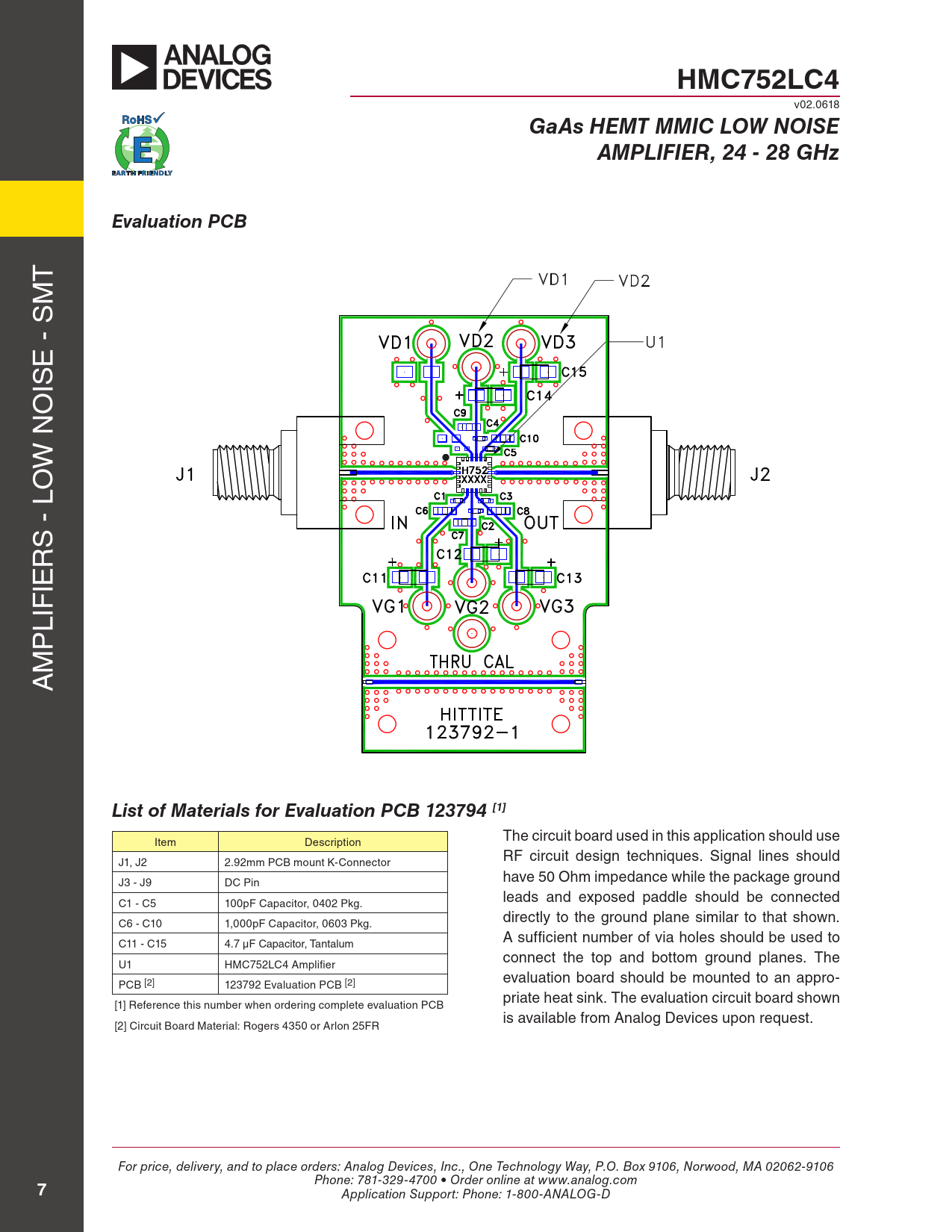

GaAs HEMT MMIC LOW NOISE AMPLIFIER, 24 - 28 GHz Evaluation PCB
T M E - S IS O W N O S - L R IE LIF P M A
List of Materials for Evaluation PCB 123794 [1]
Item Description The circuit board used in this application should use J1, J2 2.92mm PCB mount K-Connector RF circuit design techniques. Signal lines should have 50 Ohm impedance while the package ground J3 - J9 DC Pin leads and exposed paddle should be connected C1 - C5 100pF Capacitor, 0402 Pkg. directly to the ground plane similar to that shown. C6 - C10 1,000pF Capacitor, 0603 Pkg. A sufficient number of via holes should be used to C11 - C15 4.7 µF Capacitor, Tantalum connect the top and bottom ground planes. The U1 HMC752LC4 Amplifier evaluation board should be mounted to an appro- PCB [2] 123792 Evaluation PCB [2] priate heat sink. The evaluation circuit board shown [1] Reference this number when ordering complete evaluation PCB is available from Analog Devices upon request. [2] Circuit Board Material: Rogers 4350 or Arlon 25FR For price, delivery, and to place orders: Analog Devices, Inc., One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106 Phone: 781-329-4700 • Order online at www.analog.com
