Datasheet HMC753 (Analog Devices)
| Fabricante | Analog Devices |
| Descripción | 1 GHz to 11 GHz, GaAs, HEMT, MMIC Low Noise Amplifier |
| Páginas / Página | 13 / 1 — 1 GHz to 11 GHz, GaAs, HEMT,. MMIC Low Noise Amplifier. Data Sheet. … |
| Revisión | E |
| Formato / tamaño de archivo | PDF / 282 Kb |
| Idioma del documento | Inglés |
1 GHz to 11 GHz, GaAs, HEMT,. MMIC Low Noise Amplifier. Data Sheet. HMC753. FEATURES. FUNCTIONAL BLOCK DIAGRAM
Línea de modelo para esta hoja de datos
Versión de texto del documento
link to page 7 link to page 7

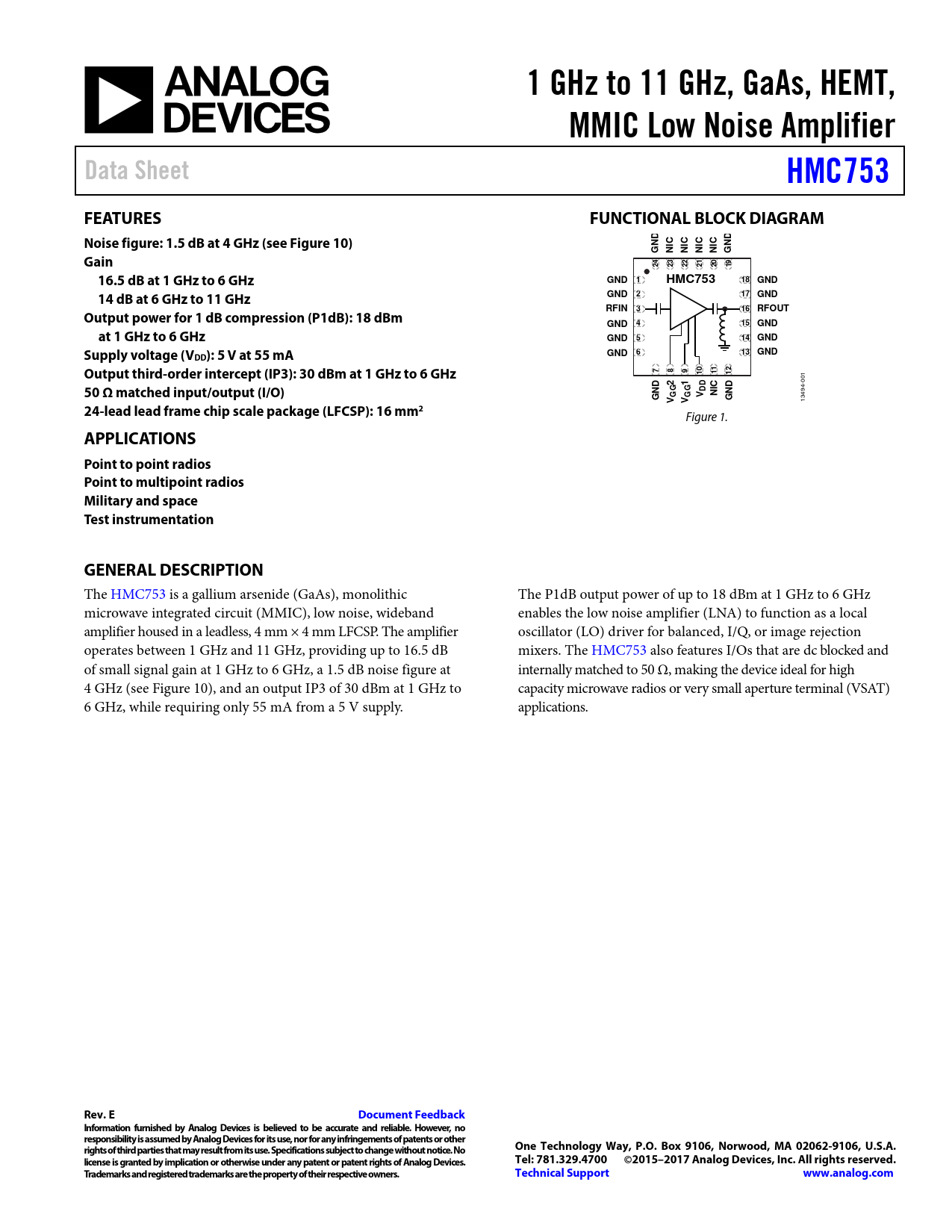

1 GHz to 11 GHz, GaAs, HEMT, MMIC Low Noise Amplifier Data Sheet HMC753 FEATURES FUNCTIONAL BLOCK DIAGRAM Noise figure: 1.5 dB at 4 GHz (see Figure 10) C C C C ND ND G NI NI NI NI G Gain 24 23 22 21 20 19 16.5 dB at 1 GHz to 6 GHz GND 1 HMC753 18 GND 14 dB at 6 GHz to 11 GHz GND 2 17 GND RFIN 3 16 RFOUT Output power for 1 dB compression (P1dB): 18 dBm GND 4 15 GND at 1 GHz to 6 GHz GND 5 14 GND Supply voltage (V GND 6 13 GND DD): 5 V at 55 mA Output third-order intercept (IP3): 30 dBm at 1 GHz to 6 GHz 7 8 9 1 10 1 12 2 1 C
001
50 Ω matched input/output (I/O) ND DD NI ND G GG GG V V V G
13494-
24-lead lead frame chip scale package (LFCSP): 16 mm2
Figure 1.
APPLICATIONS Point to point radios Point to multipoint radios Military and space Test instrumentation GENERAL DESCRIPTION
The HMC753 is a gallium arsenide (GaAs), monolithic The P1dB output power of up to 18 dBm at 1 GHz to 6 GHz microwave integrated circuit (MMIC), low noise, wideband enables the low noise amplifier (LNA) to function as a local amplifier housed in a leadless, 4 mm × 4 mm LFCSP. The amplifier oscil ator (LO) driver for balanced, I/Q, or image rejection operates between 1 GHz and 11 GHz, providing up to 16.5 dB mixers. The HMC753 also features I/Os that are dc blocked and of small signal gain at 1 GHz to 6 GHz, a 1.5 dB noise figure at internal y matched to 50 Ω, making the device ideal for high 4 GHz (see Figure 10), and an output IP3 of 30 dBm at 1 GHz to capacity microwave radios or very small aperture terminal (VSAT) 6 GHz, while requiring only 55 mA from a 5 V supply. applications.
